卡特零件查询（AP555F） 396-7154: VALVE GP-CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
591 次

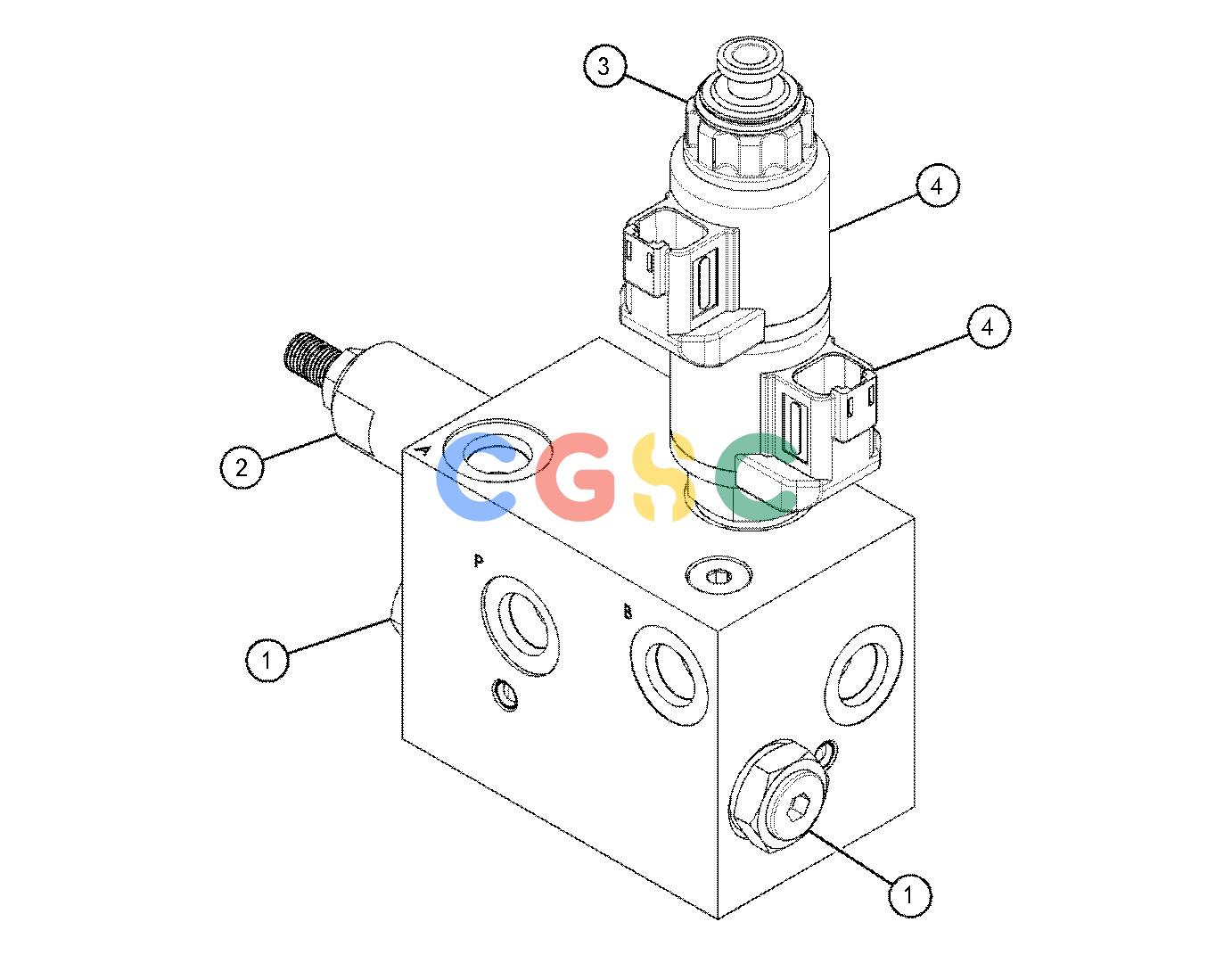

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 486-2996J | [2] | VALVE GP-CHECK | |
| 2. | 446-1395H | [1] | VALVE GP-PRESSURE REDUCING(TRUCK HITCH) | |
| 3. | 446-1393L | [1] | VALVE GP-CONTROL(AUGER HOIST RAISE, LOWER) | |
| | 446-5508 | [1] | KIT-NUT | |
| | | | (INCLUDES O-RING SEALS & NUT) |
| 4. | 446-1462 | [2] | COIL-SOLENOID | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 446-1389J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & BACKUP RING) |
| | 446-1396H | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | 446-1390L | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
