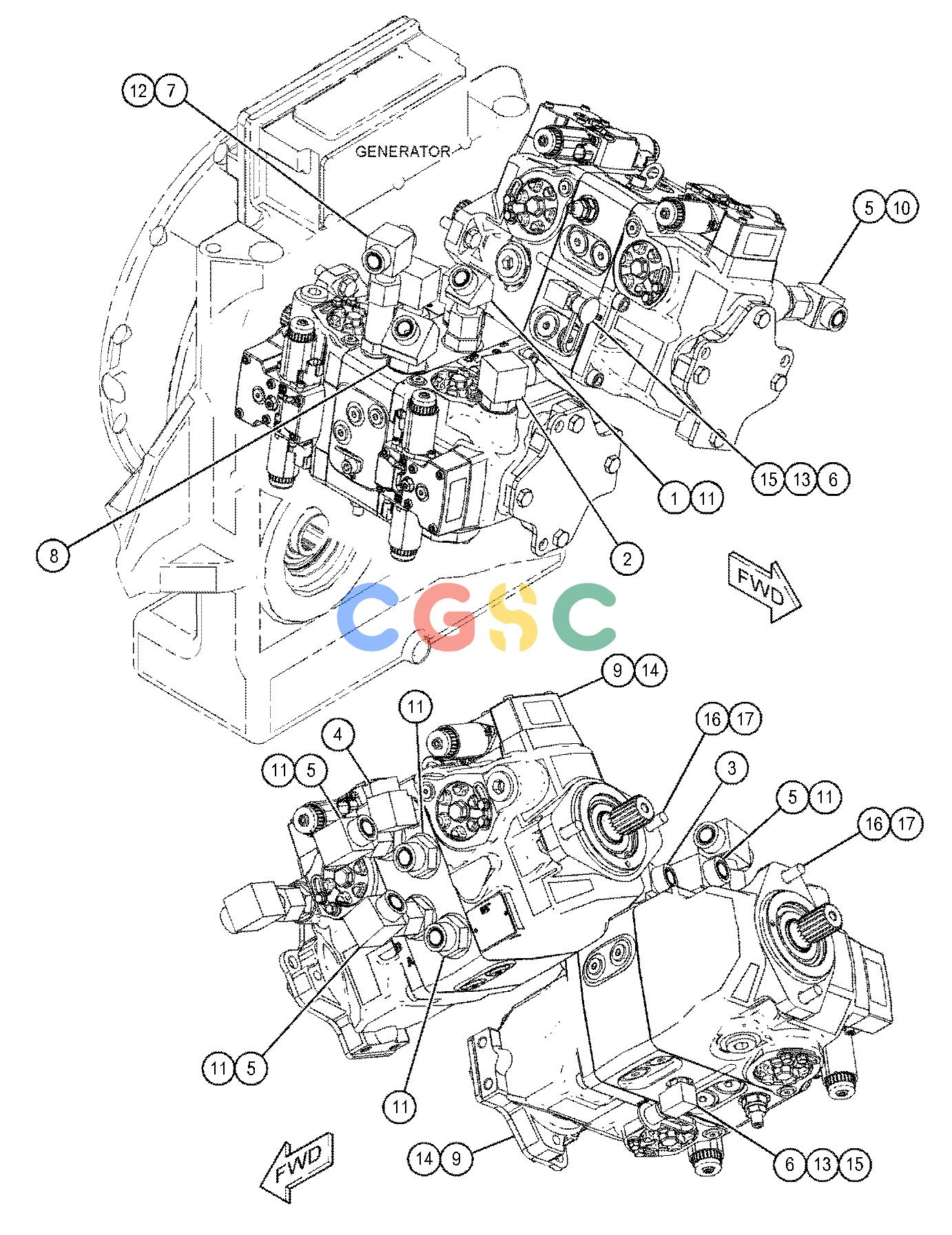

卡特零件查询（AP555F） 447-9808: PUMP & MTG GP-MATERIAL FEED

广数供应链运营团队, 17 02月, 2025，浏览： 378 次

Pos.	Part No	Qty	Parts name
1.	171-6723	[1]	ELBOW AS
	6V-9746	[1]	SEAL-O-RING
	8T-8899	[1]	ELBOW
2.	148-8347	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
3.	148-8360	[1]	ELBOW AS
	6V-9182	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
4.	148-8388	[1]	ELBOW AS
	2M-9780	[1]	SEAL-O-RING
	6V-8629	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
5.	148-8392	[4]	ELBOW AS
			(EACH INCLUDES)
	6V-9746	[1]	SEAL-O-RING
	6V-9853	[1]	ELBOW
6.	150-3065	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-0484	[1]	ELBOW
7.	150-4033	[1]	TEE AS
	6V-9746	[2]	SEAL-O-RING
	6V-9846	[1]	TEE
8.	150-4049	[1]	ELBOW AS
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
	8T-4149	[1]	ELBOW
9.	396-7169Y	[2]	PUMP GP-PISTON
10.	148-8327	[1]	CONNECTOR AS
	3D-2824	[1]	SEAL-O-RING
	6V-8637	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
11.	148-8339	[6]	CONNECTOR AS
			(EACH INCLUDES)
	6V-8716	[1]	CONNECTOR(STRAIGHT)
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
12.	150-4041	[1]	CONNECTOR AS
	2M-9780	[1]	SEAL-O-RING
	3E-7420	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
13.	164-5567	[2]	COUPLER AS-QUICK DISCONNECT(MALE)
			(EACH INCLUDES)
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
	214-7568	[1]	SEAL-O-RING
14.	1H-6227	[2]	SEAL-O-RING
15.	6V-0852	[2]	CAP-DUST
16.	8T-4184M	[4]	BOLT(M12X1.75X45-MM)
17.	8T-4223	[4]	WASHER-HARD(13.5X25.5X3-MM THK)
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
