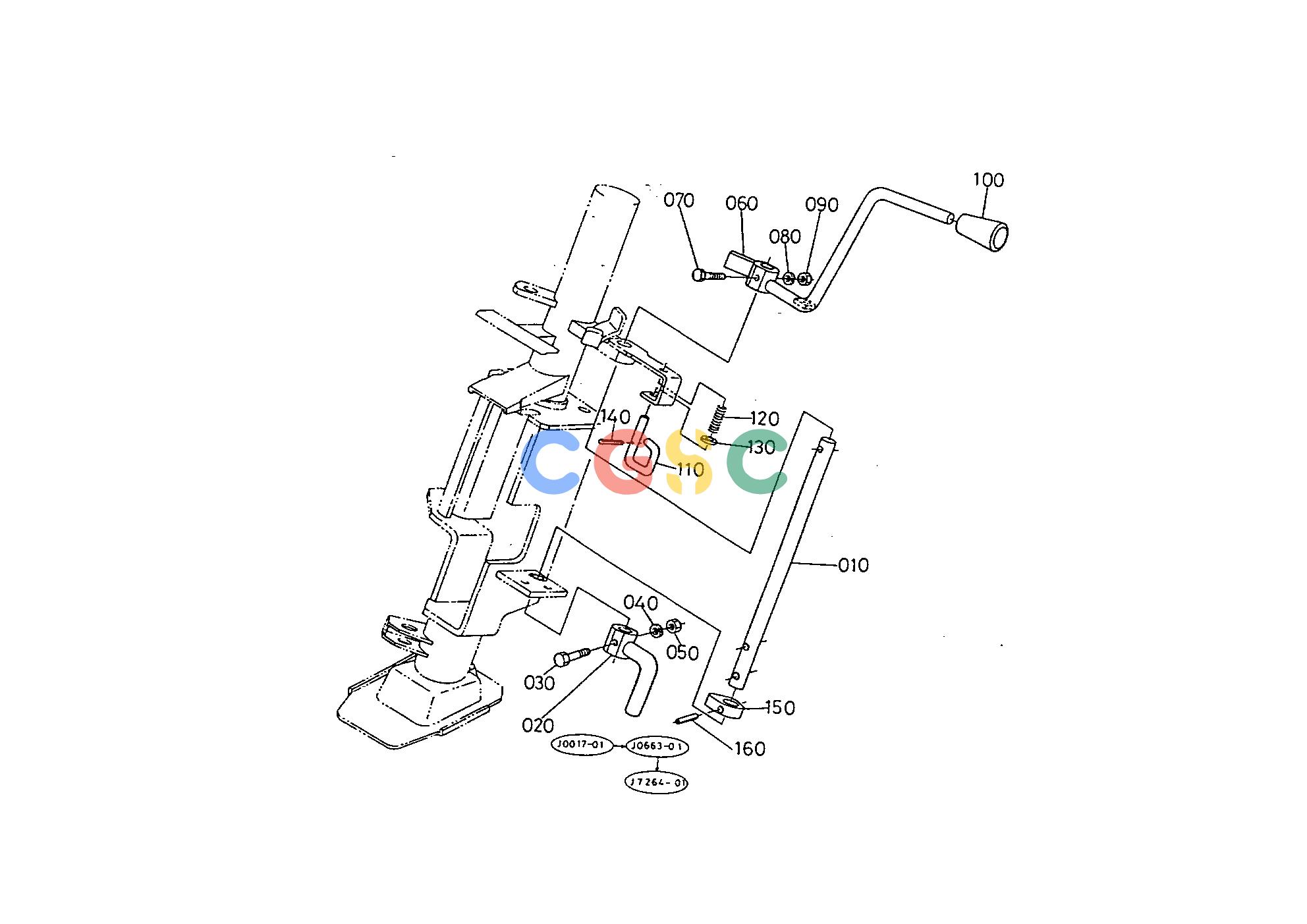

久保田零件查询T05802 SHUTTLE GEAR SHIFT LEVER [HYDROSTATIC PS] ## S.No.;>=80189 SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
357 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3508040210
|
[1] |
SHAFT SHUTTLE CONT.
|
0.0000(lbs); 0.000
|
| 020. |
3508040220
|
[1] |
ARM SHUTTLE CHANGE
|
0.3564(lbs); 0.162
|
| 030. |
3135117150
|
[1] |
BOLT REAMER
|
0.0220(lbs); 0.010
|
| 040. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 050. |
0205650060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 060. |
3243017510
|
[1] |
LEVER SHUTTLE CHANGE
|
0.8800(lbs); 0.400
|
| 070. |
3135117150
|
[1] |
BOLT REAMER
|
0.0220(lbs); 0.010
|
| 080. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 090. |
0205650060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 100. |
0691400120
|
[1] |
GRIP LEVER
|
0.0396(lbs); 0.018
|
| 110. |
3243017570
|
[1] |
PIN SHUTTLE LOCK
|
0.0660(lbs); 0.030
|
| 120. |
3243017580
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 130. |
0401350060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 140. |
0551150218
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 150. |
3508032220
|
[1] |
CAM NEUTRAL SWITCH
|
0.0440(lbs); 0.020
|
| 160. |
0541100635
|
[1] |
PIN SPRING
|
0.0110(lbs); 0.005
|
