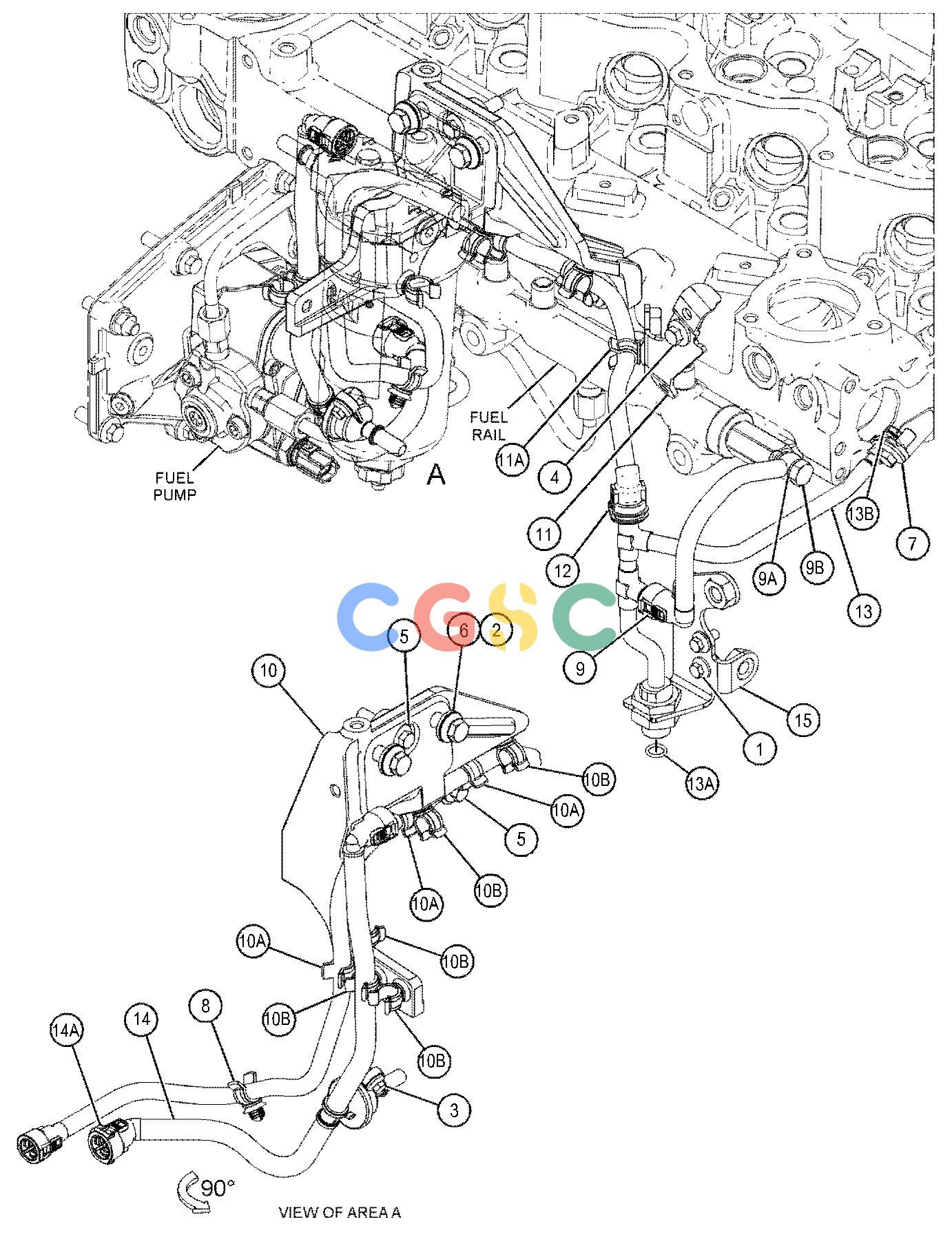

卡特零件查询（AP555F） 398-8205: LINES GP-FUEL
广数供应链运营团队, 17 02月, 2025，浏览：
847 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0631M | [2] | BOLT(M6X1X12-MM) | |
| 2. | 6I-0654M | [2] | BOLT(M10X1.5X25-MM) | |
| 3. | 6I-0846M | [1] | BOLT(M6X1X14-MM) | |
| 4. | 100-4458M | [1] | BOLT(M8X1.25X14-MM) | |
| 5. | 101-3895M | [3] | BOLT(M8X1.25X35-MM) | |
| 6. | 101-3917 | [2] | WASHER(10.5X21X2-MM THK) | |
| 7. | 124-3815M | [1] | BOLT(M8X1.25X16-MM) | |
| 8. | 347-3429 | [1] | CLIP-PIPE | |
| 9. | 360-5695 | [1] | LINE AS-FUEL | |
| 9A. | 246-4361 | [2] | WASHER(10.5X14X1.5-MM THK) | |
| 9B. | 341-3566 | [1] | BOLT | |
| 10. | 364-9368 | [1] | SUPPORT AS-FUEL FILTER | |
| 10A. | 347-3429 | [3] | CLIP-PIPE | |
| 10B. | 357-9545 | [5] | CLIP-PIPE | |
| 11. | 371-5658 | [1] | BRACKET GP | |
| 11A. | 347-3429 | [1] | CLIP-PIPE | |
| 12. | 455-9379 | [1] | LINE AS-FUEL | |
| 13. | 376-6895 | [1] | LINES GP-FUEL | |
| 13A. | 228-7089 | [1] | SEAL-O-RING | |
| 13B. | 277-4993 | [1] | SEAL-O-RING | |
| 14. | 383-6123 | [1] | LINE AS-FUEL | |
| 14A. | 381-0011 | [1] | CONNECTOR-FUEL | |
| 15. | 434-7061 | [1] | BRACKET AS-FUEL LINES | |
| | M | | METRIC PART |
