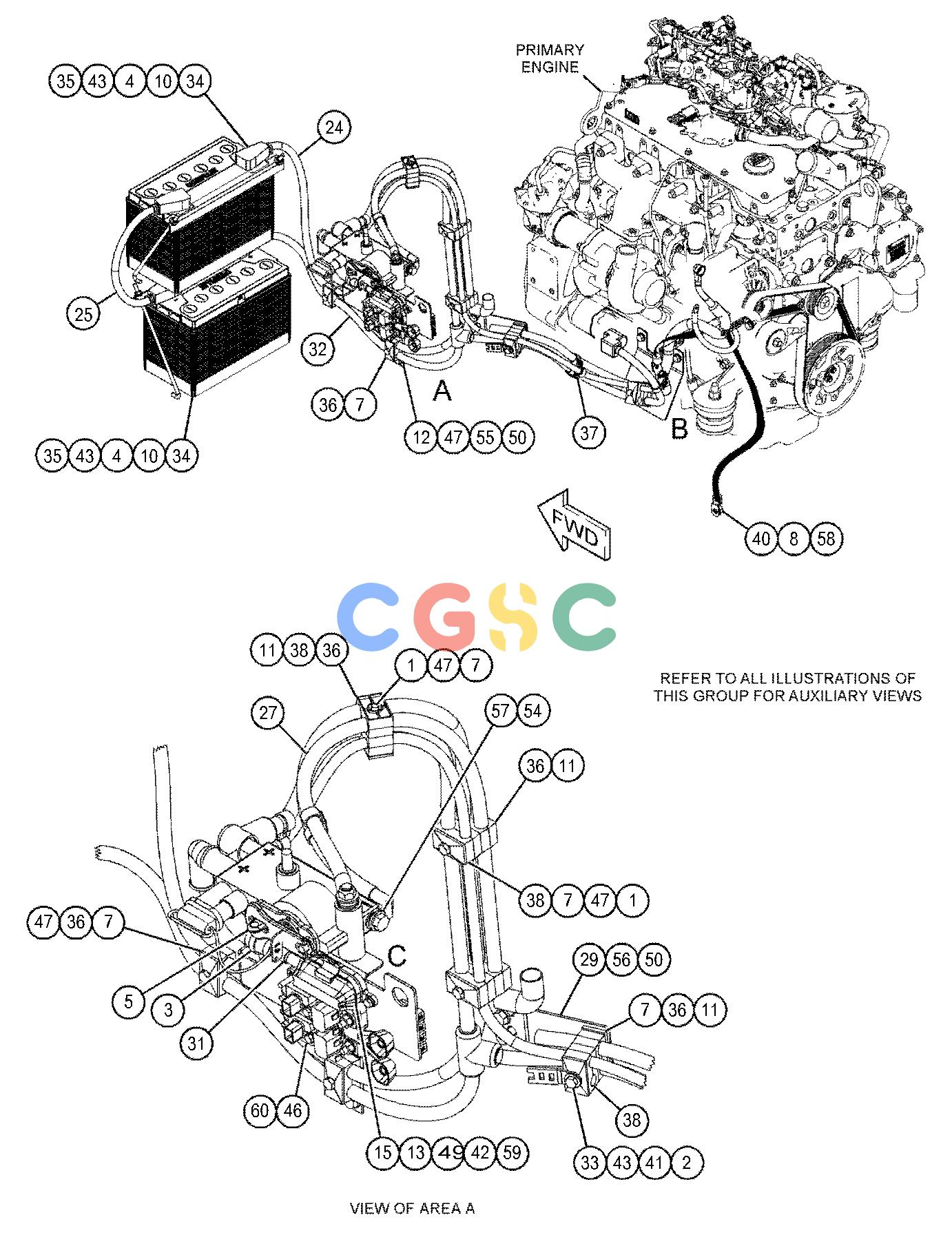

| 1. | 154-4890M | [2] | BOLT-STACKING(M8X1.25X33-MM) | |
| 2. | 206-0451M | [3] | BOLT-STACKING(M8X1.25X44-MM) | |
| 3. | 7K-1181 | [3] | STRAP-CABLE | |
| 4. | 8R-0768 | [4] | ROD-RETAINING | |
| 5. | 9G-2758 | [1] | LOCKOUT-SWITCH | |
| 6. | 9X-6932 | [1] | BOOT-TERMINAL | |
| 7. | 102-8703 | [8] | PLATE-COVER | |
| 8. | 128-8886 | [1] | STRAP AS-GROUND | |
| 9. | 132-1805 | [1] | STRAP AS-GROUND | |
| 10. | 159-7466 | [2] | ANGLE AS | |
| 11. | 206-0452 | [5] | PLATE | |
| 12. | 228-5778 | [1] | PLATE AS | |
| | 102-8704 | [1] | PLATE | |
| 13. | 235-1845 | [1] | FUSE(100-AMPERE) | |
| 14. | 267-2701 | [2] | FUSE(60-AMPERE) | |
| 15. | 267-2744 | [1] | HOLDER AS-FUSE | |
| | 267-2746 | [1] | COVER AS | |
| 16. | 274-9872 | [2] | FUSE(30-AMPERE) | |
| 17. | 274-9877 | [2] | FUSE(50-AMPERE) | |
| 18. | 275-0553 | [1] | BAR-BUS | |
| 19. | 278-6377 | [2] | FUSE(40-AMPERE) | |
| 20. | 303-1256Y | [2] | RELAY GP(24-VDC)(MAIN POWER) | |
| 20A. | 303-1256Y | [2] | RELAY GP(24-VDC)(ENGINE TEMPERATURE) | |
| 21. | 329-3992 | [1] | CABLE AS | |
| | 3L-6513 | [1] | TERMINAL-RING(1-GA TO 2-GA, 1/2-IN SCREW) | |
| | 8C-3056E | | CABLE(2-GA, RED)(42-CM) | |
| | 278-1439 | [1] | TERMINAL AS-RING | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(4-CM) | |
| | 278-1438 | [1] | TERMINAL-RING | |
| 22. | 352-6571 | [1] | BAR-BUS | |
| 23. | 442-8773 | [1] | BRACKET AS | |
| | 6V-9632M | [4] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [1] | LINK | |
| | 102-8704 | [1] | PLATE | |
| | 130-5300 | [1] | CLIP | |
| | 178-8505 | [1] | PLATE-WELD | |
| 24. | 450-6693 | [1] | CABLE AS-BATTERY | |
| | 7T-9988 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| | 3S-6050 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 159-8050E | | CABLE(00-GA, BLACK)(206-CM) | |
| | 208-4617 | [1] | TERMINAL-RING(00-GA, 1/2-IN SCREW) | |
| 25. | 450-9541 | [1] | CABLE AS-BATTERY | |
| | 7T-9987 | [1] | COVER AS-TERMINAL(RED) | |
| | 7T-9988 | [1] | COVER AS-TERMINAL(BLACK) | |
| | | | (EACH COVER AS INCLUDES) |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| | 3S-6050 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 3S-6049 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | | | (EACH TERMINAL AS INCLUDES) |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 159-8049E | | CABLE(00-GA, RED)(53-CM) | |
| 26. | 452-6892Y | [1] | SWITCH GP-DISCONNECT(BATTERY) | |
| 27. | 453-2477 | [1] | CABLE AS | |
| | 159-8050E | | CABLE(00-GA, BLACK)(162-CM) | |
| | | [1] | TERMINAL AS |
| | 6V-2722D | | TUBE-HEAT SHRINK(25.4-MM DIA)(0.1-M) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| | 311-6112 | [1] | TERMINAL AS-BATTERY | |
| | 351-9309E | | TUBE-HEAT SHRINK(32-MM DIA)(4-CM) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 351-9309E | | TUBE-HEAT SHRINK(32-MM DIA)(4-CM) | |
| 28. | 456-4324 | [1] | PLATE AS | |
| | 102-8704 | [1] | PLATE | |
| 29. | 468-5161 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 102-8704 | [1] | PLATE | |
| 30. | 468-7573 | [1] | CABLE AS | |
| | 8C-0596E | | CABLE(2-GA)(33-CM) | |
| | 030-1712 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| | 311-6184 | [1] | TERMINAL-RING(2-GA, 3/8-IN SCREW) | |
| 31. | 482-2164 | [1] | CABLE AS | |
| | 8T-2225E | | TUBE-HEAT SHRINK(25.4-MM DIA)(24-CM) | |
| | 6T-5598 | [2] | TERMINAL-RING(1-GA TO 2-GA, 5/16-IN SCREW) | |
| | 6V-2722D | | TUBE-HEAT SHRINK(25.4-MM DIA)(0.3-M) | |
| | 329-9933G | | HOSE(25-IN) | |
| | 8C-3056E | | CABLE(2-GA, RED)(218-CM) | |
| | 135-2543 | [1] | BOOT(RED) | |
| 32. | 482-2201 | [1] | CABLE AS-BATTERY | |
| | 7T-9987 | [1] | COVER AS-TERMINAL(RED) | |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| | 3S-6049 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| | 9X-9825 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 159-8049E | | CABLE(00-GA, RED)(262-CM) | |
| | 201-4023 | [1] | TERMINAL AS | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 6V-2722D | | TUBE-HEAT SHRINK(25.4-MM DIA)(1-M) | |
| | 276-1786 | [1] | COVER-TERMINAL(RED) | |
| | 301-0091 | [1] | COVER-TERMINAL(RED) | |
| 33. | 099-3649M | [1] | BOLT(M8X1.25X40-MM) | |
| 34. | 115-2422 | [2] | BATTERY GP(12-VOLT, MAINTENANCE FREE, WET) | |
| | | | (EACH INCLUDES) |
| | 123-1373 | [6] | CAP AS-FILLER(7/8-9-THD) | |
| | | | -OR- |
| | 9X-3404 | [2] | BATTERY GP(12-VOLT, MAINTENANCE FREE, WET) | |
| 35. | 131-3540M | [4] | LOCKNUT(M8X1.25-THD) | |
| 36. | 156-5306 | [14] | CLAMP-HALF | |
| 37. | 177-2215 | [5] | STRAP-DUAL CLAMP | |
| 38. | 197-4103 | [12] | CLAMP-HALF | |
| 39. | 352-3969 | [2] | CLIP(LADDER) | |
| 40. | 4B-4280 | [2] | WASHER(13.5X27X2.5-MM THK) | |
| 41. | 4P-7581 | [1] | CLIP(LADDER) | |
| 42. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 43. | 5P-4116 | [5] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 44. | 6V-7687M | [1] | LOCKNUT(M12X1.75-THD) | |
| 45. | 7P-1695 | [1] | WASHER(10.5X19X3-MM THK) | |
| 46. | 7X-2534M | [2] | BOLT(M6X1X50-MM) | |
| 47. | 7X-2537M | [7] | BOLT(M8X1.25X35-MM) | |
| 48. | 7X-2550M | [2] | BOLT(M12X1.75X110-MM) | |
| 49. | 8F-7242 | [4] | WASHER(8.7X15.9X1.6-MM THK) | |
| 50. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 51. | 8T-4123 | [1] | WASHER(22X35X3.5-MM THK) | |
| 52. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 53. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 54. | 8T-4179M | [3] | BOLT(M12X1.75X20-MM) | |
| 55. | 8T-4191M | [5] | BOLT(M10X1.5X16-MM) | |
| 56. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 57. | 8T-4223 | [5] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 58. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 59. | 264-3617 | [4] | LOCKWASHER | |
| 60. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 61. | 103-2543E | | SEAL(2.5-CM EACH) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
