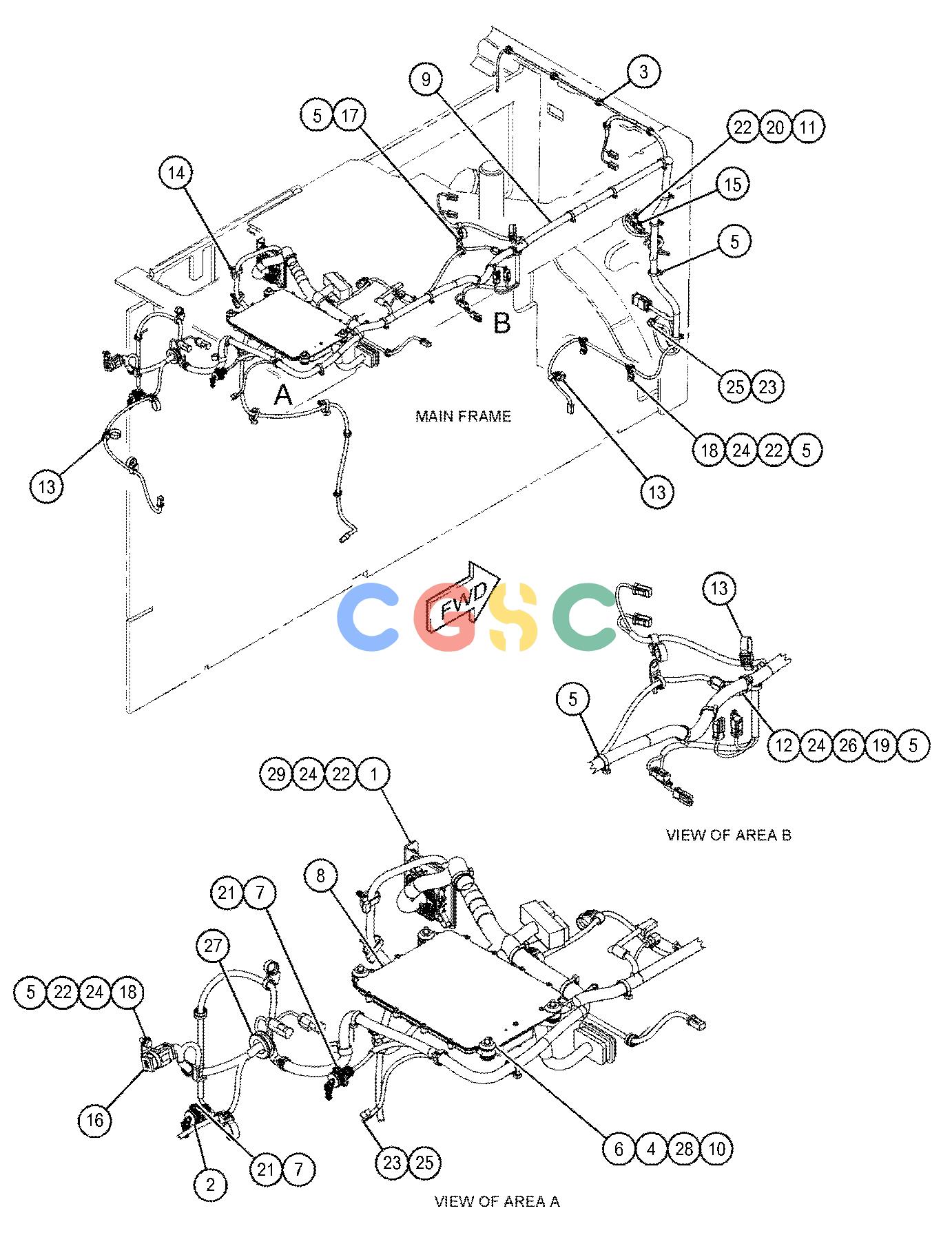

卡特零件查询（AP555F） 450-3039: WIRING GP-MACHINE
广数供应链运营团队, 17 02月, 2025，浏览：
510 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 456-8781 | [1] | PLATE | |
| 2. | 3E-5165 | [2] | CAP AS-PROTECTION | |
| 3. | 3S-2093 | [28] | STRAP-CABLE | |
| 4. | 6I-1418 | [4] | SPACER(8.2X12.7X28.7-MM THK) | |
| 5. | 7K-1181 | [25] | STRAP-CABLE | |
| 6. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 7. | 132-8485 | [2] | NUT-RING | |
| 8. | 368-5104 | [1] | CONTROL GP-ELECTRONIC | |
| 9. | 494-9461Y | [1] | HARNESS AS-CHASSIS | |
| 10. | 099-3649M | [4] | BOLT(M8X1.25X40-MM) | |
| 11. | 130-5300 | [2] | CLIP | |
| 12. | 132-5789 | [1] | CLIP(LADDER) | |
| 13. | 177-2215 | [10] | STRAP-DUAL CLAMP | |
| 14. | 327-0325 | [5] | STRAP-CABLE | |
| 15. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 16. | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 17. | 4P-7428 | [1] | CLIP(LADDER) | |
| 18. | 4P-7581 | [4] | CLIP(LADDER) | |
| 19. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 20. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 21. | 8C-8560 | [8] | SCREW-LOCK(4-40X0.5-IN) | |
| 22. | 8T-4200M | [6] | BOLT(M8X1.25X16-MM) | |
| 23. | 4B-4280 | [2] | WASHER(13.5X27X2.5-MM THK) | |
| 24. | 8T-4224 | [7] | WASHER-HARD(8.8X16X2-MM THK) | |
| 25. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 26. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 27. | 8T-5387 | [1] | GROMMET | |
| 28. | 9N-0869 | [4] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 29. | 9X-2042M | [4] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
