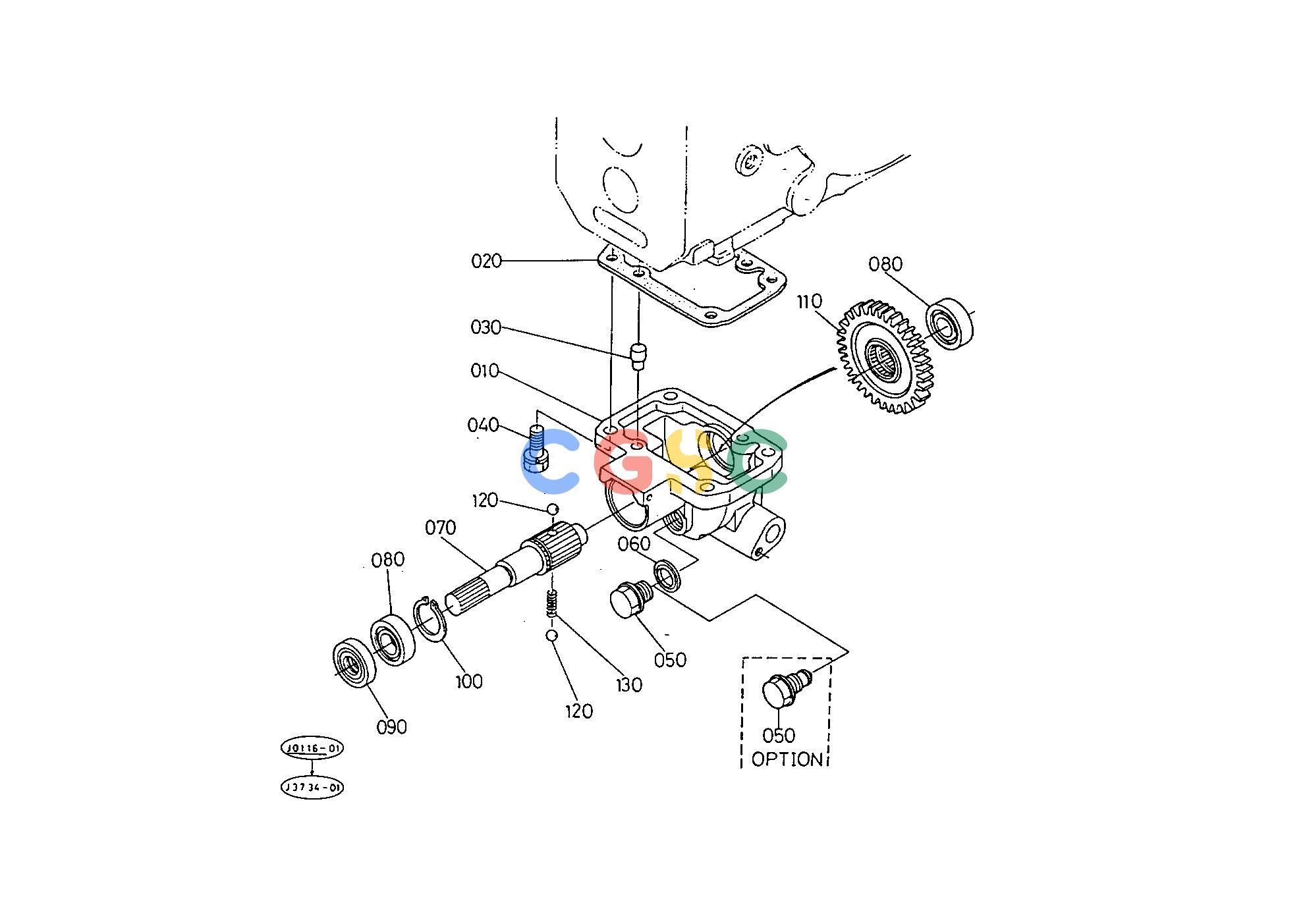

久保田零件查询T08102 FRONT WHEEL DRIVE SHAFT [W/O MID PTO] FRONT AXLE AND FRONT WHEELEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
992 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243044210
|
[1] |
CASE DRIVE
|
2.0900(lbs); 0.950
|
| 020. |
3715021282
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 030. |
3243044450
|
[2] |
PIN KNOCK
|
0.0220(lbs); 0.010
|
| 040. |
0113351235
|
[4] |
BOLT
|
0.0946(lbs); 0.043
|
| 050. |
1551296010
|
[1] |
PLUG DRAIN
|
0.2222(lbs); 0.101
|
| 050. |
3242067020
|
[1] |
PLUG MAGNET
|
0.2530(lbs); 0.115
|
| 060. |
0471702150
|
[1] |
WASHER WITH RUBBER
|
0.0088(lbs); 0.004
|
| 070. |
3243044220
|
[1] |
SHAFT DRIVE
|
1.4410(lbs); 0.655
|
| 080. |
0810106204
|
[2] |
BEARING BALL
|
0.2244(lbs); 0.102
|
| 090. |
0950204710
|
[1] |
SEAL OIL
|
0.0484(lbs); 0.022
|
| 100. |
3674041150
|
[1] |
CIR-CLIP EXTERNAL
|
0.0220(lbs); 0.010
|
| 110. |
3243044230
|
[1] |
GEAR SHIFT
|
1.3530(lbs); 0.615
|
| 120. |
0771501605
|
[2] |
BALL
|
0.0066(lbs); 0.003
|
| 130. |
3243044250
|
[1] |
SPRING
|
0.0088(lbs); 0.004
|
