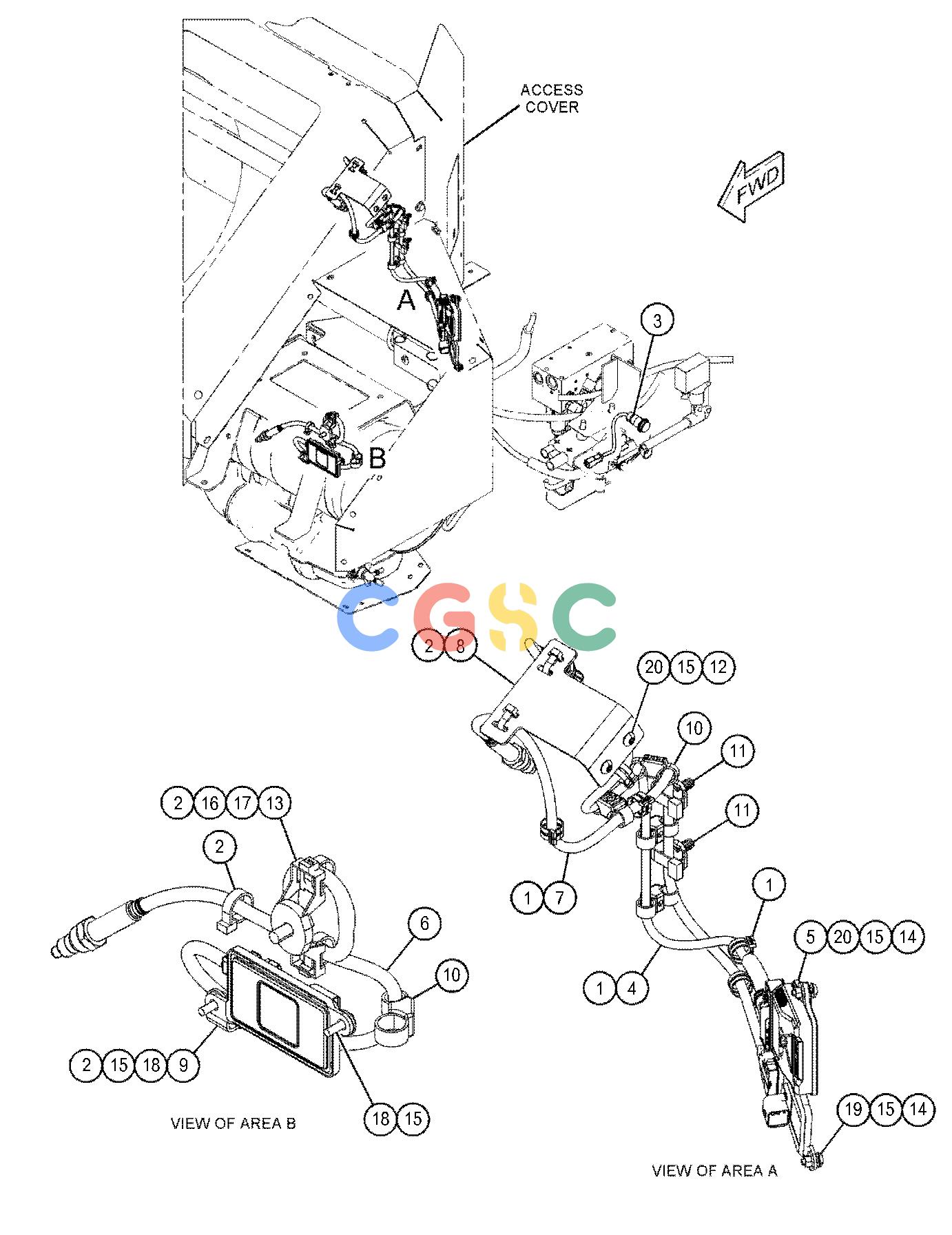

卡特零件查询（AP555F） 450-3043: SENSOR GP-NITROGEN OXIDE
广数供应链运营团队, 17 02月, 2025，浏览：
857 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [10] | STRAP-CABLE | |
| 2. | 7K-1181 | [6] | STRAP-CABLE | |
| 3. | 421-5575 | [1] | LAMP GP-INDICATOR(24-VOLT) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 6V-2689D | | TUBE-HEAT SHRINK(6.35-MM DIA)(0.1-M) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1386E | | SLEEVE(29-CM) | |
| | 5P-5677BD | | WIRE(18-GA, BLACK) | |
| | 5P-5677BD | | WIRE(18-GA, BLACK) | |
| 4. | 421-7786 | [1] | SENSOR AS-AMMONIA(EXHAUST GAS) | |
| 5. | 421-7787 | [1] | CONTROLLER AS | |
| 6. | 441-5127 | [1] | SENSOR AS-NITROGEN OXIDE(ENGINE OUTPUT) | |
| 7. | 441-5128 | [1] | SENSOR AS-NITROGEN OXIDE(EXHAUST PIPE OUT) | |
| 8. | 467-2508 | [1] | BRACKET | |
| 9. | 132-5789 | [1] | CLIP(LADDER)(LADDER) | |
| 10. | 177-2215 | [5] | STRAP-DUAL CLAMP | |
| 11. | 327-0325 | [2] | STRAP-CABLE | |
| 12. | 344-5673M | [2] | NUT(M6X1-THD) | |
| 13. | 345-3753 | [1] | MOUNTING-CABLE TIE | |
| 14. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 15. | 5P-4115 | [8] | WASHER-HARD(7.2X19X2-MM THK) | |
| 16. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 17. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 18. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 19. | 9X-2044M | [2] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| 20. | 9X-2045M | [4] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
