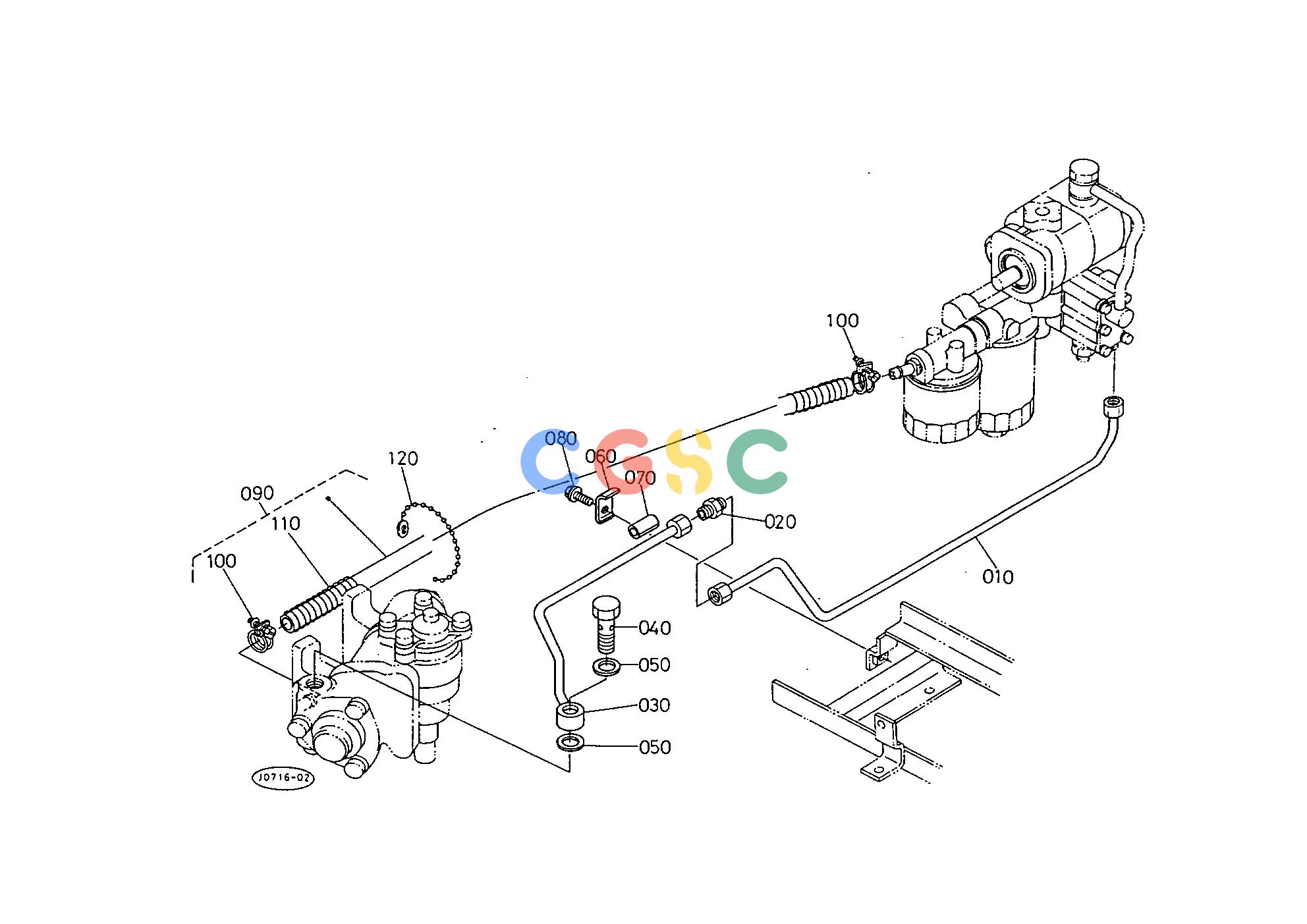

久保田零件查询T09601 HYDRAULIC OIL LINE (PS) [OLD TYPE] ## S.No.;<=80188 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
503 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243072260
|
[1] |
COMP.PIPE POWER STRG
|
0.4290(lbs); 0.195
|
| 020. |
3258338980
|
[1] |
JOINT
|
0.0000(lbs); 0.000
|
| 030. |
3242072280
|
[1] |
COMP.PIPE POWER STRG
|
0.3300(lbs); 0.150
|
| 040. |
6659136250
|
[1] |
JOINT
|
0.1760(lbs); 0.080
|
| 050. |
6711137180
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
| 060. |
3135145260
|
[1] |
HOLDER PIPE
|
0.0440(lbs); 0.020
|
| 070. |
3135145270
|
[1] |
PIPE RUBBER
|
0.0066(lbs); 0.003
|
| 080. |
0175450820
|
[1] |
BOLT FLANGE
|
0.0330(lbs); 0.015
|
| 090. |
3242072120
|
[1] |
ASSY PIPE RETURN
|
0.4840(lbs); 0.220
|
| 100. |
3843045150
|
[2] |
CLAMP
|
0.0330(lbs); 0.015
|
| 110. |
3135145330
|
[1] |
SPRING PROTECTOR
|
0.1210(lbs); 0.055
|
| 120. |
3435029380
|
[1] |
BAND CORD
|
0.0022(lbs); 0.001
|
