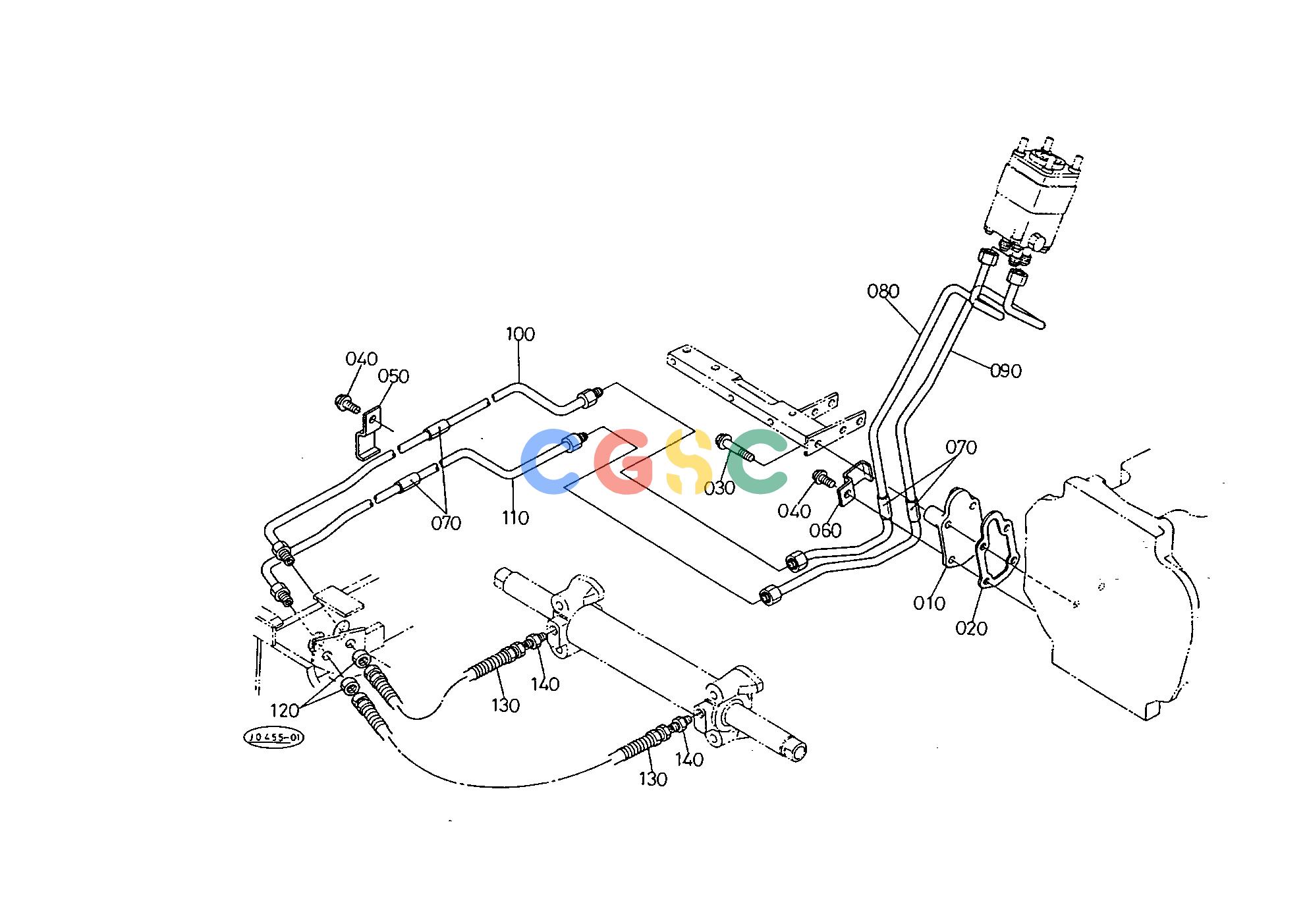

久保田零件查询T09700 HYDRAULIC OIL LINE ## S.No.;>=80189 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
537 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3508040250
|
[1] |
COVER HOUSING SIDE
|
0.6380(lbs); 0.290
|
| 020. |
3508040260
|
[1] |
GASKET SIDE COVER
|
0.0110(lbs); 0.005
|
| 030. |
0175450845
|
[2] |
BOLT FLANGE
|
0.0462(lbs); 0.021
|
| 040. |
0175450816
|
[2] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 050. |
3508040270
|
[1] |
HOLDER PIPE
|
0.0770(lbs); 0.035
|
| 060. |
3508040280
|
[1] |
HOLDER PIPE
|
0.0660(lbs); 0.030
|
| 070. |
3135145270
|
[4] |
PIPE RUBBER
|
0.0066(lbs); 0.003
|
| 080. |
3508040350
|
[1] |
COMP.PIPE DELIVERY
|
0.4180(lbs); 0.190
|
| 090. |
3508040380
|
[1] |
COMP.PIPE DELIVERY
|
0.4730(lbs); 0.215
|
| 100. |
3508040400
|
[1] |
COMP.PIPE DELIVERY
|
0.5940(lbs); 0.270
|
| 110. |
3508040450
|
[1] |
COMP.PIPE DELIVERY
|
0.5940(lbs); 0.270
|
| 120. |
3683063290
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 130. |
3508040310
|
[2] |
HOSE DELIVERY
|
0.5610(lbs); 0.255
|
| 140. |
3683063210
|
[2] |
JOINT
|
0.0792(lbs); 0.036
|
