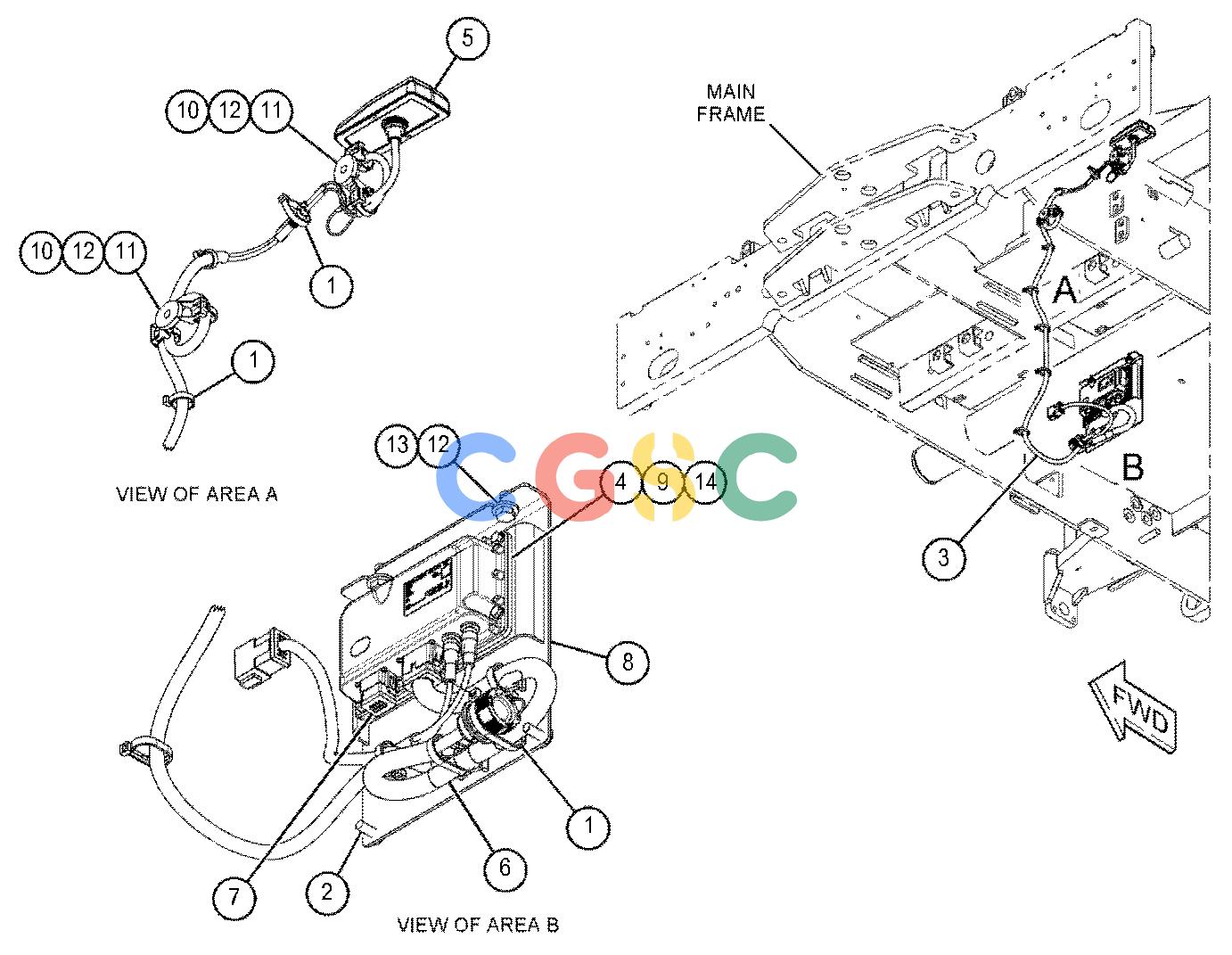

卡特零件查询（AP555F） 482-0803: HARNESS GP-WIRING
广数供应链运营团队, 17 02月, 2025，浏览：
670 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 374-7463 | [2] | CAP-SEAL | |
| | 245-1045 | [1] | COVER | |
| | 245-1044 | [2] | LOCK-CONNECTOR | |
| | 310-0674 | [1] | LOCKWASHER | |
| | 211-0052 | [1] | NUT(1-11/16-18-THD) | |
| | 9X-3401 | [26] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [26] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2270 | [19] | KIT-CONNECTING PLUG(2-PIN) | |
| | 174-0503 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 225-3854 | [1] | PLUG AS-CONNECTOR(31-PIN) | |
| | 230-4011 | [2] | PLUG AS-CONNECTOR(2-PIN) | |
| | | | (EACH INCLUDES) |
| | 455-0704 | [1] | SEAL-CONNECTOR | |
| | 245-1042 | [1] | PLUG AS-CONNECTOR(64-PIN) | |
| | 267-7207M | [1] | BOLT-SPECIAL(M6X1-THD) | |
| | 267-7208 | [1] | RING-RETAINING | |
| | 274-4990 | [1] | SEAL | |
| | 245-1048 | [47] | PLUG-CONNECTOR(1-PIN) | |
| | 8T-8737 | [32] | PLUG-SEAL | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 225-3861 | [1] | RECEPTACLE AS-CONNECTOR(31-PIN) | |
| | 134-2540 | [1] | RECEPTACLE AS-CONNECTOR(3-PIN) | |
| | 194-5226 | [68] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [68] | WIRE AS(14-GA) | |
| | 204-6195 | [1] | SOCKET-CONNECTOR(10-GA) | |
| | 267-9572 | [17] | SOCKET-CONNECTION(18-GA) | |
| | 7N-9017 | [1] | TERMINAL-RING(18-GA TO 22-GA, NO. 10 SCREW) | |
| | 2L-8050 | [1] | TERMINAL-RING(6-GA, 1/4-IN SCREW) | |
| | | | -OR- |
| | 2L-8058 | [1] | TERMINAL-RING(8-GA, 1/4-IN SCREW) | |
| | 2L-8071 | [1] | TERMINAL-RING(10-GA TO 12-GA, 1/2-IN SCREW) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(35-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(20-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
