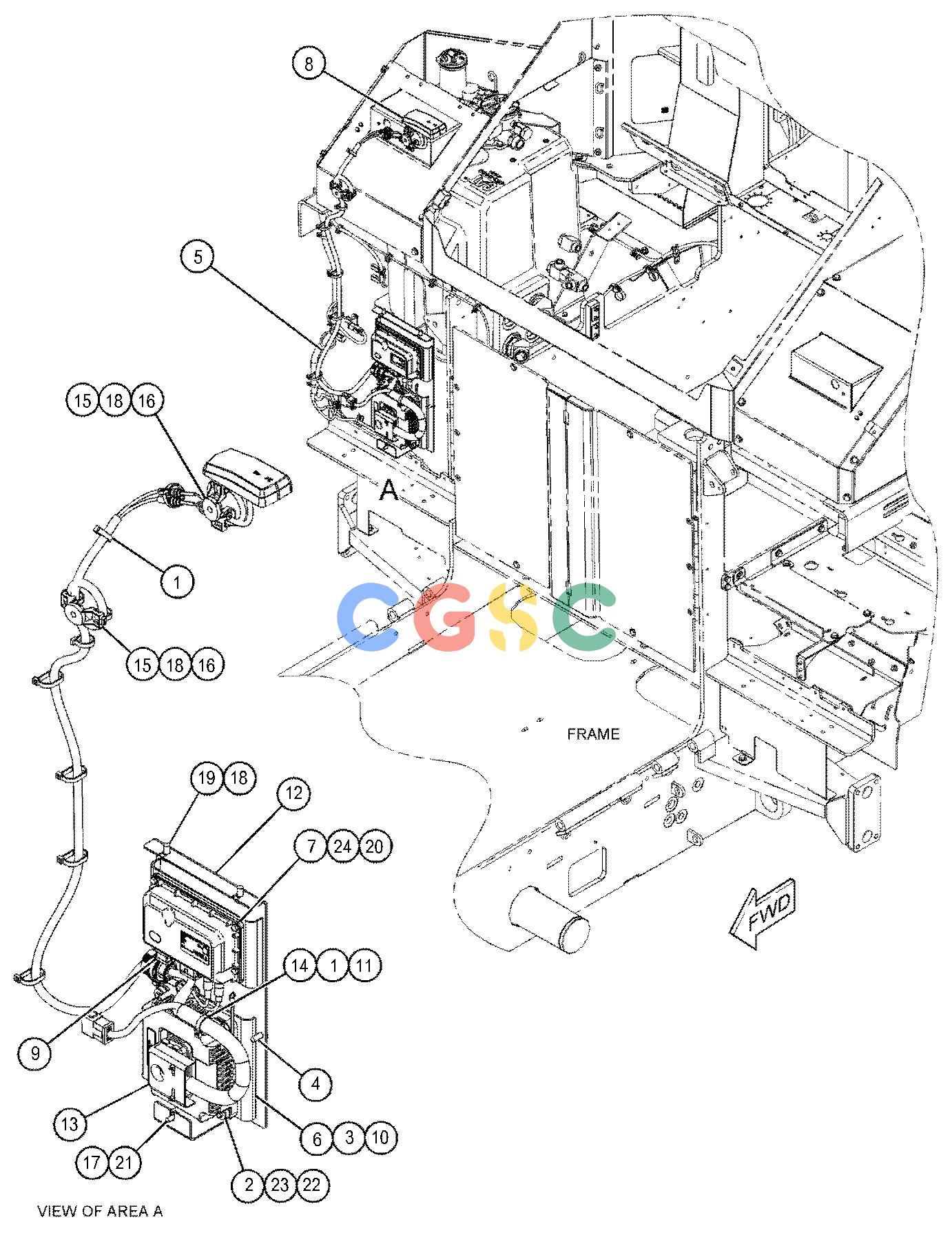

卡特零件查询（AP555F） 456-4096: INSTALLATION GP-COMMUNICATION
广数供应链运营团队, 17 02月, 2025，浏览：
429 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [15] | STRAP-CABLE | |
| 2. | 111-1777 | [2] | BUMPER-RUBBER | |
| 3. | 349-6083 | [1] | CABLE AS | |
| 4. | 440-2105Y | [1] | CONTROL GP-UNPROGRAMMED(PRODUCT LINK ELITE 641 CELLULAR) | |
| 5. | 443-8462 | [1] | ANTENNA AS(CELLULAR) | |
| | 361-1045 | [1] | NUT-SPECIAL(5/8-18-THD) | |
| | 385-8201 | [1] | CAP AS-CONNECTOR | |
| 6. | 461-2700Y | [1] | HARNESS AS-CONTROL | |
| 7. | 462-6495 | [1] | PLUG AS | |
| | 8T-8737 | [8] | PLUG-SEAL | |
| | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (INCLUES PLUG AS, WEDGE & INTERFACE SEAL) |
| 8. | 471-6178 | [1] | BRACKET AS | |
| | 6V-9632M | [4] | NUT-WELD(M6X1-THD) | |
| 9. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 10. | 344-5675M | [2] | NUT(M10X1.5-THD) | |
| 11. | 345-3753 | [2] | MOUNTING-CABLE TIE | |
| 12. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 13. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 14. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| | | | |
| | 478-8210FY | [1] | ELECTRONICS GP-MONITOR(PL641 CELLULAR) | |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
