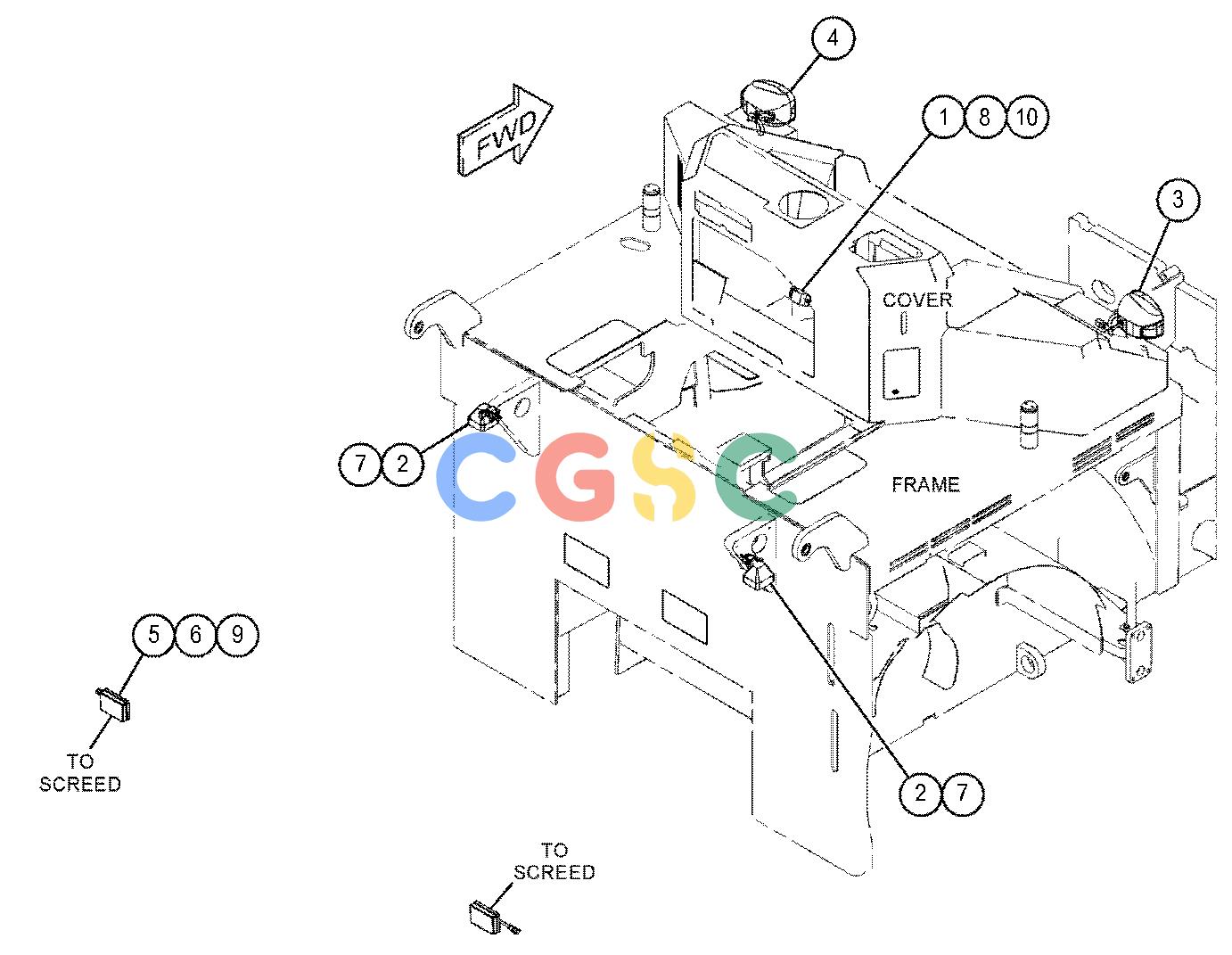

卡特零件查询（AP555F） 455-7857: LIGHTING GP-ROADING
广数供应链运营团队, 17 02月, 2025，浏览：
242 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 108-0358 | [1] | FLASHER AS(24-VOLT) | |
| 2. | 234-4323Y | [2] | LAMP GP-FLOOD(24-VOLT) | |
| 3. | 238-2797Y | [1] | LAMP GP-HEAD & SIGNAL(24-VOLT, RH) | |
| 4. | 238-2798Y | [1] | LAMP GP-HEAD & SIGNAL(24-VOLT, LH) | |
| 5. | 392-4634 | [2] | LAMP AS-INDICATOR(24-VOLT)(STOP, TAIL, TURN) | |
| | | | (EACH INCLUDES) |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 6. | 344-5673M | [6] | NUT(M6X1-THD) | |
| 7. | 344-5675M | [2] | NUT(M10X1.5-THD) | |
| 8. | 8T-4171M | [2] | BOLT(M6X1X12-MM) | |
| 9. | 8T-4205 | [6] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 10. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
