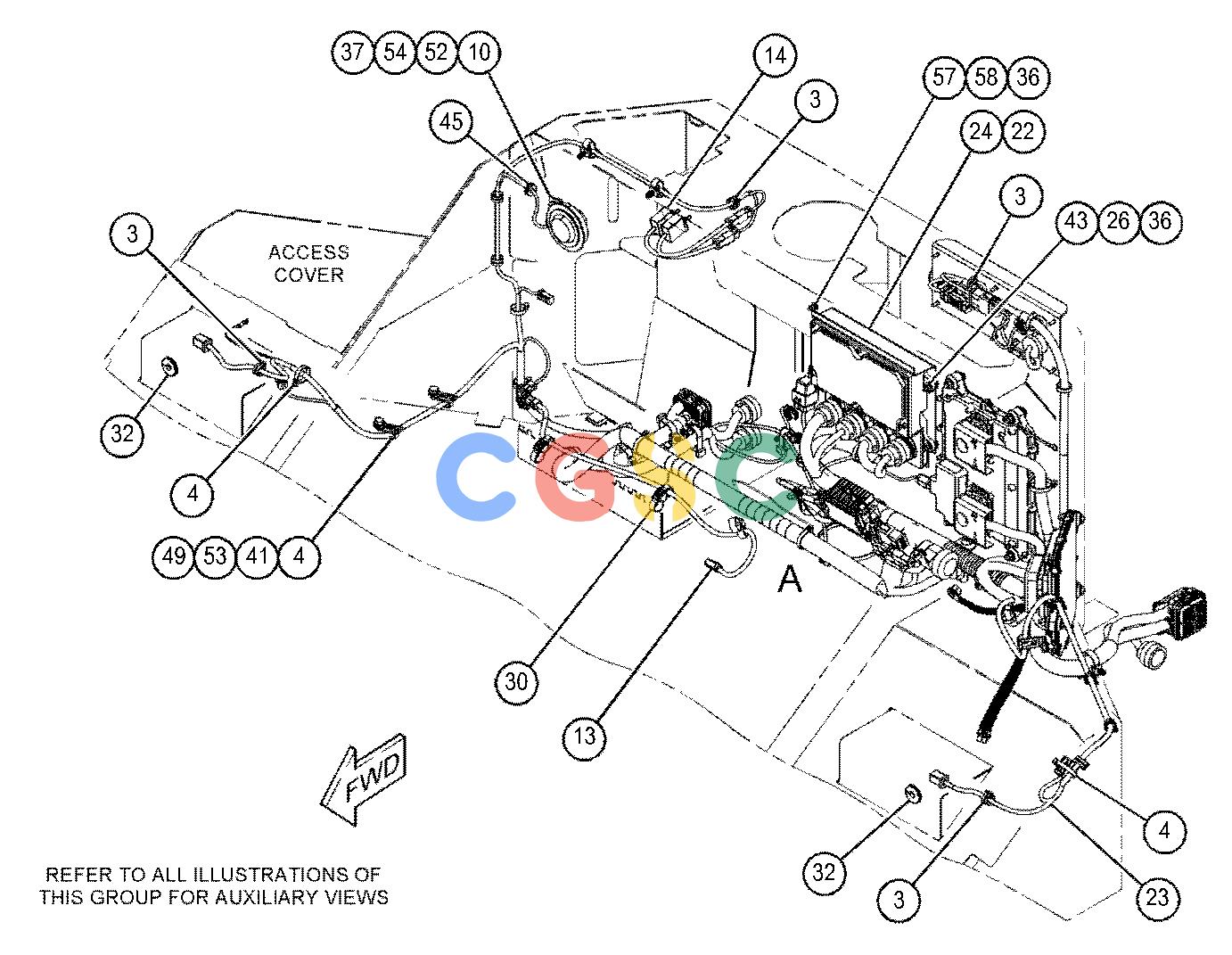

| 1. | 3E-6328Y | [1] | ALARM GP(24-VOLT) | |
| 2. | 3E-5239 | [1] | RELAY AS(24-VOLT)(FAN BYPASS) | |
| 3. | 3S-2093 | [22] | STRAP-CABLE | |
| 4. | 7K-1181 | [21] | STRAP-CABLE | |
| 5. | 7X-6035 | [1] | STRAP-GROUNDING | |
| 6. | 8T-9655 | [14] | MOUNT-ISOLATION | |
| 7. | 8X-6645 | [1] | STRAP AS-GROUND | |
| 8. | 9X-0352 | [1] | RECEPTACLE AS-CONNECTOR(2-PIN) | |
| 9. | 128-6157 | [1] | PLATE | |
| 10. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 11. | 180-9900 | [2] | CAP AS | |
| | | | (EACH INCLUDES) |
| | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| | 8C-6354 | [1] | CAP-RECEPTACLE(ET CONNECTOR) | |
| | 179-9392 | [1] | LANYARD | |
| 12. | 255-2752Y | [1] | SWITCH GP-START(IGNITION)(IGNITION) | |
| 13. | 277-8236 | [1] | HARNESS AS-SOLENOID(FAN) | |
| | 155-2270 | [2] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| | 194-5226 | [4] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [4] | WIRE AS(14-GA) | |
| 14. | 284-8381Y | [2] | SWITCH AS-TOGGLE(COOLANT LEVEL) | |
| 15. | 299-5744 | [1] | MODULE GP-RELAY DRIVER | |
| 16. | 340-7160 | [1] | CONVERTER-POWER(24-VOLT TO 12-VOLT) | |
| 17. | 344-7618 | [1] | COVER-SEAL | |
| 18. | 455-9580 | [1] | CONTROL GP-UNPROGRAMMED(ELECTRONIC) | |
| 19. | 398-3073 | [1] | CABLE AS | |
| | 125-7876E | | TUBE-HEAT SHRINK(17.78-MM DIA)(3-CM) | |
| | 9X-3402 | [4] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768 | [4] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 169-0705 | [8] | SEAL | |
| | 331-4222 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| | 155-2258 | [1] | WEDGE-PLUG LOCK(12-PIN) | |
| | 344-7617 | [1] | RECEPTACLE AS | |
| 20. | 423-9715 | [1] | PLATE AS | |
| | 7T-1099 | [2] | LINK | |
| | 130-5300 | [1] | CLIP | |
| 21. | 469-0278 | [1] | BRACKET | |
| 22. | 475-3847 | [1] | PLATE | |
| 23. | 506-5486Y | [1] | HARNESS AS-CONTROL | |
| 24. | 482-0772Y | [1] | CONTROL GP-ELECTRONIC | |
| 25. | 485-1916 | [1] | WRENCH(5-MM) | |
| 26. | 111-4627M | [4] | SCREW-MACHINE(M6X1X30-MM) | |
| 27. | 132-5789 | [1] | CLIP(LADDER) | |
| 28. | 141-4976 | [4] | SCREW-WASHER HEAD(4-40X0.5-IN) | |
| 29. | 170-5632M | [2] | BOLT(M4X0.7X16-MM) | |
| 30. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 31. | 1A-8912 | [2] | WASHER(6.7X12.7X1.6-MM THK) | |
| 32. | 1P-6522 | [2] | GROMMET | |
| 33. | 214-0910 | [2] | LOCKWASHER | |
| 34. | 274-7409M | [7] | SCREW-TRUSS HEAD(M8X1.25X45-MM) | |
| 35. | 327-0325 | [9] | STRAP-CABLE | |
| 36. | 344-5673M | [7] | NUT(M6X1-THD) | |
| 37. | 344-5674M | [8] | NUT(M8X1.25-THD) | |
| 38. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 39. | 4B-4280 | [3] | WASHER(13.5X27X2.5-MM THK) | |
| 40. | 4B-4863 | [2] | WASHER(4.7X11X1.2-MM THK) | |
| 41. | 4P-7581 | [2] | CLIP(LADDER) | |
| 42. | 5C-7261M | [3] | NUT(M8X1.25-THD) | |
| 43. | 5P-4115 | [8] | WASHER-HARD(7.2X19X2-MM THK) | |
| 44. | 5P-4116 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 45. | 5P-8439 | [1] | GROMMET | |
| 46. | 6I-1418 | [7] | SPACER(8.2X12.7X28.7-MM THK) | |
| 47. | 8F-7242 | [3] | WASHER(8.7X15.9X1.6-MM THK) | |
| 48. | 8M-2771 | [1] | CLIP | |
| 49. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 50. | 8T-4138M | [1] | BOLT(M6X1X20-MM) | |
| 51. | 8T-4171M | [2] | BOLT(M6X1X12-MM) | |
| 52. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 53. | 8T-4191M | [3] | BOLT(M10X1.5X16-MM) | |
| 54. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 55. | 8T-4244M | [3] | NUT(M12X1.75-THD) | |
| 56. | 9X-2041M | [1] | SCREW-TRUSS HEAD(M10X1.5X20-MM) | |
| 57. | 9X-2044M | [8] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| 58. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
