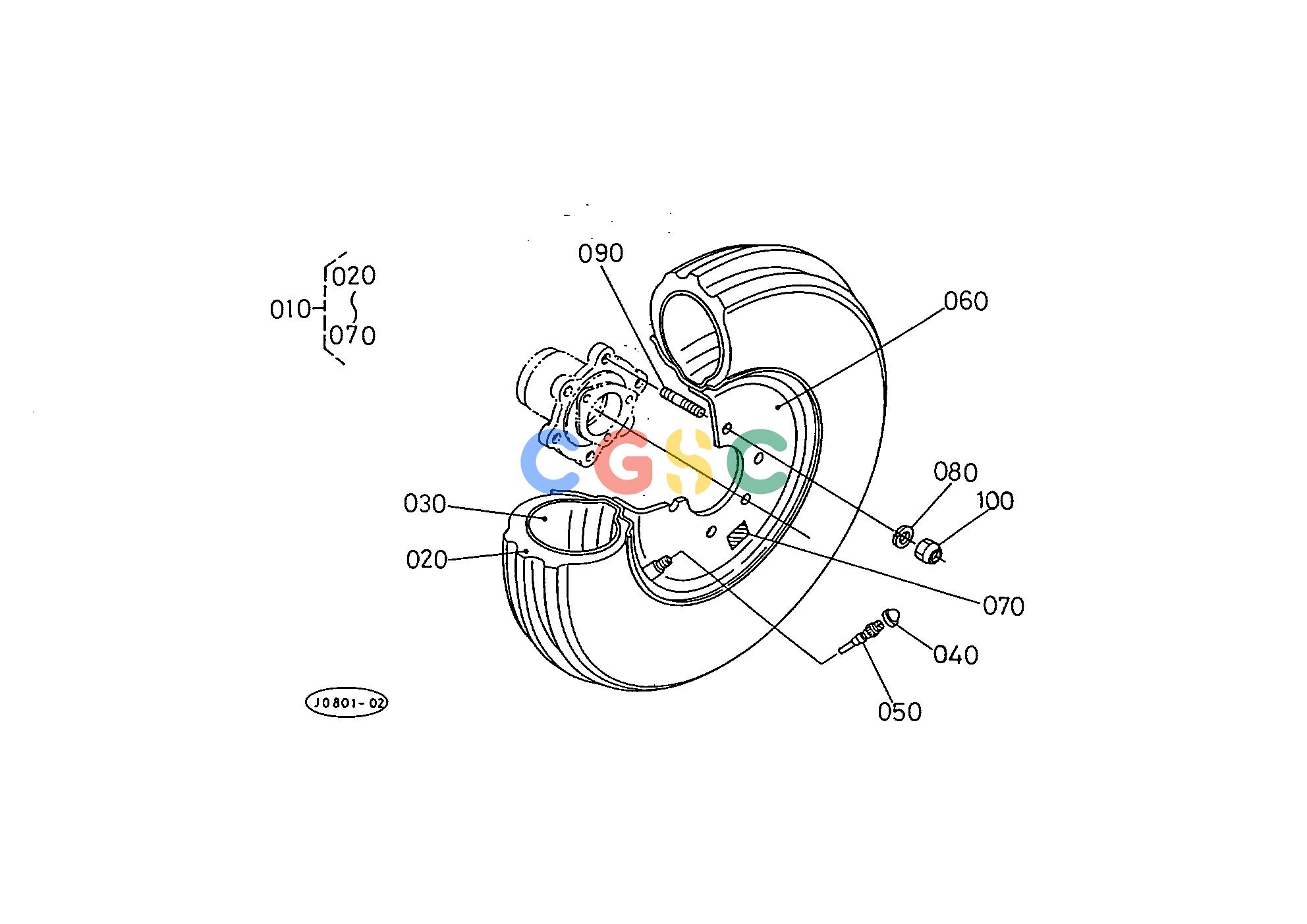

久保田零件查询T07702 FRONT WHEEL (6.00-16 FSR) FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
649 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3244011600
|
[2] |
ASSY FRONT WHEEL
|
44.0000(lbs); 20.000
|
| 020. |
3183011620
|
[2] |
TIRE FRONT WHEEL
|
22.0000(lbs); 10.000
|
| 030. |
3183011610
|
[2] |
TUBE
|
1.9800(lbs); 0.900
|
| 040. |
3824011690
|
[2] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 050. |
3215027740
|
[2] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 060. |
3244011640
|
[2] |
DISK FRONT WHEEL
|
19.8000(lbs); 9.000
|
| 070. |
3244011570
|
[2] |
LABEL TIRE
|
0.0022(lbs); 0.001
|
| 080. |
0451250140
|
[12] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 090. |
0151751428
|
[12] |
STUD
|
0.1100(lbs); 0.050
|
| 100. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
