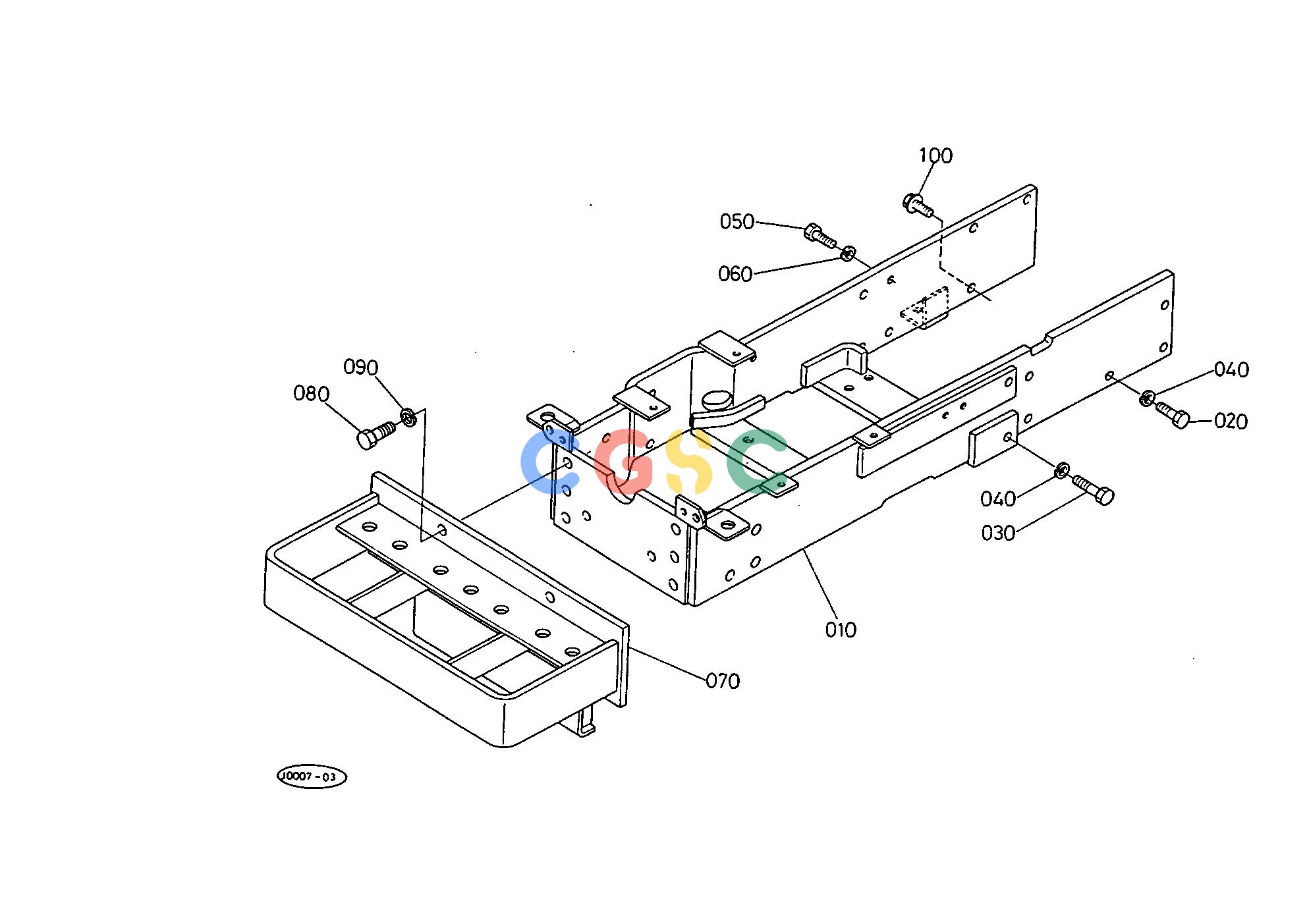

久保田零件查询T07800 FRONT AXLE FRAME FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
567 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243013615
|
[1] |
FRAME FRONT AXLE
|
62.7000(lbs); 28.500
|
| 020. |
0117651235
|
[9] |
BOLT
|
0.0902(lbs); 0.041
|
| 030. |
0117651245
|
[4] |
BOLT
|
0.1100(lbs); 0.050
|
| 040. |
0451250120
|
[13] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 050. |
0117651030
|
[1] |
BOLT
|
0.0484(lbs); 0.022
|
| 060. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 070. |
3243044880
|
[1] |
BUMPER
|
26.5100(lbs); 12.050
|
| 080. |
0117351435
|
[4] |
BOLT
|
0.1232(lbs); 0.056
|
| 090. |
0451250140
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 100. |
0177451225
|
[1] |
BOLT FLANGE
|
0.0880(lbs); 0.040
|
