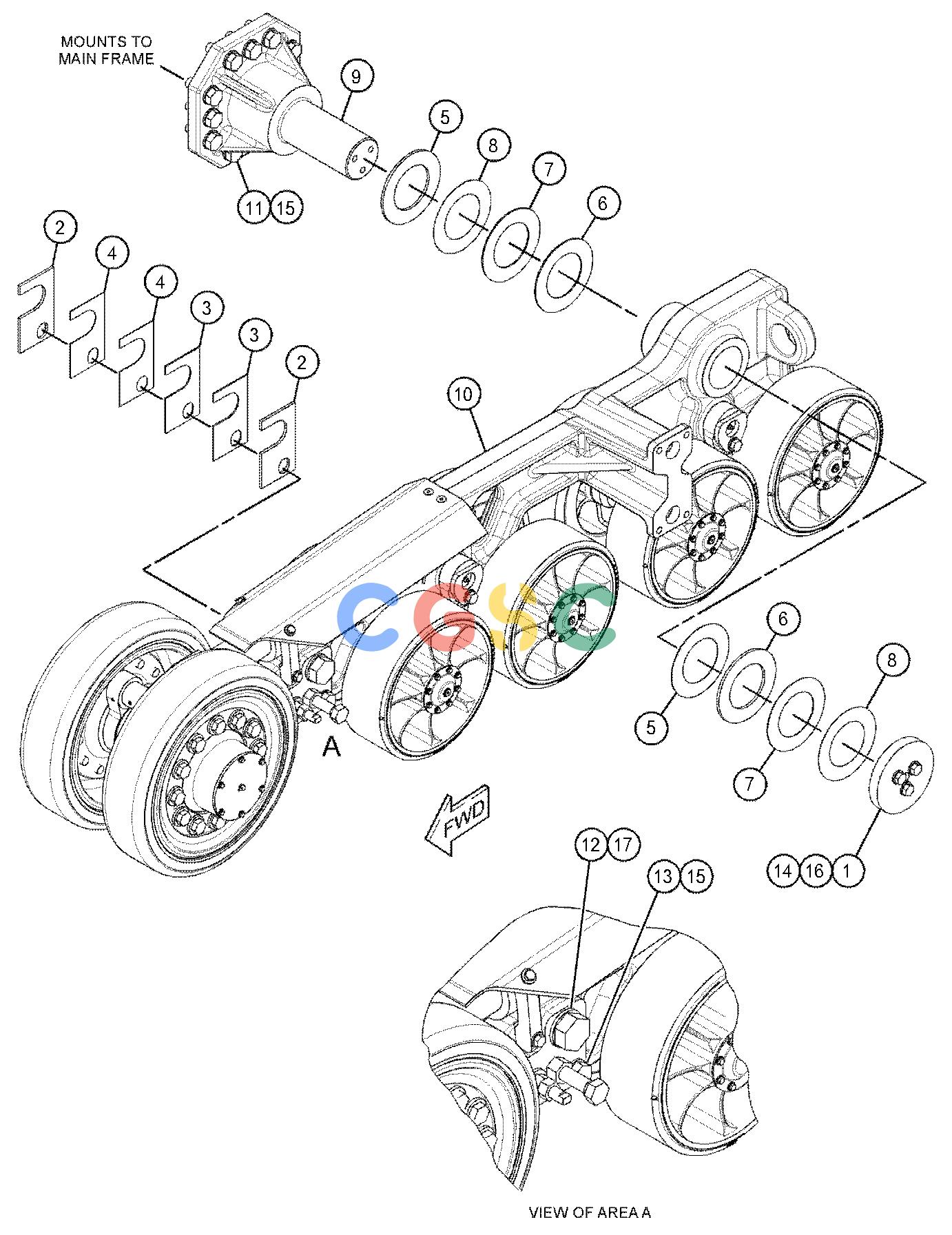

卡特零件查询（AP555F） 452-8187: FRAME GP-TRACK ROLLER
广数供应链运营团队, 17 02月, 2025，浏览：
930 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 180-2627 | [1] | PLATE | |
| 2. | 190-2477B | [2] | SHIM(6.35-MM THK) | |
| 3. | 190-2478B | [2] | SHIM(3-MM THK) | |
| 4. | 190-2479B | [2] | SHIM(1.5-MM THK) | |
| 5. | 190-2486B | [2] | SHIM(6.35-MM THK) | |
| 6. | 190-2487B | [2] | SHIM(3-MM THK) | |
| 7. | 190-2488B | [2] | SHIM(1.5-MM THK) | |
| 8. | 190-2489B | [2] | SHIM(0.45-MM THK) | |
| 9. | 351-4464 | [1] | SHAFT | |
| 10. | 452-8189Y | [1] | FRAME GP-TRACK ROLLER | |
| 11. | 7X-2576M | [12] | BOLT(M24X3X70-MM) | |
| 12. | 7Y-5265M | [1] | BOLT(M36X4X140-MM) | |
| 13. | 7X-2567M | [1] | BOLT(M24X3X160-MM) | |
| 14. | 8T-4122 | [3] | WASHER-HARD(17X32X3.5-MM THK) | |
| 15. | 8T-4167 | [13] | WASHER-HARD(26X44X4-MM THK) | |
| 16. | 8T-4193M | [3] | BOLT(M16X2X50-MM) | |
| 17. | 9X-8259 | [1] | WASHER(39X66X6-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
