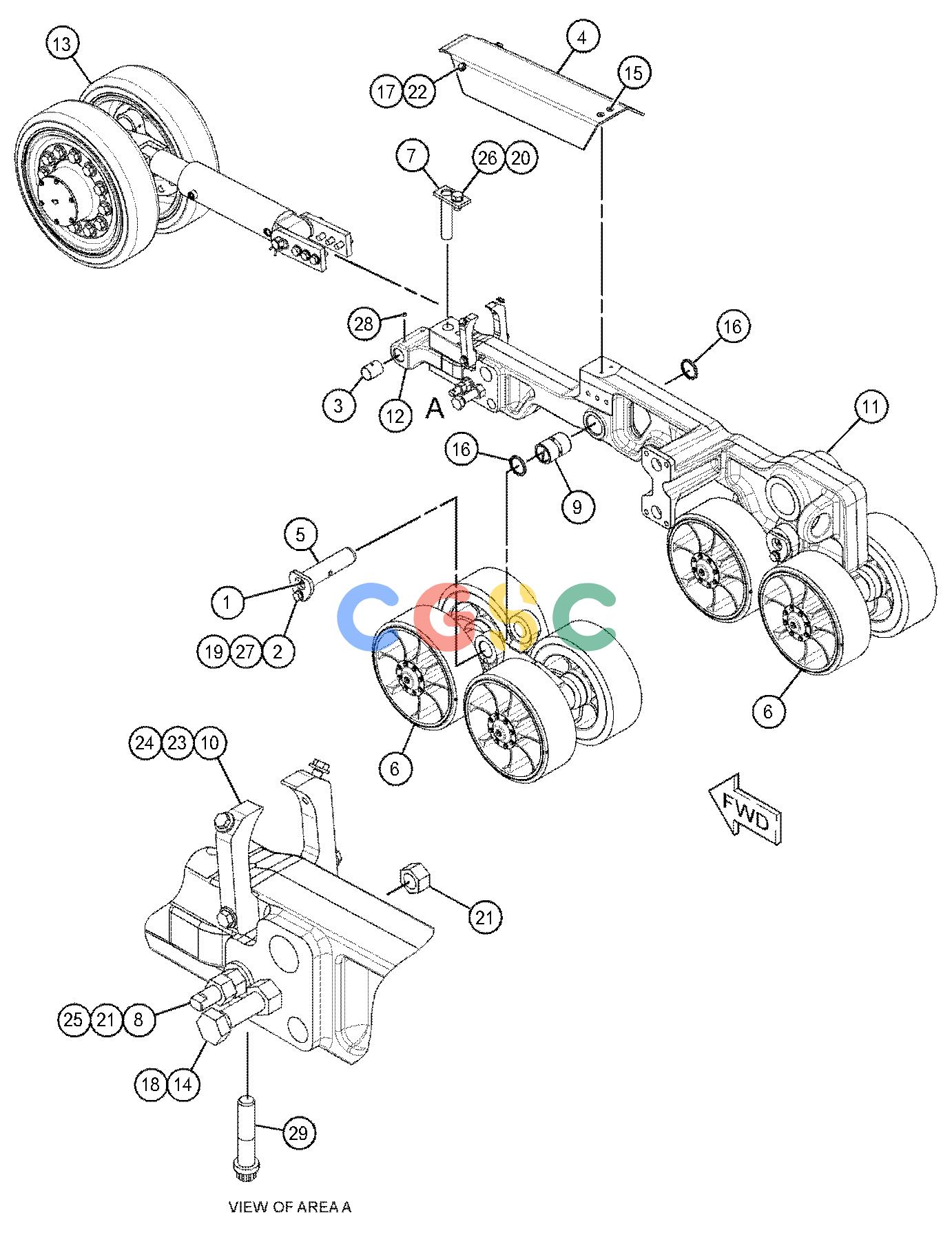

卡特零件查询（AP555F） 452-8189: FRAME GP-TRACK ROLLER
广数供应链运营团队, 17 02月, 2025，浏览：
181 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 6Y-8112 | [2] | SPACER(17X25X14-MM THK) | |
| 3. | 108-4159 | [2] | BUSHING | |
| 4. | 179-6981 | [1] | COVER | |
| 5. | 180-2628 | [2] | PIN AS | |
| 6. | 187-3073Y | [2] | BOGIE GP | |
| 7. | 187-3538 | [1] | PIN AS | |
| 8. | 190-6176 | [1] | ROD | |
| 9. | 563-7370 | [2] | BEARING-SLEEVE | |
| 10. | 340-6247 | [2] | PLATE | |
| 11. | 343-7297 | [1] | FRAME(LH) | |
| 12. | 366-8397 | [1] | ARM | |
| 13. | 440-0212Y | [1] | TENSIONER GP-TRACK(BELT) | |
| 14. | 152-0191M | [1] | BOLT(M24X3X120-MM) | |
| 15. | 3E-4310M | [2] | SCREW-HEX HEAD(M10X1.5X30-MM) | |
| 16. | 7K-9203 | [4] | SEAL-LIP TYPE | |
| 17. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 18. | 8T-4001M | [1] | NUT(M24X3-THD) | |
| 19. | 8T-4122 | [2] | WASHER-HARD(17X32X3.5-MM THK) | |
| 20. | 8T-4123 | [1] | WASHER(22X35X3.5-MM THK) | |
| 21. | 8T-4131M | [3] | NUT(M20X2.5-THD) | |
| 22. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 23. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 24. | 8T-4910M | [2] | BOLT(M12X1.75X60-MM) | |
| 25. | 8T-5439 | [1] | WASHER-HARD(21.5X45X6-MM THK) | |
| 26. | 8T-5460M | [1] | BOLT(M20X2.5X40-MM) | |
| 27. | 8T-7338M | [2] | BOLT(M16X2X45-MM) | |
| 28. | 9F-2247 | [2] | PLUG-PIPE | |
| 29. | 9X-6480M | [2] | BOLT(M20X2.5X90-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
