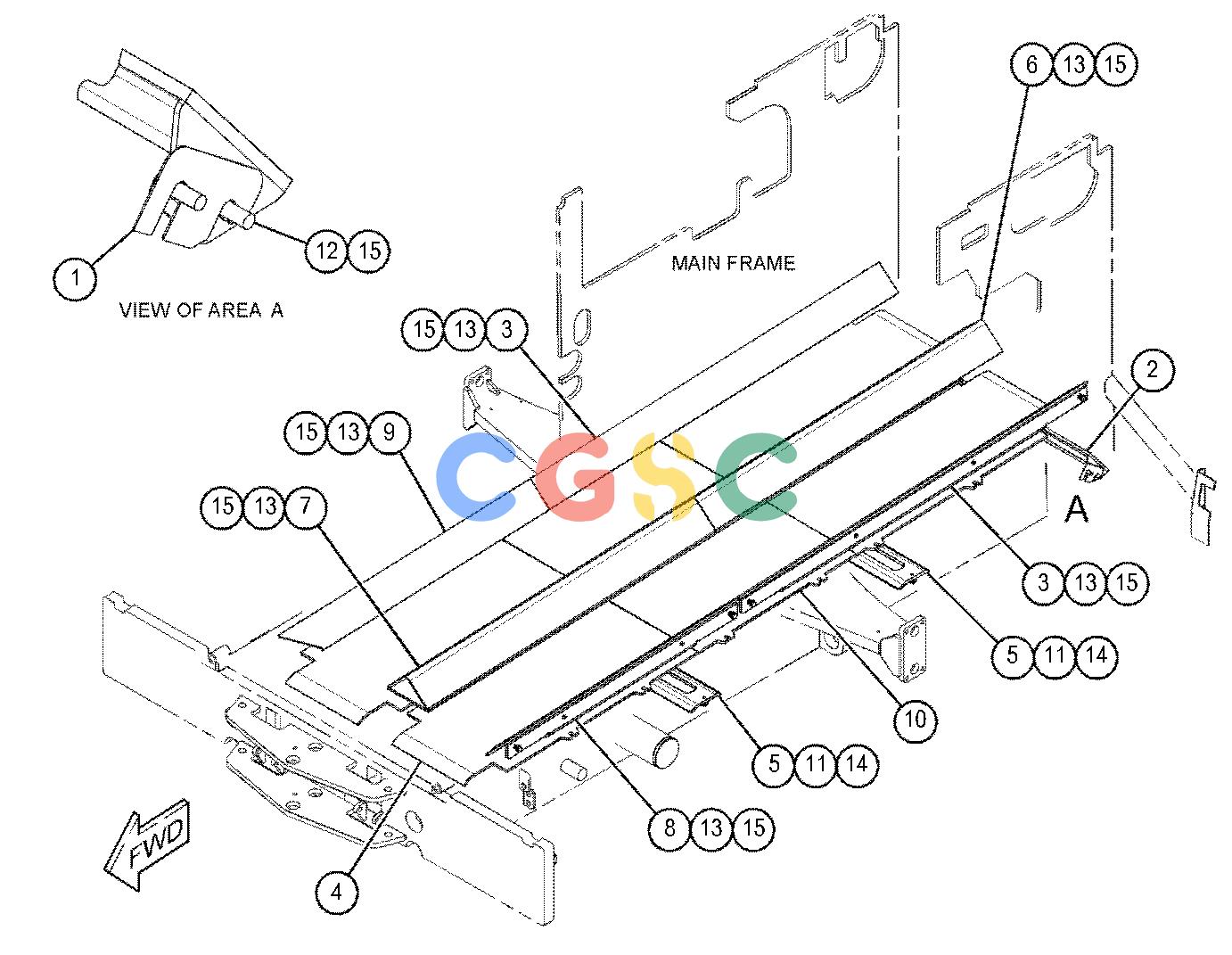

卡特零件查询（AP555F） 451-4633: GUARD GP-CONVEYOR
广数供应链运营团队, 17 02月, 2025，浏览：
920 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 342-9357B | [1] | SHIM(1.5-MM THK) | |
| 2. | 399-3242 | [1] | SUPPORT AS | |
| 3. | 415-4098 | [2] | GUARD AS(REAR) | |
| | | | (EACH INCLUDES) |
| | 5M-7937 | [2] | DOWEL | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 4. | 434-2442 | [4] | PLATE | |
| 5. | 463-2063 | [2] | SUPPORT AS | |
| 6. | 566-7840 | [1] | GUARD AS | |
| 7. | 566-7842 | [1] | GUARD AS | |
| 8. | 451-4630 | [1] | GUARD AS(LH) | |
| | 5M-7937 | [1] | DOWEL | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 9. | 451-4631 | [1] | GUARD AS(RH) | |
| | 5M-7937 | [1] | DOWEL | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 10. | 451-4632 | [2] | PLATE | |
| 11. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 12. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 13. | 8T-4184M | [20] | BOLT(M12X1.75X45-MM) | |
| 14. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 15. | 8T-4223 | [24] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
