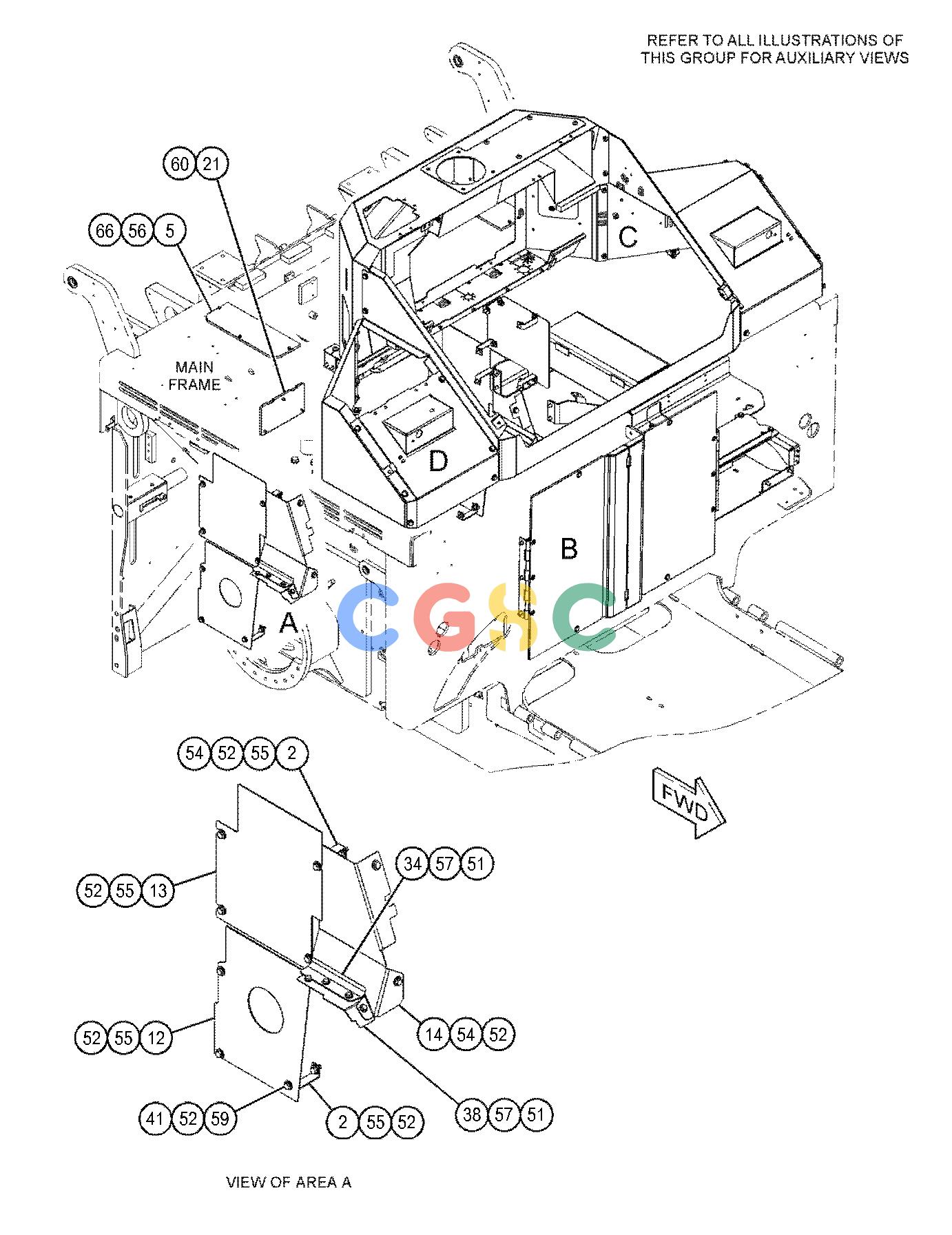

卡特零件查询（AP555F） 455-5408: COVER GP-ACCESS
广数供应链运营团队, 17 02月, 2025，浏览：
763 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8W-0791 | [1] | BOX AS-TOOL | |
| 2. | 280-7350 | [8] | PLATE AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 3. | 332-3113 | [2] | BRACKET AS | |
| 4. | 332-4605 | [2] | PLATE | |
| 5. | 348-1785 | [2] | PLATE | |
| 6. | 446-6628 | [1] | PLATE | |
| 7. | 451-4627 | [1] | PLATE AS | |
| | 5C-9855M | [1] | BOSS(M8X1.25X19-MM) | |
| | 6V-9632M | [6] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [15] | LINK | |
| | 8T-3490M | [16] | NUT-WELD(M10X1.5-THD) | |
| | 091-4537M | [1] | BOSS-THREADED(M6X1X12-MM) | |
| | 178-7023M | [1] | BOSS(M10X1.5X30-MM) | |
| | 178-8505 | [1] | PLATE-WELD | |
| | 8T-3612M | [14] | NUT-WELD(M8X1.25-THD) | |
| 8. | 451-4663 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 9. | 451-4665 | [1] | PLATE AS | |
| | 102-8704 | [1] | PLATE | |
| 10. | 451-4667 | [1] | COVER | |
| 11. | 451-4672 | [1] | PLATE AS | |
| 12. | 451-4676 | [2] | COVER | |
| 13. | 451-4677 | [2] | COVER | |
| 14. | 451-4678 | [1] | COVER | |
| 15. | 451-4679 | [1] | COVER | |
| 16. | 451-4685 | [1] | COVER | |
| 17. | 451-4687 | [1] | COVER AS | |
| | 7T-1099 | [5] | LINK | |
| | 8T-3490M | [9] | NUT-WELD(M10X1.5-THD) | |
| | 9R-2821M | [1] | BOSS(M10X1.5X15-MM) | |
| | 361-5420 | [1] | CLIP | |
| 18. | 451-4689 | [1] | COVER | |
| 19. | 451-4695 | [1] | DOOR AS | |
| 20. | 451-4696 | [1] | DOOR AS | |
| 21. | 451-6279 | [2] | COVER | |
| 22. | 451-6280 | [1] | COVER AS | |
| | 7T-1099 | [3] | LINK | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 23. | 451-6282 | [1] | COVER AS | |
| | 7T-1099 | [2] | LINK | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 24. | 451-6286 | [1] | COVER | |
| 25. | 459-3927 | [1] | COVER AS | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| 26. | 460-4775 | [1] | FOAM | |
| 27. | 460-4778 | [1] | FOAM | |
| 28. | 470-1941 | [1] | SUPPORT AS | |
| 29. | 470-1942 | [1] | SUPPORT AS | |
| | | | (EACH SUPPORT AS INCLUDES) |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 30. | 470-3179 | [1] | COVER | |
| 31. | 471-4236 | [1] | BRACKET | |
| 32. | 471-4237 | [2] | STRIP | |
| 33. | 472-1044 | [1] | BAFFLE | |
| 34. | 472-1047 | [2] | FLASHING | |
| 35. | 472-1048 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 36. | 472-1050 | [2] | STRIP | |
| 37. | 473-2439 | [1] | COVER AS | |
| 38. | 473-2440 | [1] | COVER AS | |
| | | | (EACH COVER AS INCLUDES) |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 39. | 486-7494 | [1] | COVER AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [1] | LINK | |
| | 361-5420 | [1] | CLIP | |
| 40. | 486-7495 | [1] | COVER AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [3] | LINK | |
| | 110-2023M | [2] | STUD-WELD(M10X1.5X25-MM) | |
| | 361-5420 | [1] | CLIP | |
| 41. | 198-4777 | [2] | WASHER-HARD(11X25X10-MM THK) | |
| 42. | 234-0091 | [11] | RIVET | |
| 43. | 238-0251M | [6] | SCREW-BUTTON HEAD(M10X1.5X25-MM) | |
| 44. | 332-2643 | [2] | HINGE AS | |
| 45. | 344-5674M | [12] | NUT(M8X1.25-THD) | |
| 46. | 344-5675M | [12] | NUT(M10X1.5-THD) | |
| 47. | 451-4657 | [1] | BRACKET AS | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3490M | [5] | NUT-WELD(M10X1.5-THD) | |
| | 361-5420 | [1] | CLIP | |
| 48. | 451-4666 | [1] | PLATE AS | |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 49. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 50. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 51. | 5P-4116 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 52. | 7X-7729 | [118] | WASHER(11X25X3-MM THK) | |
| 53. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 54. | 8T-4136M | [28] | BOLT(M10X1.5X25-MM) | |
| 55. | 8T-4137M | [74] | BOLT(M10X1.5X20-MM) | |
| 56. | 8T-4138M | [6] | BOLT(M6X1X20-MM) | |
| 57. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 58. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 59. | 8T-4195M | [6] | BOLT(M10X1.5X30-MM) | |
| 60. | 8T-4199M | [6] | BOLT(M8X1.25X12-MM) | |
| 61. | 8T-4200M | [3] | BOLT(M8X1.25X16-MM) | |
| 62. | 8T-4224 | [9] | WASHER-HARD(8.8X16X2-MM THK) | |
| 63. | 8T-6869M | [6] | BOLT(M8X1.25X60-MM) | |
| 64. | 9X-2040M | [2] | SCREW-TRUSS HEAD(M10X1.5X25-MM) | |
| 65. | 9X-2041M | [4] | SCREW-TRUSS HEAD(M10X1.5X20-MM) | |
| 66. | 9X-8256 | [10] | WASHER(6.6X12X2-MM THK) | |
| 67. | 5P-5930D | | SEAL(0.5-M) | |
| 67A. | 5P-5930D | | SEAL(0.1-M EACH) | |
| 67B. | 5P-5930D | | SEAL(0.2-M) | |
| 68. | 6V-5732D | | TRIM(0.2-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
