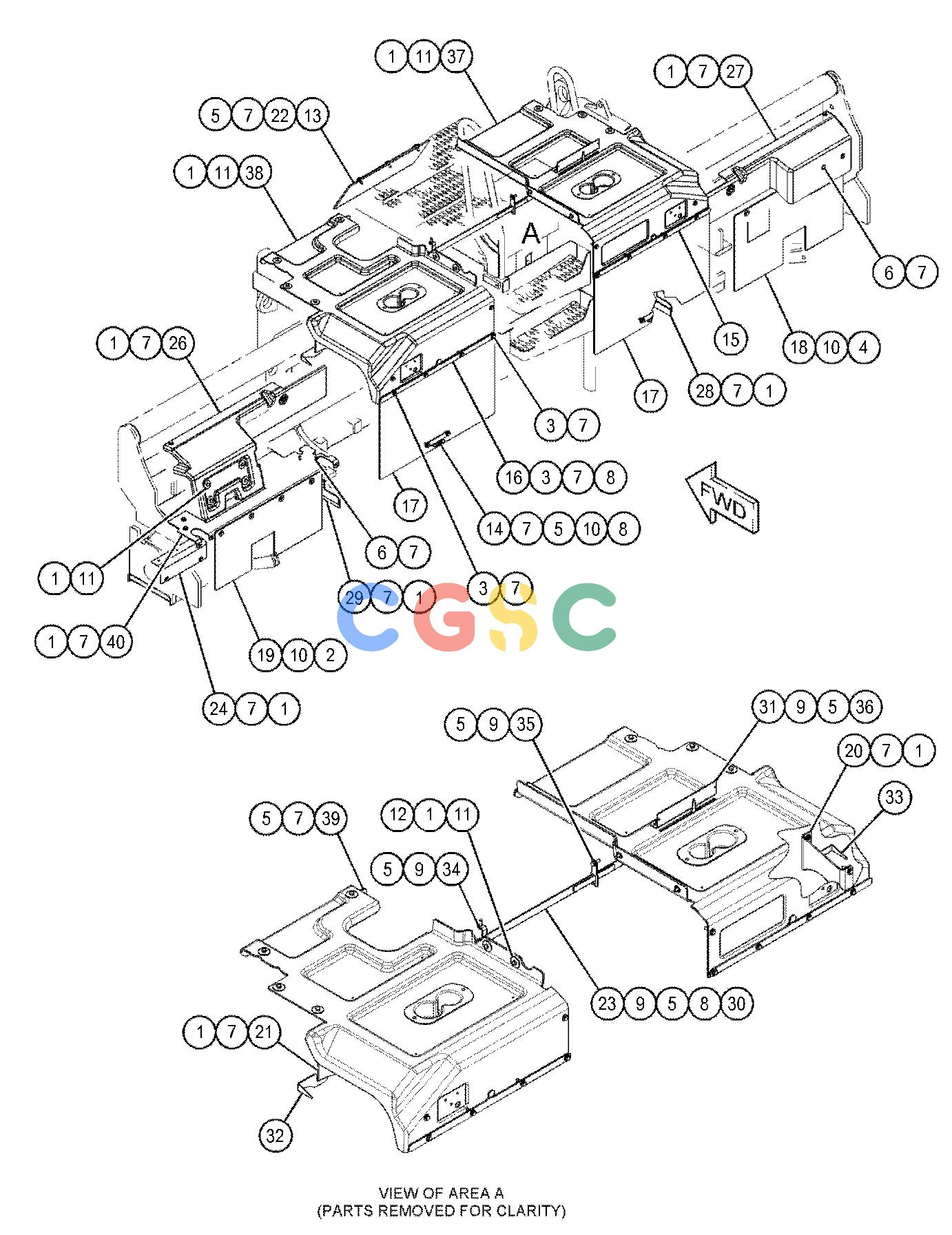

卡特零件查询（AP555F） 473-3307: COVER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
948 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4136M | [35] | BOLT(M10X1.5X25-MM) | |
| 2. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 3. | 8T-4186M | [12] | BOLT(M10X1.5X40-MM) | |
| 4. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 5. | 8T-4195M | [14] | BOLT(M10X1.5X30-MM) | |
| 6. | 9X-2040M | [4] | SCREW-TRUSS HEAD(M10X1.5X25-MM) | |
| 7. | 7X-7729 | [48] | WASHER(11X25X3-MM THK) | |
| 8. | 8T-0389M | [9] | LOCKNUT(M10X1.5-THD) | |
| 9. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4222 | [12] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 11. | 8T-4226 | [16] | WASHER-PLATED(10.5X45X3-MM THK) | |
| 12. | 8T-7934 | [4] | WASHER-HARD(11X21X5-MM THK) | |
| 13. | 399-1702 | [1] | COVER-RUBBER | |
| 14. | 417-2470 | [2] | PLATE | |
| 15. | 439-4433 | [1] | PLATE | |
| 16. | 439-4434 | [1] | PLATE | |
| 17. | 439-4435 | [2] | COVER-RUBBER | |
| 18. | 439-4436 | [1] | COVER-RUBBER | |
| 19. | 439-4437 | [1] | COVER-RUBBER | |
| 20. | 441-6212 | [1] | BRACKET AS | |
| 21. | 441-6220 | [1] | BRACKET AS | |
| | | | (EACH BRACKET AS INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 22. | 441-6244 | [1] | PLATE | |
| 23. | 450-5670 | [1] | PLATE | |
| 24. | 466-6330 | [2] | COVER | |
| 26. | 473-2328 | [1] | COVER(LH) | |
| 27. | 473-2329 | [1] | COVER(RH) | |
| 28. | 477-2958 | [1] | COVER AS | |
| 29. | 477-2959 | [1] | COVER AS | |
| 30. | 481-5711 | [2] | STRIP | |
| 31. | 481-5725 | [1] | PLATE | |
| 32. | 481-8935 | [1] | BRACKET | |
| 33. | 484-1092 | [1] | BRACKET | |
| 34. | 486-9536 | [1] | BRACKET | |
| 35. | 486-9537 | [1] | BRACKET | |
| 36. | 486-9538 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 37. | 494-8311 | [1] | COVER AS(RH) | |
| 38. | 494-8312 | [1] | COVER AS(LH) | |
| | | | (EACH COVER AS INCLUDES) |
| | 6C-3681 | [2] | RIVET-POP | |
| 39. | 494-8315 | [1] | BRACKET AS | |
| | 9R-2821M | [1] | BOSS(M10X1.5X15-MM) | |
| 40. | 498-7912 | [1] | COVER AS | |
| | 8T-3490M | [8] | NUT-WELD(M10X1.5-THD) | |
| | 9R-2821M | [1] | BOSS(M10X1.5X15-MM) | |
| | M | | METRIC PART |
