卡特零件查询（AP555F） 486-7508: COVER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
489 次

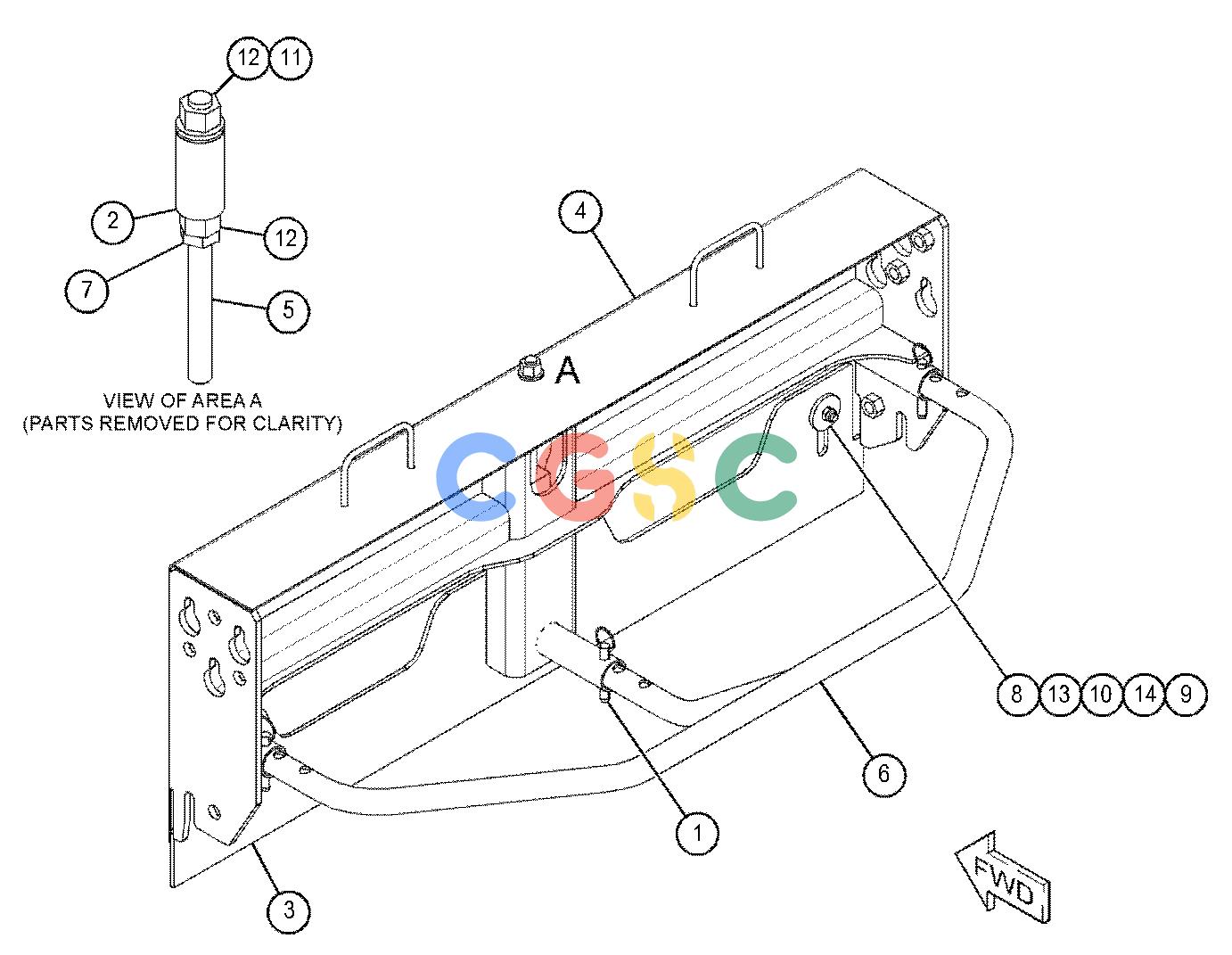

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5E-9892 | [3] | PIN | |
| 2. | 9W-9953 | [1] | SLEEVE | |
| 3. | 394-7621 | [1] | GATE AS | |
| 4. | 394-7628 | [1] | COVER AS | |
| | 355-8941M | [8] | NUT-WELD(M16X2-THD) | |
| 5. | 455-9807 | [1] | ROD AS | |
| | 8T-4132M | [1] | NUT(M16X2-THD) | |
| 6. | 482-9007 | [1] | TUBE AS | |
| 7. | 098-5747M | [1] | NUT(M16X2-THD) | |
| 8. | 115-6433 | [2] | WASHER(11X50X6-MM THK) | |
| 9. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 10. | 8T-0389M | [2] | LOCKNUT(M10X1.5-THD) | |
| 11. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 12. | 8T-4132M | [1] | NUT(M16X2-THD) | |
| 13. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 14. | 9C-2979 | [2] | SPACER(10.5X16X7-MM THK) | |
| | M | | METRIC PART |
