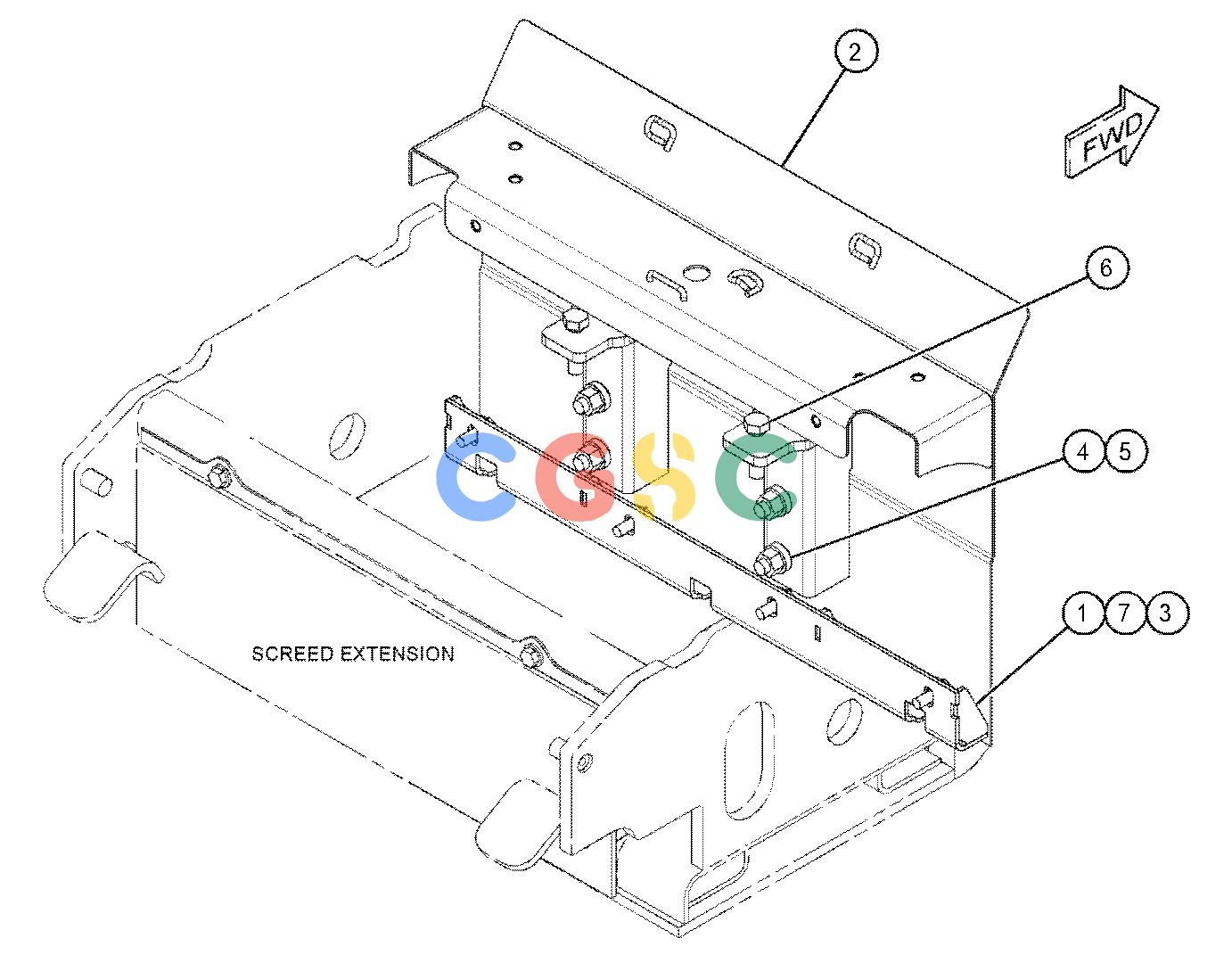

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 451-2927 | [1] | BRACKET AS | |
| 2. | 451-2928 | [1] | DEFLECTOR AS | |
| 7T-1099 | [3] | LINK | ||
| 7X-2553M | [4] | BOLT(M16X2X40-MM) | ||
| 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | ||
| 3. | 198-4778 | [4] | WASHER-HARD(13.5X30X12-MM THK) | |
| 4. | 198-4780 | [4] | WASHER-HARD(17.5X32X8-MM THK) | |
| 5. | 176-5311M | [4] | LOCKNUT(M16X2-THD) | |
| 6. | 8T-4140M | [2] | BOLT(M16X2X60-MM) | |
| 7. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| M | METRIC PART | |||
