卡特零件查询（AP555F） 428-4898: DEFLECTOR GP
广数供应链运营团队, 17 02月, 2025，浏览：
144 次

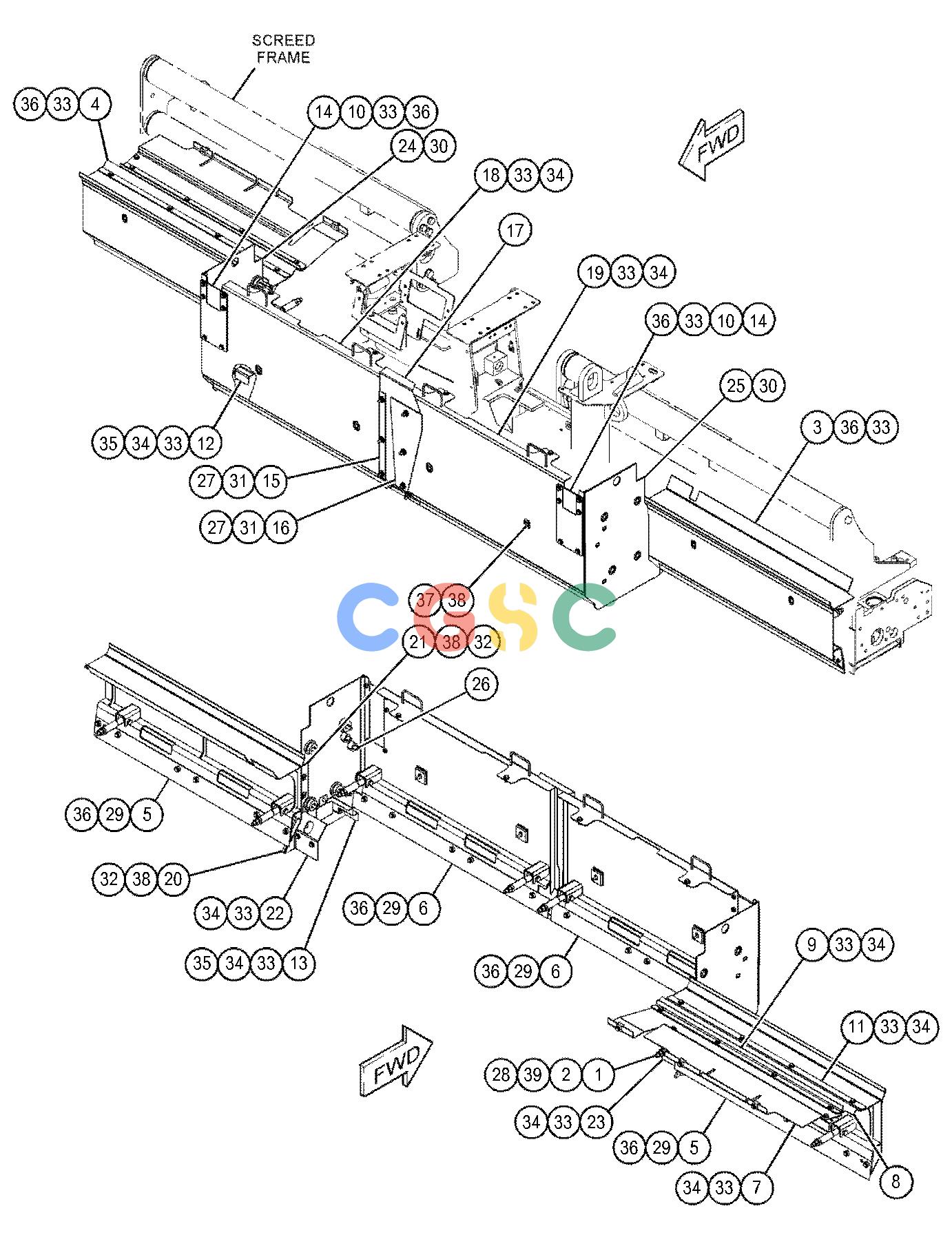

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 394-7240 | [8] | ROD AS-ADJUSTING | |
| 2. | 422-4637M | [8] | NUT(M30X2-THD) | |
| 3. | 492-1870 | [1] | DEFLECTOR AS | |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 4. | 436-0178 | [1] | DEFLECTOR AS | |
| | 8T-3490M | [11] | NUT-WELD(M10X1.5-THD) | |
| 5. | 436-0198 | [2] | BLADE(EXTENDER) | |
| 6. | 436-0199 | [2] | BLADE(MAIN) | |
| 7. | 500-3848 | [1] | COVER AS(EXTENDER, RH) | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| | 8X-5147M | [3] | BLOCK(M10X1.5-MM) | |
| 8. | 439-4411 | [1] | COVER-RUBBER | |
| 9. | 439-4412 | [1] | PLATE | |
| 10. | 446-5662 | [2] | PLATE-COVER | |
| 11. | 449-0303 | [1] | PLATE | |
| 12. | 521-9298 | [1] | COVER(RH) | |
| 13. | 521-9299 | [1] | COVER(LH) | |
| 14. | 474-4538 | [2] | COVER-RUBBER | |
| 15. | 476-5422 | [1] | PLATE | |
| 16. | 476-5423 | [1] | PLATE | |
| 17. | 476-5424 | [1] | COVER | |
| 18. | 477-8130 | [1] | DEFLECTOR AS(MAIN, RH) | |
| 19. | 477-8131 | [1] | DEFLECTOR AS(MAIN, LH) | |
| | | | (EACH DEFLECTOR AS INCLUDES) |
| | 8T-3490M | [11] | NUT-WELD(M10X1.5-THD) | |
| | 112-9073M | [4] | STUD-WELD(M12X1.75X21.1-MM) | |
| 20. | 478-1915 | [2] | COVER | |
| 21. | 478-1916 | [2] | PLATE | |
| 22. | 478-2792 | [1] | COVER | |
| 23. | 478-2794 | [1] | COVER | |
| 24. | 478-3818 | [1] | PLATE AS(RH) | |
| 25. | 478-3819 | [1] | PLATE AS(LH) | |
| | | | (EACH PLATE AS INCLUDES) |
| | 8T-4219M | [1] | STUD-WELD(M10X1.5X17.5-MM) | |
| | 8T-4967M | [2] | STUD-WELD(M10X1.5X23-MM) | |
| 26. | 479-6661M | [6] | SETSCREW(M16X2X30-MM) | |
| 27. | 129-3180M | [8] | LOCKNUT(M12X1.75-THD) | |
| 28. | 176-5311M | [8] | LOCKNUT(M16X2-THD) | |
| 29. | 198-4777 | [22] | WASHER-HARD(11X25X10-MM THK) | |
| 30. | 342-9917M | [8] | BOLT-FLANGE HEAD(M16X2X40-MM) | |
| 31. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 32. | 6V-7744M | [6] | LOCKNUT(M10X1.5-THD) | |
| 33. | 7X-7729 | [41] | WASHER(11X25X3-MM THK) | |
| 34. | 8T-4136M | [23] | BOLT(M10X1.5X25-MM) | |
| 35. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 36. | 8T-4195M | [38] | BOLT(M10X1.5X30-MM) | |
| 37. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 38. | 8T-4222 | [10] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 39. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
