卡特零件查询（AP555F） 445-5893: DOOR GP-ACCESS
广数供应链运营团队, 17 02月, 2025，浏览：
565 次

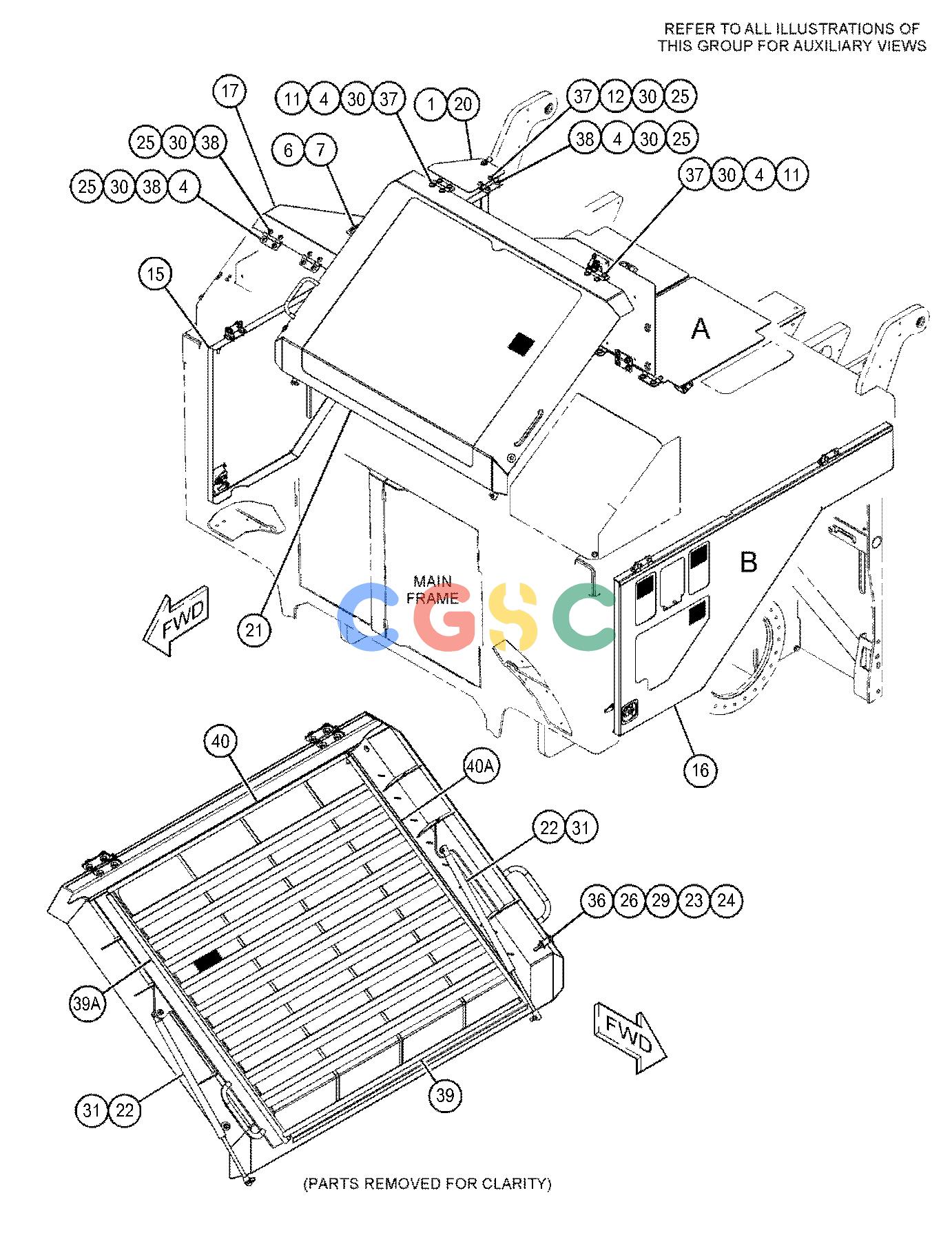

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9G-5582 | [1] | LOCK AS-CYLINDER | |
| | 226-0294J | [1] | LOCK AS | |
| | 226-0340 | [1] | CAM | |
| 2. | 108-7756 | [2] | ROD | |
| 3. | 111-1777 | [4] | BUMPER-RUBBER | |
| 4. | 142-6950 | [11] | HINGE AS | |
| 5. | 305-3159 | [2] | PAWL | |
| 6. | 305-3169 | [3] | PAWL | |
| 7. | 326-0610 | [5] | LATCH AS | |
| | | | (EACH INCLUDES) |
| | 1H-3244 | [4] | LOCKWASHER | |
| | 095-1207M | [2] | NUT(M12X1.75-THD) | |
| | 326-0612 | [2] | WASHER-TAB | |
| | 344-5673M | [4] | NUT(M6X1-THD) | |
| 8. | 333-6459 | [1] | BRACKET | |
| 9. | 399-2461 | [4] | HINGE AS | |
| 10. | 399-2464 | [2] | BAR | |
| 11. | 399-2470 | [8] | PLATE AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 12. | 399-2478 | [1] | SPACER | |
| 13. | 399-2485 | [2] | SPACER | |
| 14. | 450-3335 | [1] | DOOR AS | |
| 15. | 505-6726 | [1] | DOOR AS(LH) | |
| | 8T-4967M | [2] | STUD-WELD(M10X1.5X23-MM) | |
| 16. | 549-9049 | [1] | DOOR AS(RH) | |
| | 110-2023M | [2] | STUD-WELD(M10X1.5X25-MM) | |
| 17. | 451-4697 | [1] | DOOR(TOP) | |
| 18. | 451-6284 | [1] | DOOR AS | |
| 19. | 455-7269 | [1] | DOOR AS | |
| | 7T-1099 | [2] | LINK | |
| | 091-4537M | [1] | BOSS-THREADED(M6X1X12-MM) | |
| | 361-5420 | [1] | CLIP | |
| 20. | 455-7693 | [1] | PLATE | |
| 21. | 460-2962 | [1] | DOOR AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 22. | 467-4315 | [2] | SPRING AS-GAS(ROD END) | |
| 23. | 039-2281 | [2] | SPACER(9X16X25-MM THK) | |
| 24. | 344-5674M | [2] | NUT(M8X1.25-THD) | |
| 25. | 344-5675M | [44] | NUT(M10X1.5-THD) | |
| 26. | 384-1628 | [2] | WASHER-HARD(8.8X35X4-MM THK) | |
| 27. | 3B-4617 | [2] | PIN-COTTER | |
| 28. | 5C-9853M | [4] | SCREW(M8X1.25-THD) | |
| 29. | 7X-0579 | [2] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 30. | 7X-7729 | [70] | WASHER(11X25X3-MM THK) | |
| 31. | 8T-2444 | [4] | STUD-BALL | |
| 32. | 8T-4137M | [8] | BOLT(M10X1.5X20-MM) | |
| 33. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 34. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 35. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 36. | 8T-6869M | [2] | BOLT(M8X1.25X60-MM) | |
| 37. | 9X-2040M | [22] | SCREW-TRUSS HEAD(M10X1.5X25-MM) | |
| 38. | 9X-2041M | [30] | SCREW-TRUSS HEAD(M10X1.5X20-MM) | |
| 39. | 5P-6410D | | SEAL(0.1-M) | |
| 39A. | 5P-6410D | | SEAL(1-M) | |
| 40. | 5P-7211D | | SEAL(0.1-M) | |
| 40A. | 5P-7211D | | SEAL(1-M) | |
| | D | | ORDER BY THE METER |
| | J | | REQUIRES CORPORATE KEY |
| | M | | METRIC PART |
