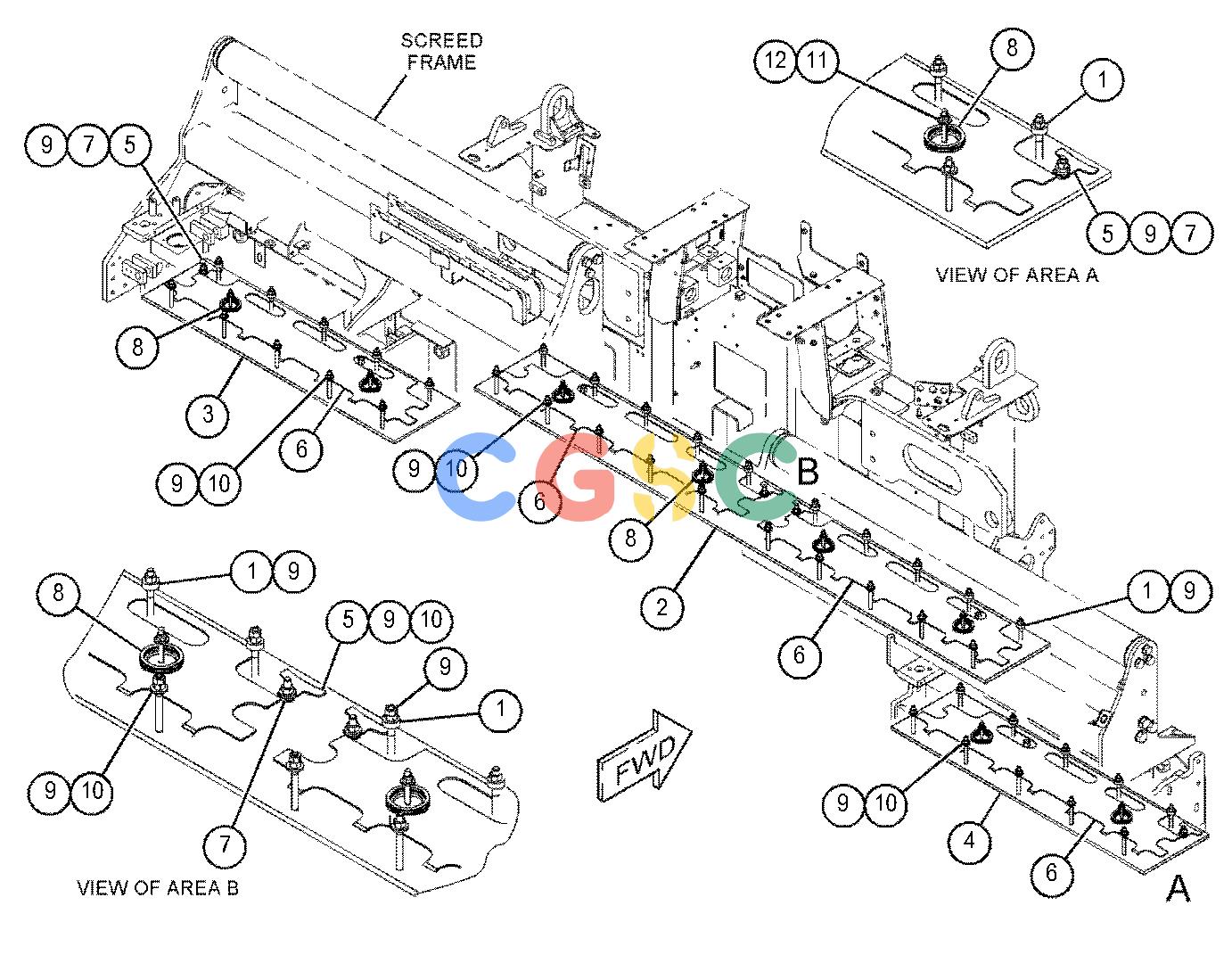

卡特零件查询（AP555F） 428-4929: PLATE GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
374 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 198-4778 | [20] | WASHER-HARD(13.5X30X12-MM THK) | |
| 2. | 472-6152 | [1] | PLATE GP-SCREED(MAIN) | |
| | 350-7866M | [2] | STUD(M12X1.75X58-MM) | |
| | 419-4908M | [10] | STUD(M12X1.75X135-MM) | |
| | 448-9445M | [10] | STUD(M12X1.75X115-MM) | |
| 3. | 437-4350 | [1] | PLATE GP-SCREED(EXTENSION, LH) | |
| 4. | 437-4351 | [1] | PLATE GP-SCREED(EXTENSION, RH) | |
| | | | (EACH PLATE GP INCLUDES) |
| | 419-4908M | [5] | STUD(M12X1.75X135-MM) | |
| | 350-7866M | [1] | STUD(M12X1.75X58-MM) | |
| | 448-9445M | [5] | STUD(M12X1.75X115-MM) | |
| 5. | 481-5924 | [4] | PLATE | |
| 6. | 459-8204 | [4] | PLATE AS | |
| 7. | 039-8557 | [8] | WASHER(13X26X6-MM THK) | |
| 8. | 256-4556 | [8] | SPRING-WAVE | |
| 9. | 329-3356M | [48] | NUT(M12X1.75-THD) | |
| 10. | 5P-1076 | [22] | WASHER-HARD(13.5X30X4-MM THK) | |
| 11. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 12. | 8T-0389M | [8] | LOCKNUT(M10X1.5-THD) | |
| | M | | METRIC PART |
