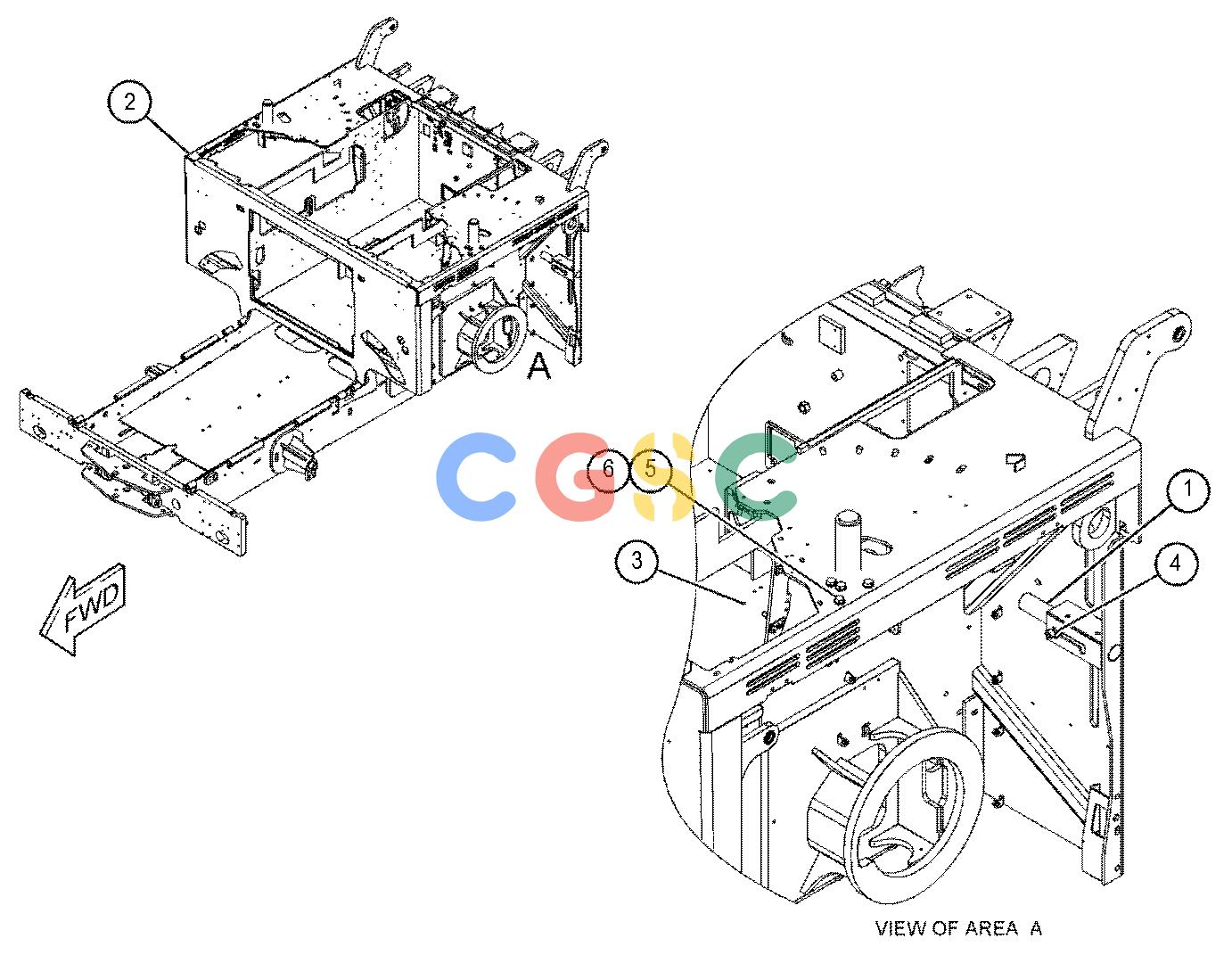

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 253-7897 | [2] | BAR | |
| 2. | 456-5714 | [1] | FRAME AS | |
| 3. | 7X-2621M | [1] | BOLT(M10X1.5X12-MM) | |
| 4. | 8T-2393M | [2] | BOLT-SOCKET HEAD(M16X2X60-MM) | |
| 5. | 8T-4122 | [8] | WASHER-HARD(17X32X3.5-MM THK) | |
| 6. | 8T-4193M | [8] | BOLT(M16X2X50-MM) | |
| M | METRIC PART | |||
