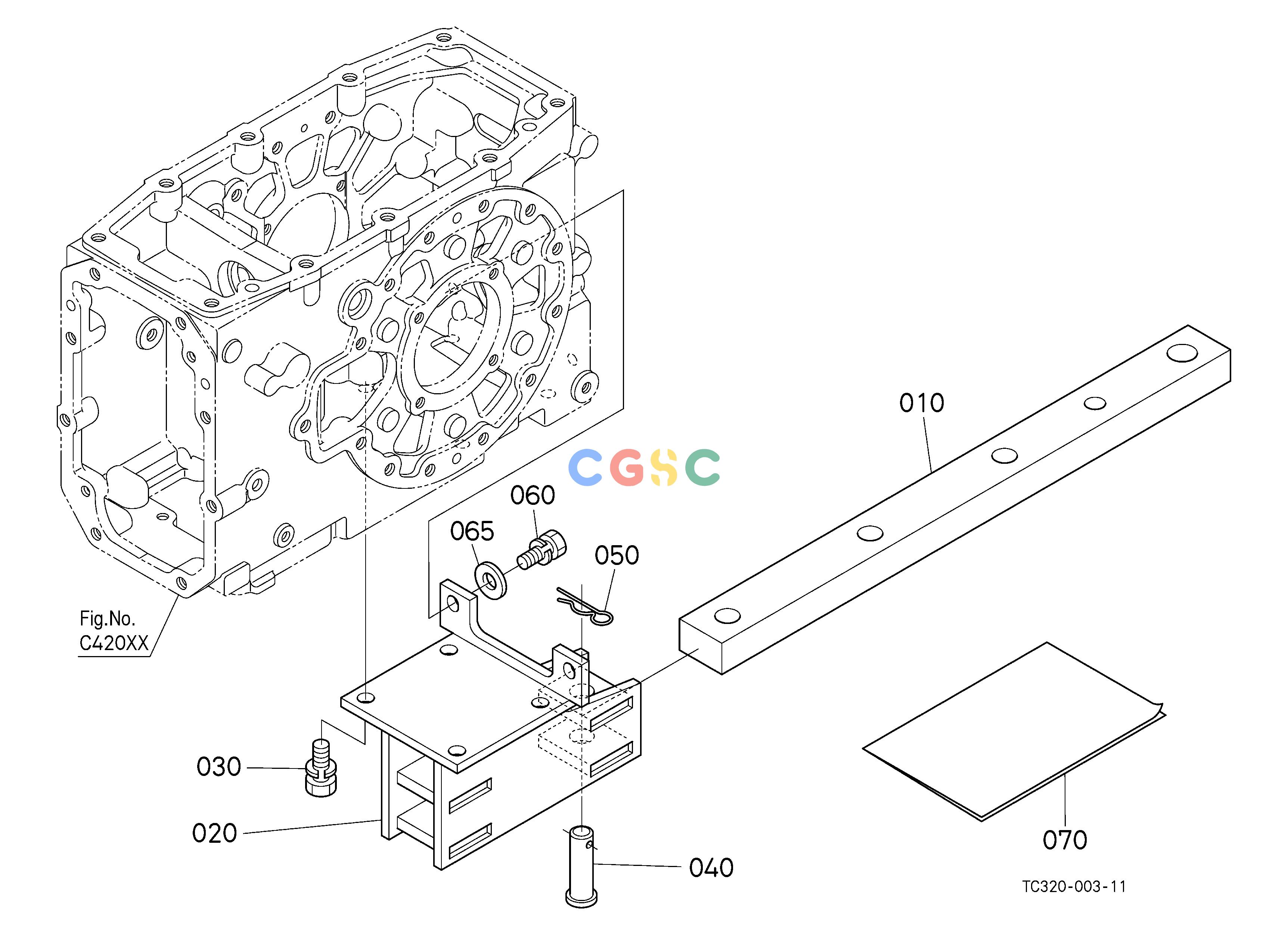

久保田零件查询T14600 DRAWBAR (W/G. No.L9491) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
967 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC22029710
|
[1] |
DRAWBAR
|
15.4000(lbs); 7.000
|
| 020. |
TC22329730
|
[1] |
FRAME,DRAWBAR
|
13.6400(lbs); 6.200
|
| 020. |
TC42029730
|
[1] |
FRAME,DRAWBAR
|
13.6400(lbs); 6.200
|
| 030. |
0113851430
|
[4] |
BOLT,SEMS
|
0.1210(lbs); 0.055
|
| 040. |
0512252070
|
[1] |
PIN,JOINT
|
0.4048(lbs); 0.184
|
| 050. |
0551551600
|
[1] |
PIN,SNAP
|
0.0154(lbs); 0.007
|
| 060. |
0113351230
|
[2] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 065. |
0401360120
|
[2] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 070. |
99999-99999
|
[1] |
MANUAL,ASSEMBLY
|
0.0000(lbs); 0.000
|
