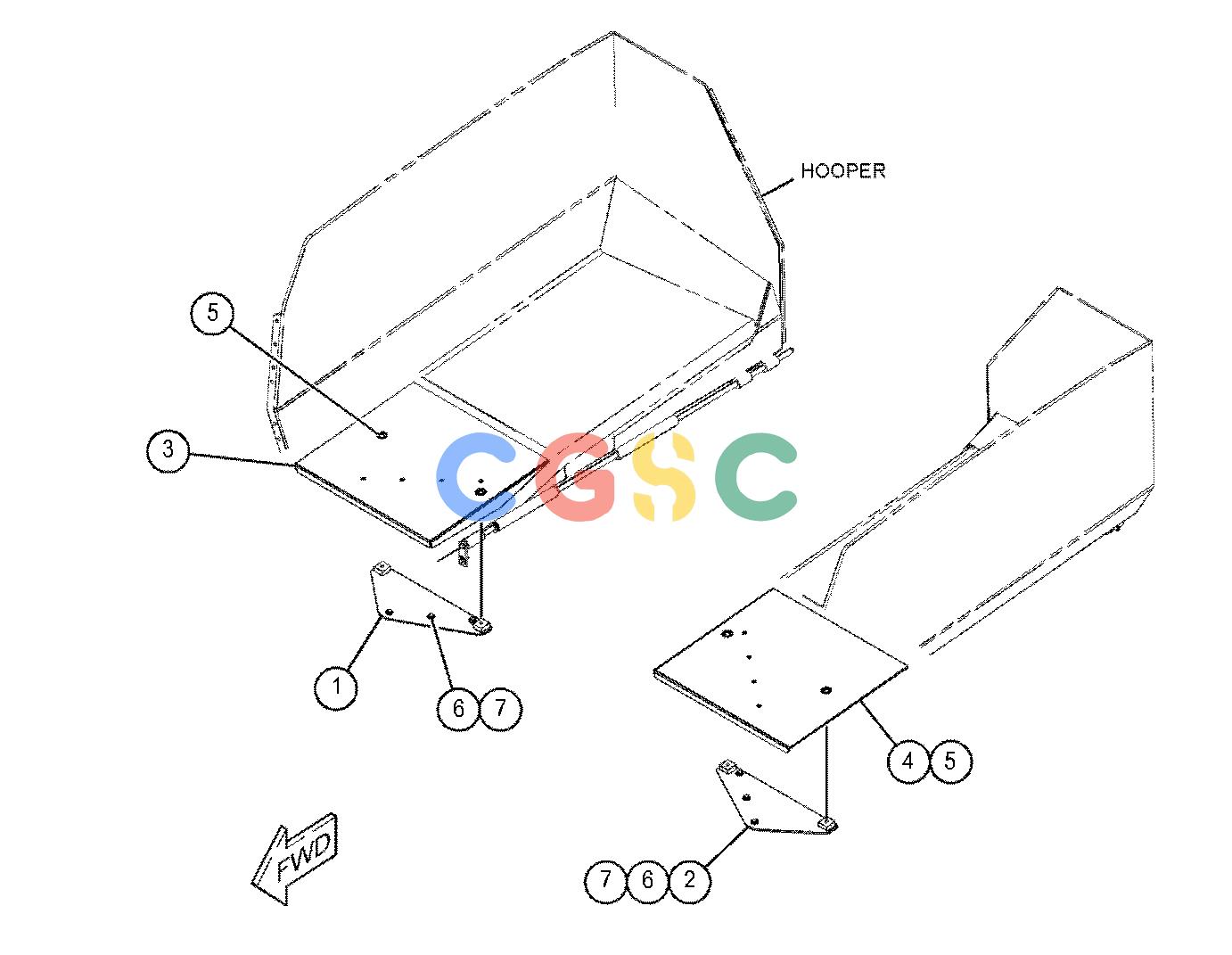

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 467-1890 | [1] | PLATE AS | |
| 2. | 467-1893 | [1] | PLATE AS | |
| 3. | 467-1894 | [1] | PLATE AS | |
| 8T-3597M | [4] | NUT-WELD(M12X1.75-THD) | ||
| 4. | 467-1898 | [1] | PLATE AS | |
| 8T-3597M | [4] | NUT-WELD(M12X1.75-THD) | ||
| 5. | 342-9917M | [4] | BOLT-FLANGE HEAD(M16X2X40-MM) | |
| 6. | 5P-1076 | [6] | WASHER-HARD(13.5X30X4-MM THK) | |
| 7. | 8T-4139M | [6] | BOLT(M12X1.75X30-MM) | |
| M | METRIC PART | |||
