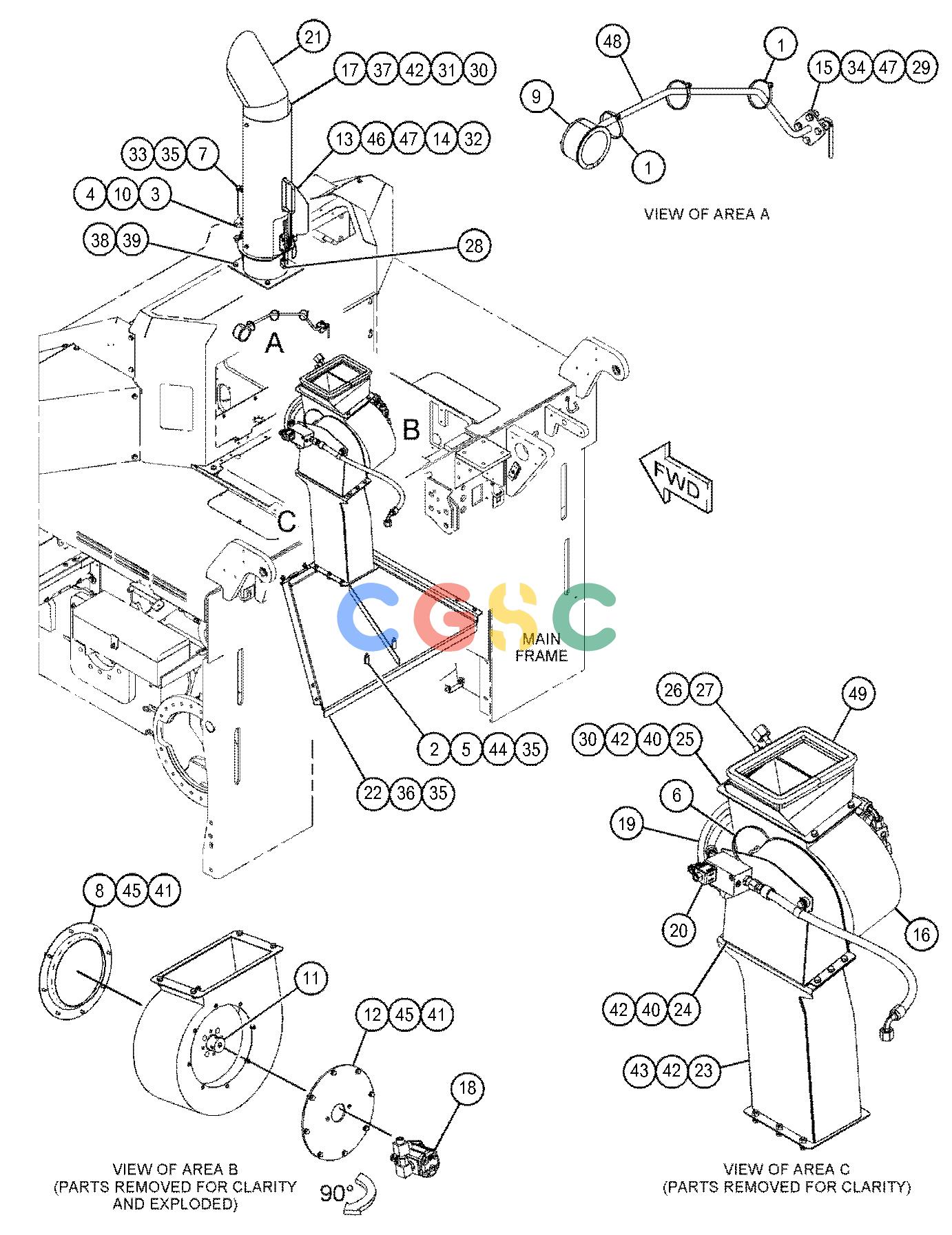

卡特零件查询（AP555F） 445-5894: VENTILATION GP-PAVER
广数供应链运营团队, 17 02月, 2025，浏览：
116 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [3] | STRAP-CABLE | |
| 2. | 4W-7627 | [2] | SPACER(11X19X37-MM THK) | |
| 3. | 5E-9892 | [2] | PIN | |
| 4. | 5P-7958 | [2] | SLEEVE-CABLE SPLICE | |
| 5. | 6W-9789 | [1] | BAR | |
| 6. | 7K-1181 | [1] | STRAP-CABLE | |
| 7. | 114-9284 | [1] | BUMPER | |
| 8. | 143-3500 | [1] | INLET-BLOWER | |
| 9. | 150-8702 | [1] | GAUGE-DIFFERENTIAL PRESSURE(PAVER VENTILATION) | |
| 10. | 179-9392 | [2] | LANYARD | |
| 11. | 234-9162 | [1] | BLOWER GP-PAVER VENTILATION | |
| | 3B-8601 | [2] | SETSCREW-SOCKET(3/8-16X0.5-IN) | |
| 12. | 236-2581 | [1] | PLATE | |
| 13. | 289-2175 | [1] | COVER | |
| 14. | 301-5155 | [1] | TUBE | |
| 15. | 301-5714 | [1] | ADAPTER AS | |
| 16. | 331-5812 | [1] | HOUSING AS | |
| | 147-8904 | [1] | HOUSING AS-BLOWER | |
| 17. | 443-8705 | [1] | SHIELD | |
| 18. | 447-9854Y | [1] | MOTOR & MTG GP-VENTILATION | |
| 19. | 447-9855Y | [1] | LINES GP-HYDRAULIC(FAN, VENTALATION) | |
| 20. | 447-9856Y | [1] | VALVE & MTG GP-FLOW CONTROL | |
| 21. | 453-1060 | [1] | STACK AS | |
| | 107-6125 | [1] | HINGE AS | |
| 22. | 455-7400 | [1] | TRAY AS | |
| 23. | 458-9436 | [1] | DUCT AS | |
| | 8T-3612M | [12] | NUT-WELD(M8X1.25-THD) | |
| 24. | 458-9440 | [1] | DUCT AS | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 25. | 458-9443 | [1] | DUCT AS | |
| 26. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 27. | 204-2281 | [2] | STRAP-CABLE | |
| 28. | 232-3121M | [1] | NUT(M10X1.25-THD) | |
| 29. | 344-5673M | [4] | NUT(M6X1-THD) | |
| 30. | 344-5674M | [8] | NUT(M8X1.25-THD) | |
| 31. | 397-9301 | [4] | WASHER-HARD(11.5X20X15-MM THK) | |
| 32. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 33. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 34. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 35. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 36. | 7X-2536M | [8] | BOLT(M8X1.25X14-MM) | |
| 37. | 7X-2537M | [4] | BOLT(M8X1.25X35-MM) | |
| 38. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 39. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 40. | 8T-4189M | [10] | BOLT(M8X1.25X20-MM) | |
| 41. | 8T-4205 | [16] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 42. | 8T-4224 | [28] | WASHER-HARD(8.8X16X2-MM THK) | |
| 43. | 8T-4908M | [6] | BOLT(M8X1.25X25-MM) | |
| 44. | 8T-6869M | [2] | BOLT(M8X1.25X60-MM) | |
| 45. | 8T-9364 | [16] | BOLT(1/4-20X0.625-IN) | |
| 46. | 8U-5746M | [1] | BOLT(M6X1X75-MM) | |
| 47. | 9X-8256 | [10] | WASHER(6.6X12X2-MM THK) | |
| 48. | 144-0195E | | HOSE(67-CM) | |
| 49. | 123-3827E | | SEAL(87-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
