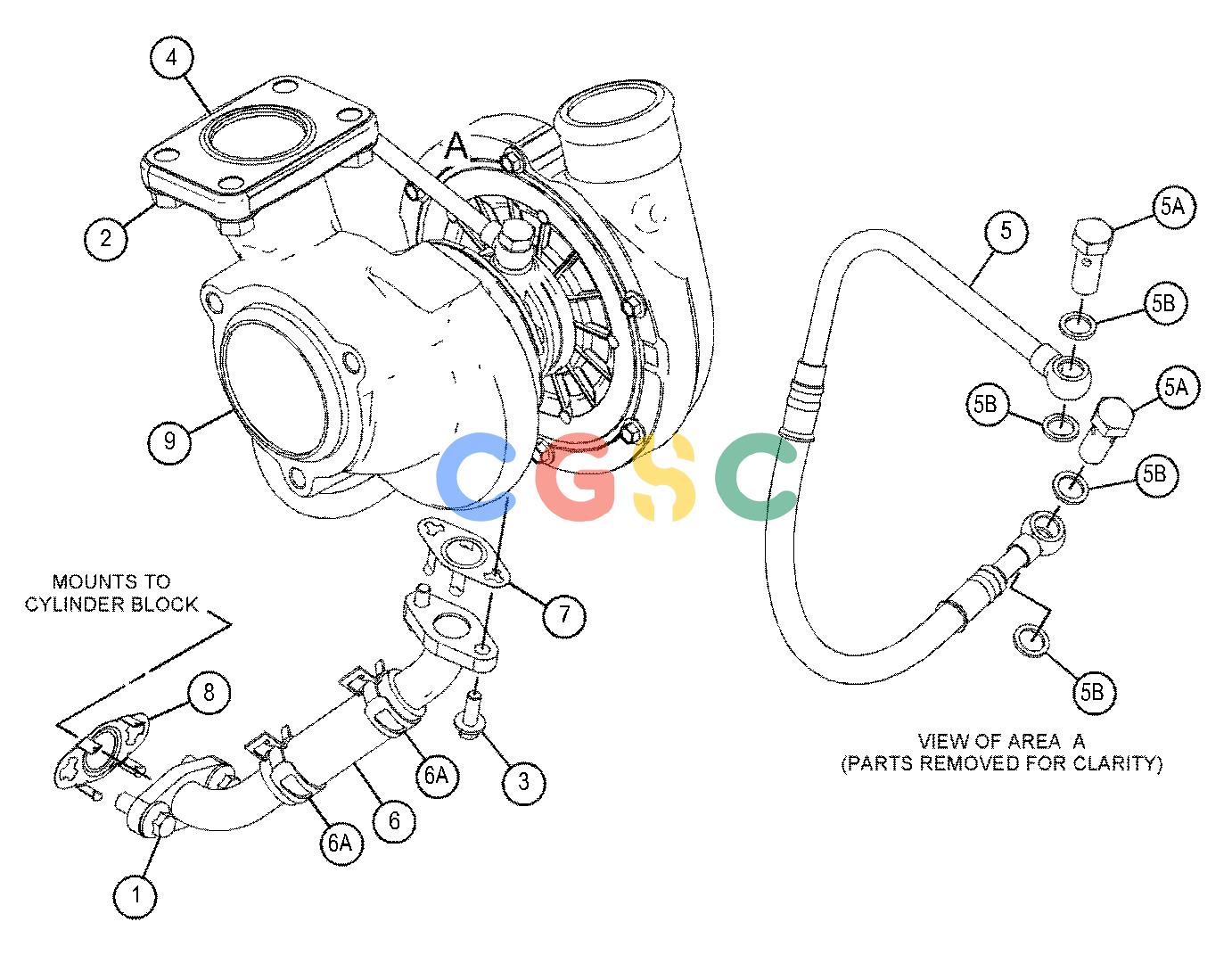

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6I-0217M | [2] | BOLT(M8X1.25X20-MM) | |
| 2. | 6I-0563M | [4] | NUT(M10X1.5-THD) | |
| 3. | 106-8916M | [2] | BOLT(M6X16-MM) | |
| 4. | 194-5390 | [1] | GASKET-MANIFOLD | |
| 5. | 298-4566 | [1] | TUBE AS | |
| 5A. | 225-8524 | [2] | BOLT-SPECIAL | |
| 5B. | 225-8526 | [4] | WASHER(10.4X13.75X1.37-MM THK) | |
| 6. | 507-5015 | [1] | LINE AS | |
| 6A. | 269-3086 | [2] | CLAMP-BAND | |
| 7. | 353-3477 | [1] | GASKET-TURBOCHARGER | |
| 8. | 353-3478 | [1] | GASKET-TURBOCHARGER | |
| 9. | 482-0233 | [1] | TURBOCHARGER | |
| M | METRIC PART | |||
