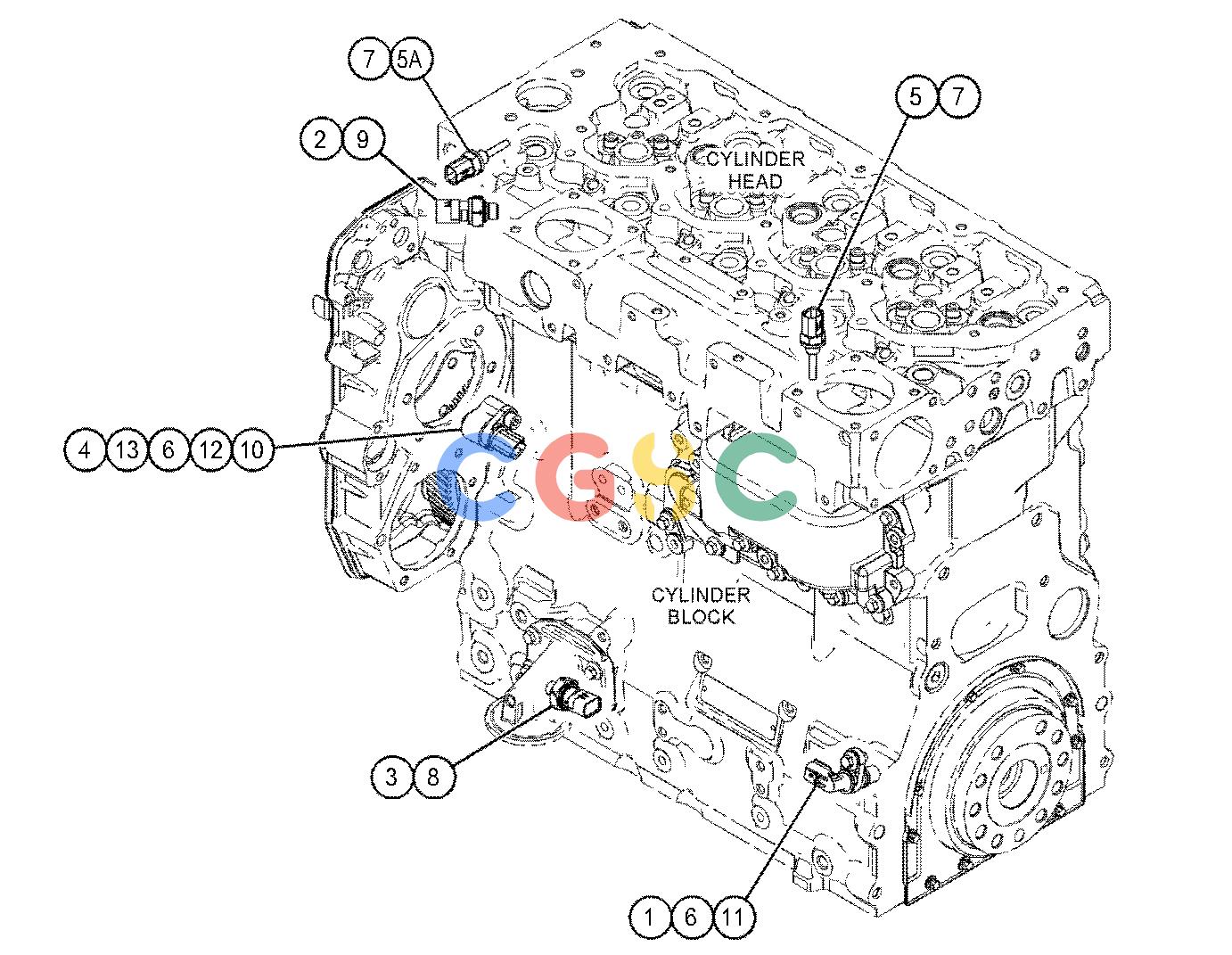

卡特零件查询（AP555F） 425-9760: SENSOR GP-ENGINE
广数供应链运营团队, 17 02月, 2025，浏览：
482 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 124-3815M | [1] | BOLT(M8X1.25X16-MM) | |
| 2. | 199-9252 | [1] | SEAL-O-RING | |
| 3. | 199-9267 | [1] | SEAL-O-RING | |
| 4. | 206-1826 | [1] | BOLT | |
| 5. | 238-0112 | [1] | SENSOR GP-TEMPERATURE(ENGINE COOLANT) | |
| 5A. | 238-0112 | [1] | SENSOR GP-TEMPERATURE(ENGINE COOLANT) | |
| 6. | 274-1639 | [2] | SEAL | |
| 7. | 278-5226 | [2] | SEAL-O-RING | |
| 8. | 320-3060 | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 9. | 320-3062 | [1] | SENSOR GP-PRESSURE(INLET MANIFOLD AIR) | |
| 10. | 384-3887 | [1] | SENSOR GP-SPEED | |
| 11. | 384-3888 | [1] | SENSOR GP-SPEED | |
| 12. | 425-9111 | [1] | ADAPTER | |
| 13. | 8T-1158M | [1] | BOLT-SOCKET HEAD(M8X1.25X20-MM) | |
| | M | | METRIC PART |
