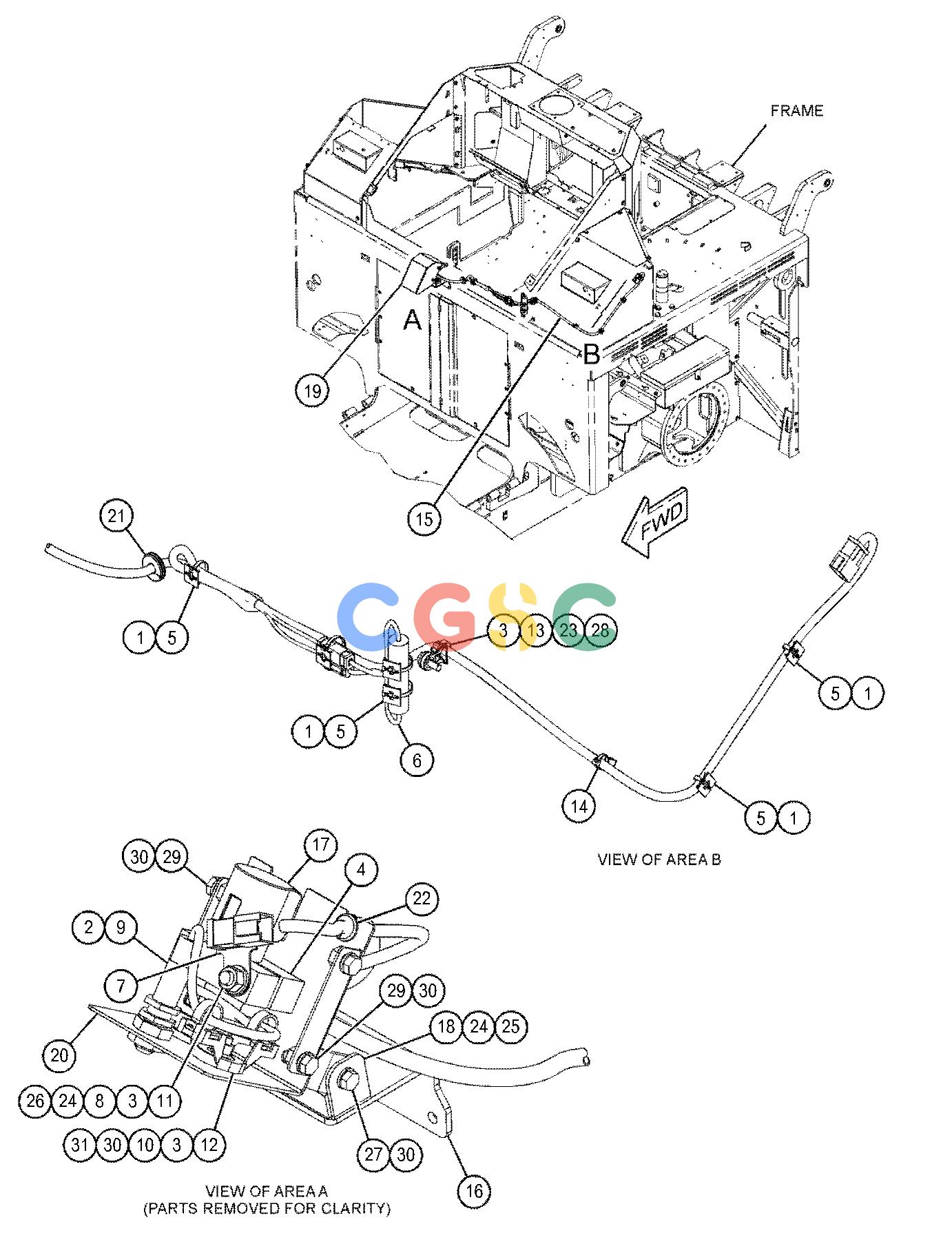

卡特零件查询（AP555F） 574-5683: SENSOR & MOUNTING GP
广数供应链运营团队, 17 02月, 2025，浏览：
806 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [6] | STRAP-CABLE | |
| 2. | 7F-2050 | [2] | LOCKNUT(3/4-16-THD) | |
| 3. | 7K-1181 | [4] | STRAP-CABLE | |
| 4. | 110-2124 | [1] | CLAMP | |
| 5. | 326-9726 | [6] | BASE-MOUNTING | |
| 6. | 122-9303 | [1] | BUFFER GP-SENSOR(500-HZ PWM) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE(S) & INTERFACE SEAL) |
| | 8T-8730 | [6] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 9X-1813E | | SLEEVE(38-CM) | |
| 7. | 130-5300 | [1] | CLIP | |
| 8. | 132-5789 | [1] | CLIP(LADDER) | |
| 9. | 342-6632 | [1] | SENSOR AS-TEMPERATURE(MAT) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 20-GA) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(3-CM) | |
| 10. | 344-5674M | [1] | NUT(M8X1.25-THD) | |
| 11. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 12. | 345-3753 | [1] | MOUNTING-CABLE TIE | |
| 13. | 381-2621 | [1] | MOUNTING-CABLE TIE | |
| 14. | 443-3962 | [1] | TIE | |
| 15. | 509-6657Y | [1] | HARNESS AS-SENSOR(HOPPER, TEMPERATURE AND LEVEL) | |
| 16. | 510-1592 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 17. | 570-7285 | [1] | SENSOR-TEMPERATURE(SONIC) | |
| 18. | 574-5680 | [1] | BRACKET | |
| 19. | 574-5681 | [1] | COVER | |
| 20. | 574-5682 | [1] | BRACKET AS | |
| | 8T-3612M | [6] | NUT-WELD(M8X1.25-THD) | |
| 21. | 5P-6264 | [1] | GROMMET | |
| 22. | 5P-8524 | [1] | GROMMET | |
| 23. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 24. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 25. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 26. | 8T-4172M | [1] | BOLT(M10X1.5X80-MM) | |
| 27. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 28. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 29. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 30. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 31. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
