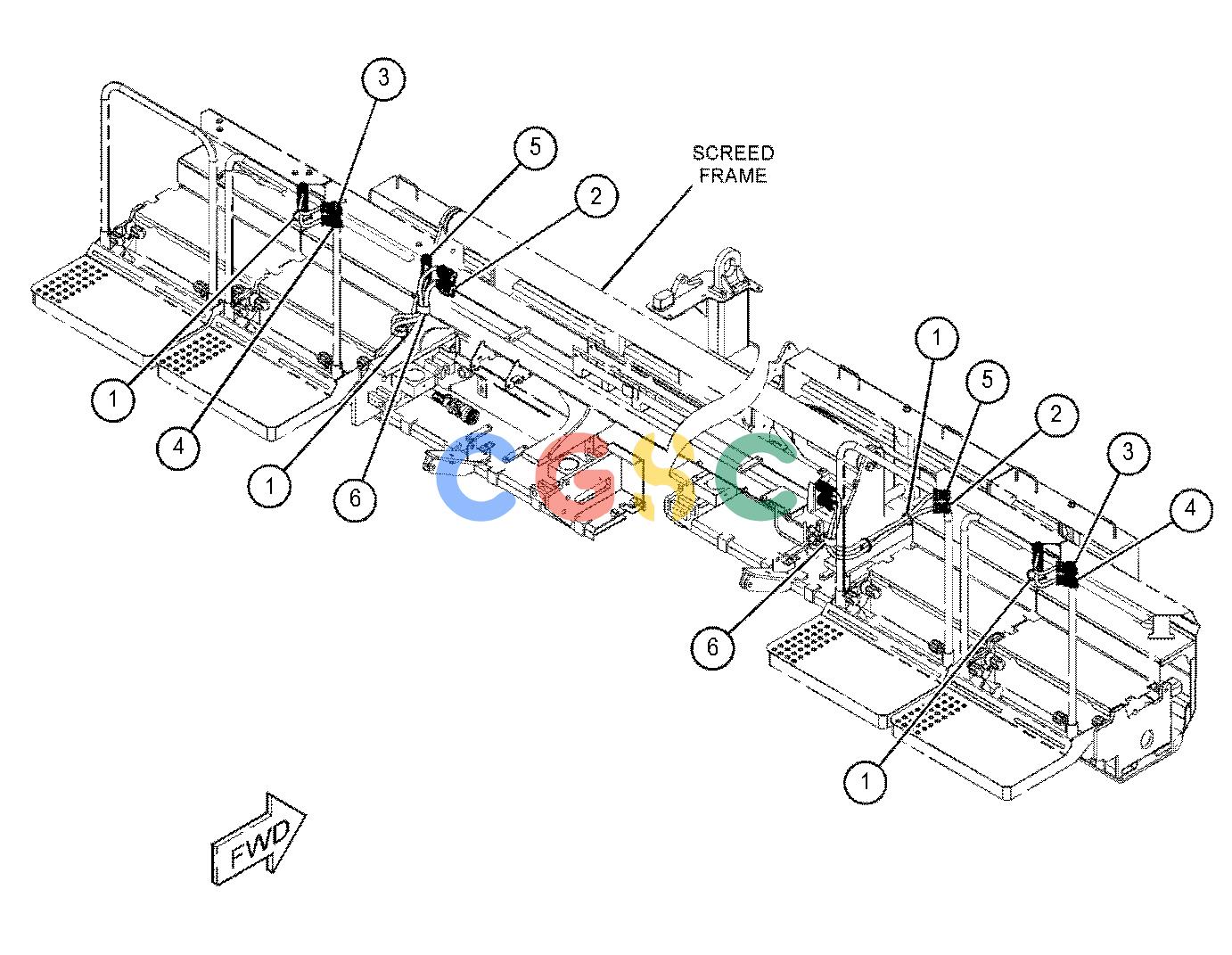

卡特零件查询（AP600F） 475-6351: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
525 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [6] | STRAP-CABLE | |
| 2. | 475-0301 | [2] | HARNESS AS-SCREED(END GATE) | |
| | | | (EACH INCLUDES) |
| | 474-7564 | [2] | RECEPTACLE AS-CONNECTOR(28-PIN) | |
| | 474-7566 | [1] | CAP AS-CONNECTOR | |
| 3. | 475-6346 | [2] | HARNESS AS-SCREED | |
| | | | (EACH INCLUDES) |
| | 329-3734B | | TAPE-ELECTRICAL | |
| | 474-7563 | [2] | PLUG AS-CONNECTOR | |
| | 474-7566 | [1] | CAP AS-CONNECTOR | |
| 4. | 475-6347 | [2] | HARNESS AS-SCREED | |
| | | | (EACH INCLUDES) |
| | 329-3734B | | TAPE-ELECTRICAL | |
| | 474-7564 | [2] | RECEPTACLE AS-CONNECTOR(28-PIN) | |
| | 474-7566 | [1] | CAP AS-CONNECTOR | |
| 5. | 475-6348 | [2] | HARNESS AS-SCREED(CONTROL PANEL) | |
| | | | (EACH INCLUDES) |
| | 474-7563 | [2] | PLUG AS-CONNECTOR | |
| | 474-7566 | [1] | CAP AS-CONNECTOR | |
| 6. | 364-4568 | [2] | STRAP | |
| | B | | USE AS REQUIRED |
