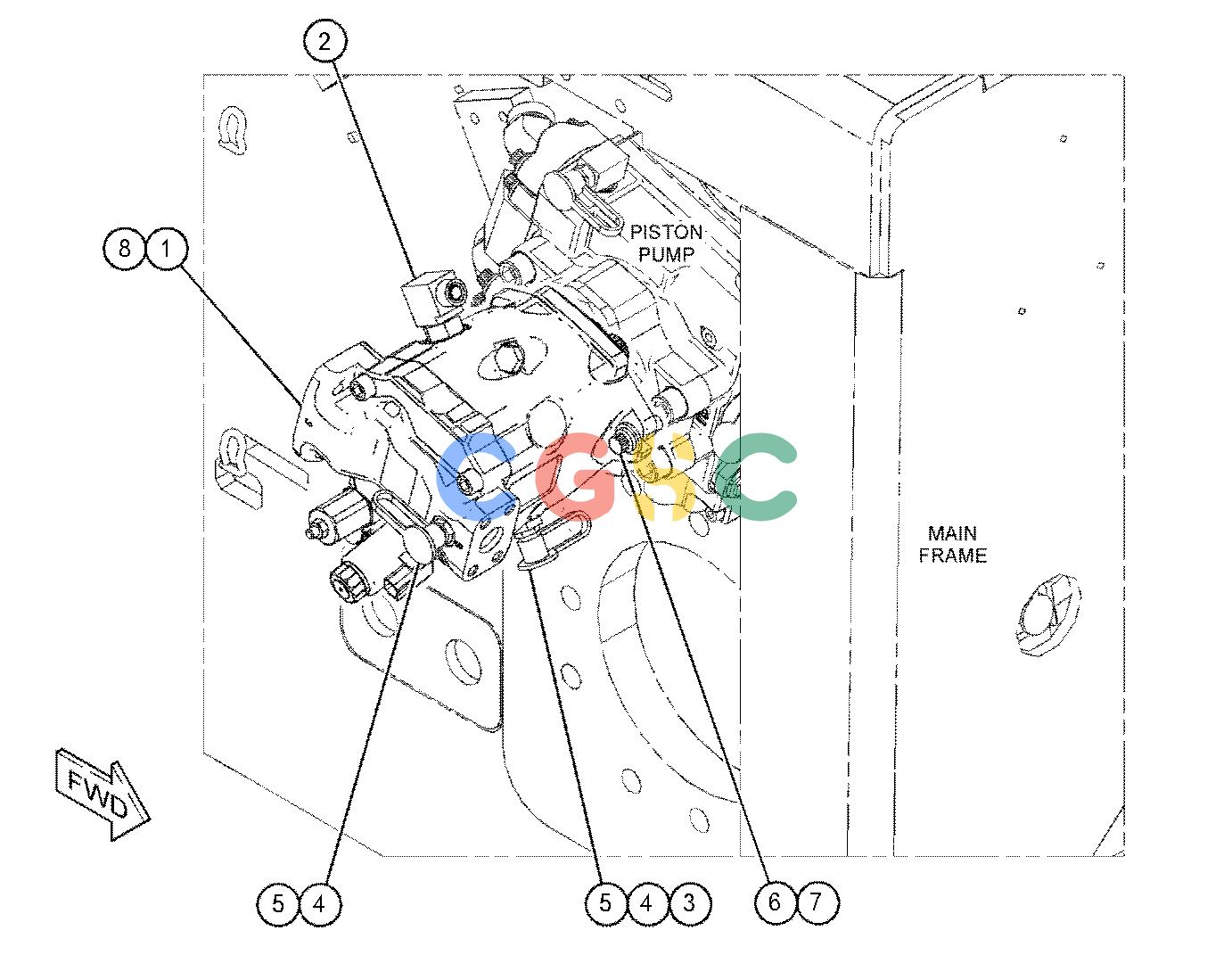

卡特零件查询（AP600F） 433-6616: PUMP & MTG GP-TAMPER
广数供应链运营团队, 17 02月, 2025，浏览：
568 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 433-7588Y | [1] | PUMP GP-PISTON(TAMPER) | |
| 2. | 148-8372 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8721 | [1] | ELBOW | |
| 3. | 150-4046 | [1] | ADAPTER AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 5P-1404 | [1] | ADAPTER | |
| 4. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 5. | 6V-0852 | [2] | CAP-DUST | |
| 6. | 9X-2508 | [2] | BOLT-12 POINT HEAD(1/2-13X1.25-IN) | |
| 7. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 8. | 8T-5049 | [1] | SEAL-O-RING | |
| | Y | | SEPARATE ILLUSTRATION |
