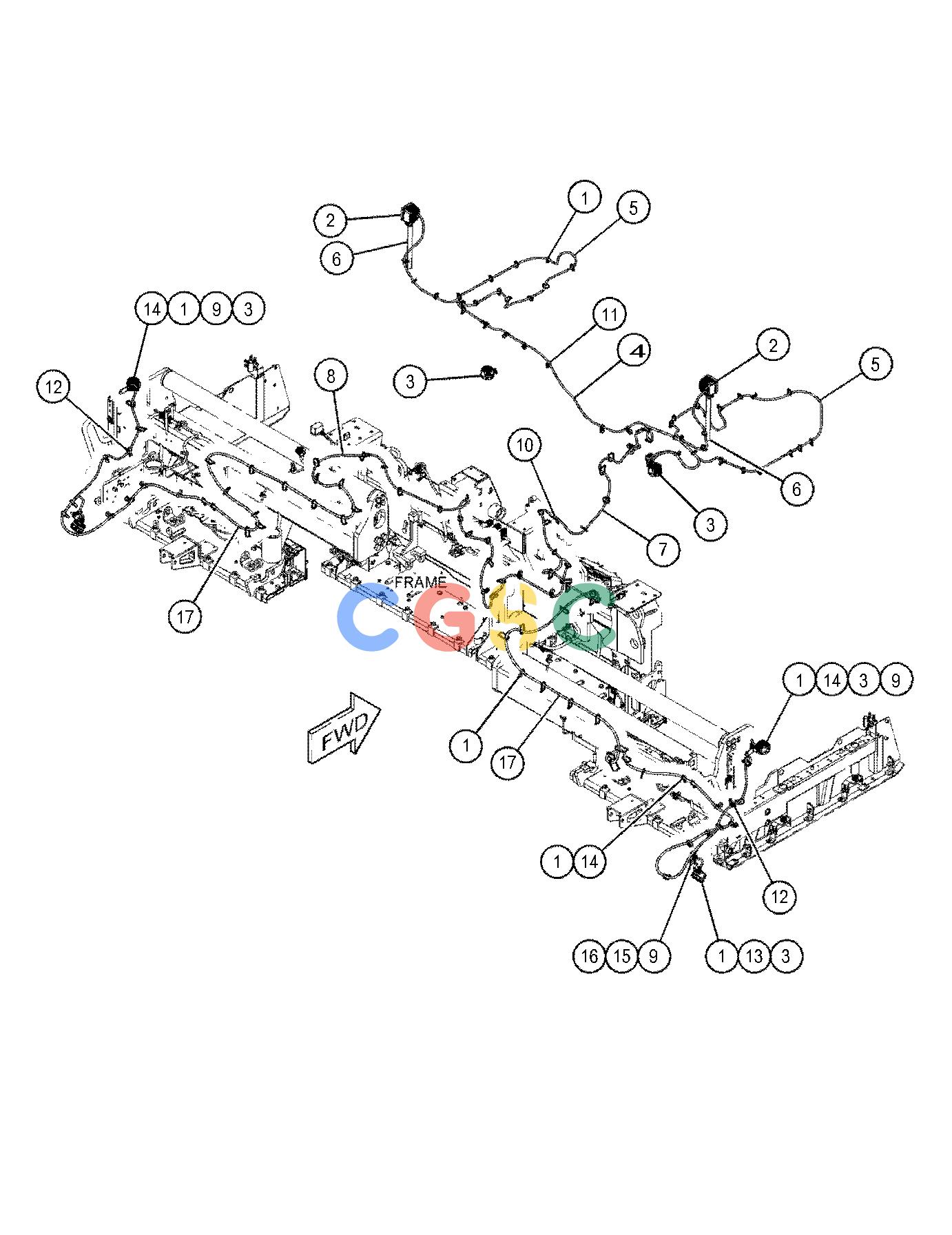

卡特零件查询（AP600F） 496-9649: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
562 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [98] | STRAP-CABLE | |
| 2. | 441-0314Y | [2] | LAMP GP-FLOOD(24-VOLT, 50-WATT, LED) | |
| 3. | 479-8444 | [6] | LAMP GP-FLOOD(FLOOD, 850 LUMENS) | |
| | | | (EACH INCLUDES) |
| | 3T-0852M | [2] | LOCKNUT(M8X1.25-THD) | |
| | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| | 8T-6912M | [1] | BOLT(M8X1.25X50-MM) | |
| 4. | 496-9643Y | [1] | HARNESS AS-SCREED | |
| 5. | 496-9644Y | [2] | HARNESS AS-SCREED | |
| 6. | 496-9645 | [2] | BAR AS | |
| 7. | 496-9650Y | [1] | HARNESS AS-SCREED | |
| 8. | 496-9651Y | [1] | HARNESS AS-SCREED | |
| 9. | 496-9673 | [4] | BRACKET | |
| 10. | 130-5300 | [1] | CLIP | |
| 11. | 177-2215 | [26] | STRAP-DUAL CLAMP | |
| 12. | 327-0325 | [2] | STRAP-CABLE | |
| 13. | 4P-7428 | [2] | CLIP(LADDER) | |
| 14. | 4P-7581 | [6] | CLIP(LADDER) | |
| 15. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 16. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 17. | 496-9662Y | [2] | HARNESS AS-SCREED | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
