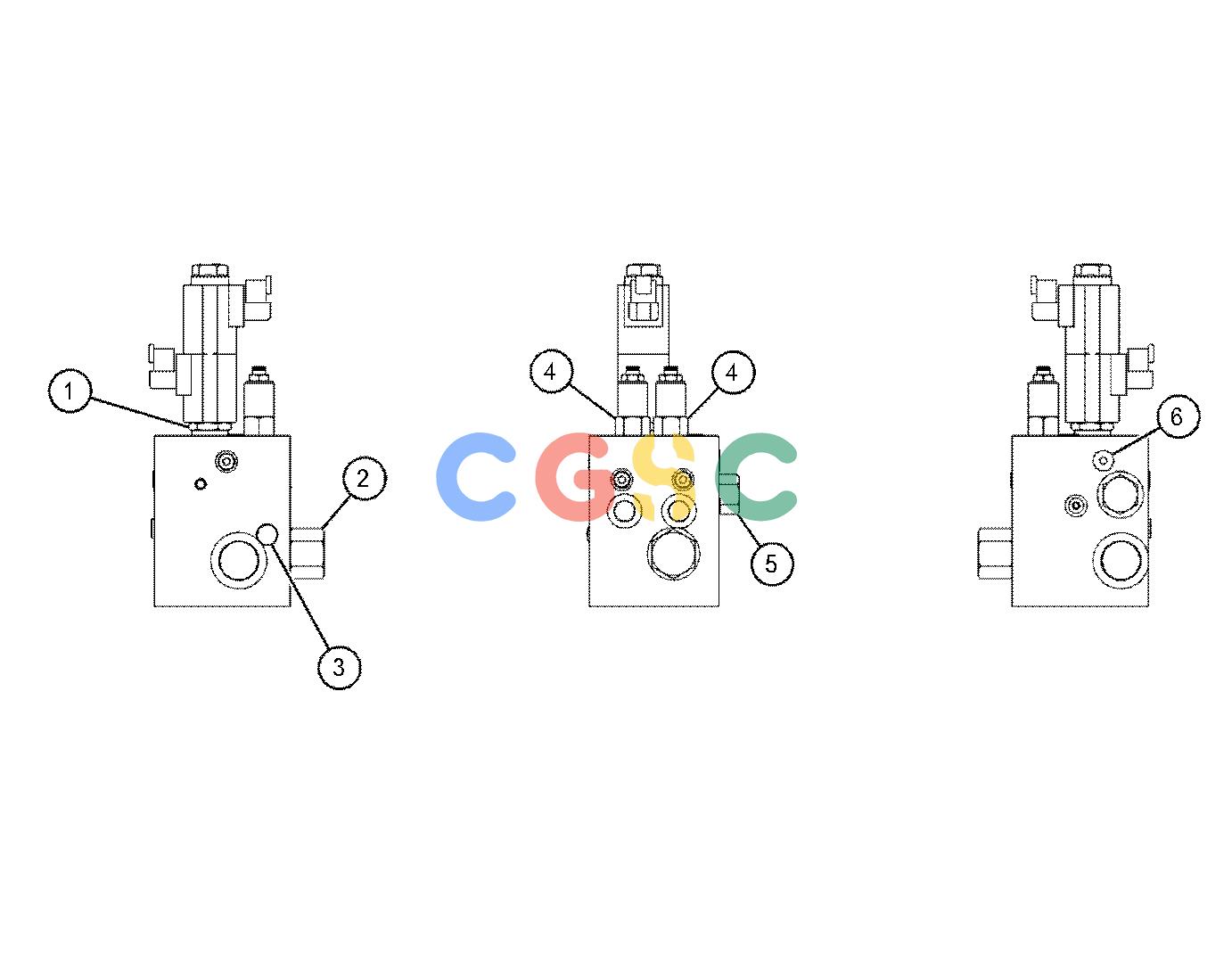

卡特零件查询（AP600F） 396-6641: MANIFOLD GP-CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
312 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 436-7317J | [1] | VALVE GP-SOLENOID(FLOW CONTROL) | |
| | 344-1386 | [1] | KIT-SEAL(SOLENOID VALVE) | |
| | | | (INCLUDES O-RING SEALS & BACK UP RINGS) |
| | 436-7318 | [2] | COIL-SOLENOID | |
| 2. | 436-7277 | [1] | VALVE GP-CONTROL(SEQUENCE) | |
| | 357-9616 | [1] | KIT-SEAL(SEQUENCE VALVE) | |
| | | | (INCLUDES O-RING SEALS & BACK UP RINGS) |
| 3. | 373-6989 | [1] | VALVE GP-RELIEF(DIRECT OPERATED) | |
| 4. | 436-7450 | [2] | VALVE GP-COUNTERBALANCE | |
| | 384-7635 | [1] | KIT-SEAL(COUNTERBALANCE) | |
| | | | (INCLUDES O-RING SEALS & BACK UP RINGS) |
| 5. | 436-7458 | [1] | VALVE GP-SEQUENCE | |
| | 255-6259 | [1] | KIT-SEAL(SEQUENCE VALVE) | |
| | | | (INCLUDES O-RING & BACK UP RINGS) |
| 6. | 226-5684 | [1] | VALVE GP-SHUTTLE(DIFFERENTIAL LOCK) | |
| | 248-2980 | [1] | KIT-SEAL(DIFFERENTIAL LOCK CHECK VALVE) | |
| | | | (INCLUDES O-RING SEALS & BACK UP RINGS) |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 272-3525J | [1] | KIT-COIL NUT | |
| | | | (INCLUDE O-RING SEAL & NUT) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
