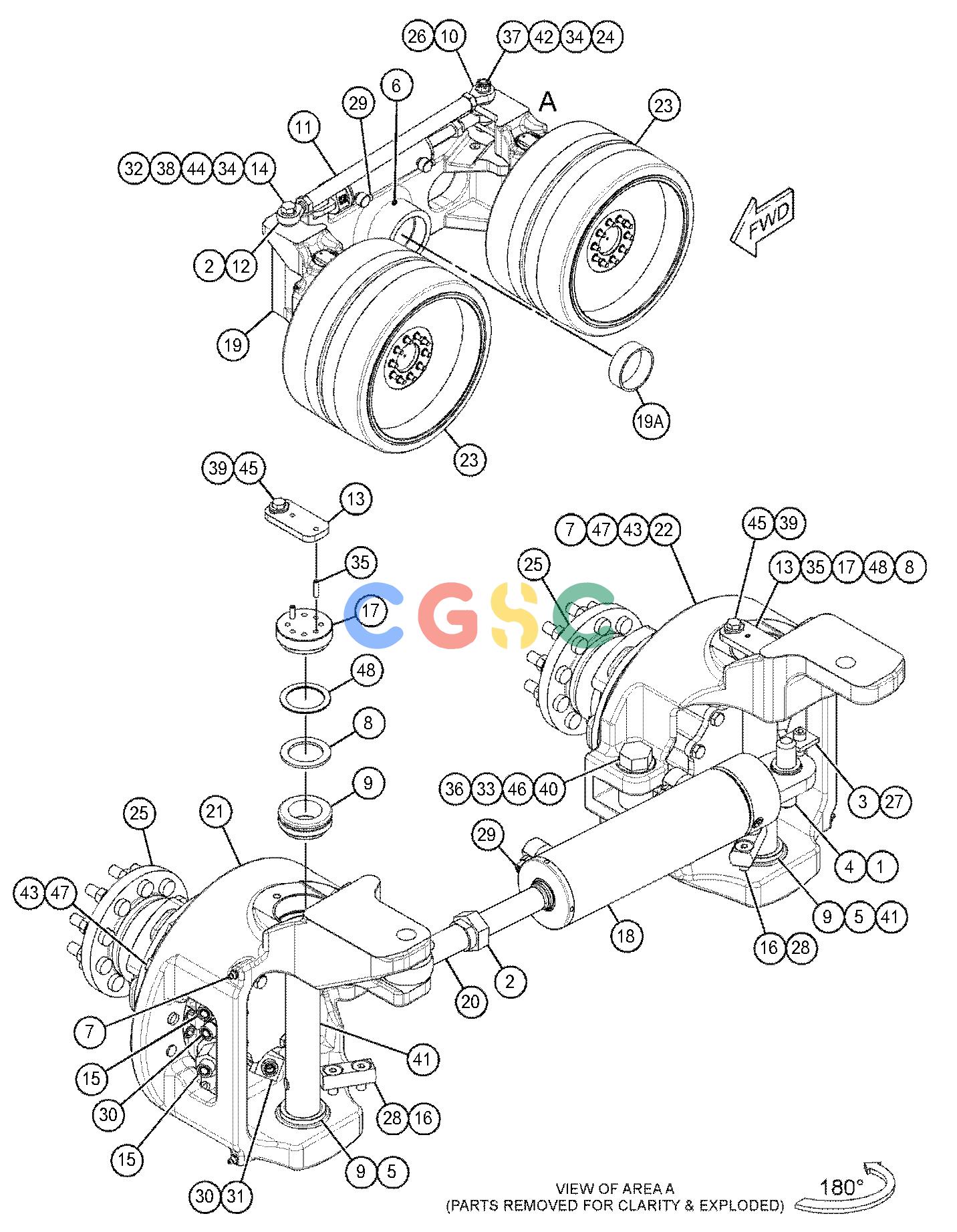

卡特零件查询（AP600F） 435-3800: BOGIE GP
广数供应链运营团队, 17 02月, 2025，浏览：
1003 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 0S-0107 | [2] | WASHER(26X38X3-MM THK) | |
| 2. | 1A-4168 | [2] | NUT(1-1/4-12-THD) | |
| 3. | 1G-8306 | [1] | BAR | |
| 4. | 1G-8307 | [1] | PIN | |
| 5. | 1K-7019 | [4] | SHIM(0.02-IN THK) | |
| 6. | 3B-8485 | [1] | ELBOW | |
| 7. | 3B-8489 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| 8. | 6H-0463 | [2] | WASHER(1.813X2.625X0.135-IN) | |
| 9. | 6R-1554 | [4] | BEARING AS | |
| 10. | 8I-0795 | [1] | BEARING | |
| 11. | 8I-0873 | [1] | ROD | |
| 12. | 8T-4401 | [1] | BEARING | |
| 13. | 087-0077 | [2] | PLATE-LOCK | |
| 14. | 104-7685 | [1] | BOLT AS-SPECIAL(1-14X5-IN) | |
| 15. | 205-2357 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-7968 | [1] | CONNECTOR | |
| 16. | 261-0551 | [2] | PIN-RETAINING | |
| 17. | 312-7705 | [2] | ADJUSTER-BEARING | |
| 18. | 396-3922Y | [1] | CYLINDER GP-HYDRAULIC | |
| 19. | 415-1786 | [1] | FRAME AS-BOGIE | |
| 19A. | 8C-3920 | [2] | BEARING | |
| 20. | 417-8955 | [1] | BEARING-ROD END | |
| 21. | 417-8966 | [1] | MOUNT-MOTOR | |
| 22. | 417-8968 | [1] | MOUNT-MOTOR | |
| 23. | 436-1409 | [2] | WHEEL AS | |
| 24. | 447-7302 | [1] | BOLT AS-SPECIAL | |
| 25. | 455-7811Y | [2] | MOTOR GP-PISTON(PROPEL) | |
| 26. | 061-6915 | [1] | NUT(1-1/4-12-THD) | |
| 27. | 105-3484M | [1] | BOLT-SOCKET HEAD(M10X1.5X25-MM) | |
| 28. | 123-0354M | [4] | SCREW-FLAT HEAD(M12X1.75X35-MM) | |
| 29. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 30. | 148-8340 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 31. | 153-6241 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8C-8989 | [1] | ELBOW | |
| 32. | 1B-4443 | [1] | NUT-SLOTTED(1-14-THD) | |
| 33. | 311-2557 | [1] | SPACER(26X44X35-MM THK) | |
| 34. | 3B-4619 | [2] | PIN-COTTER | |
| 35. | 5H-3182 | [4] | PIN-SPRING | |
| 36. | 299-3423 | [1] | NUT(1-8-THD) | |
| 37. | 7M-9651 | [1] | NUT-SLOTTED(1-14-THD) | |
| 38. | 7X-0529 | [2] | WASHER-HARD(28X49X6-MM THK) | |
| 39. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 40. | 8C-8843 | [1] | BOLT(1-8X4.5-IN) | |
| 41. | 8I-0913 | [2] | PIN | |
| 42. | 8T-1482 | [1] | WASHER-HARD(26X50X8-MM THK) | |
| 43. | 8T-4122 | [20] | WASHER-HARD(17X32X3.5-MM THK) | |
| 44. | 8T-4167 | [1] | WASHER-HARD(26X44X4-MM THK) | |
| 45. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 46. | 8T-5361 | [2] | WASHER-HARD(28X49X5-MM THK) | |
| 47. | 8T-7338M | [20] | BOLT(M16X2X45-MM) | |
| 48. | 1K-7019B | [10] | SHIM(0.02-IN THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
