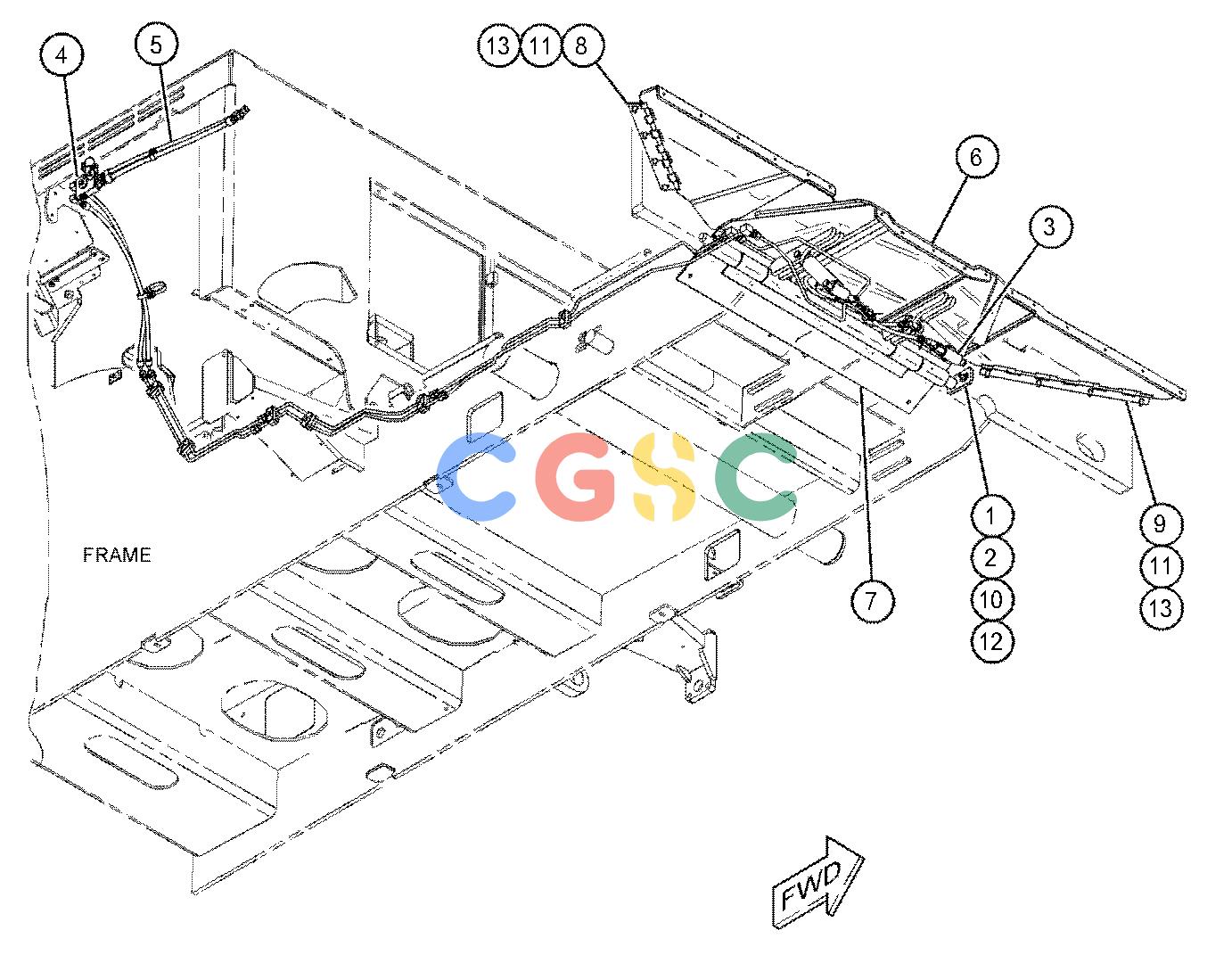

卡特零件查询（AP600F） 424-9174: APRON GP
广数供应链运营团队, 17 02月, 2025，浏览：
312 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7W-9738 | [1] | WASHER(10.5X38X1.6-MM THK) | |
| 2. | 268-7933 | [1] | PIN AS | |
| 3. | 399-8594Y | [1] | CYLINDER & MTG GP-APRON(APRON FOLD) | |
| 4. | 433-6610Y | [1] | VALVE & MOUNTING GP | |
| 5. | 433-6611Y | [1] | LINES GP-APRON | |
| 6. | 434-0026 | [1] | PLATE AS | |
| 7. | 434-0029 | [1] | PLATE AS | |
| 8. | 446-6603 | [1] | PLATE AS | |
| | 399-8534 | [1] | HINGE AS | |
| 9. | 446-6604 | [1] | PLATE AS | |
| | 399-8534 | [1] | HINGE AS | |
| 10. | 106-1242 | [1] | SPACER(13.8X23.75X12.7-MM THK) | |
| 11. | 145-1893M | [8] | SCREW(M12X1.75X40-MM) | |
| 12. | 8T-4196M | [1] | BOLT(M10X1.5X35-MM) | |
| 13. | 478-8418 | [2] | BAR | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
