卡特零件查询（AP600F） 390-4951: FILM GP-INTERNATIONAL
广数供应链运营团队, 17 02月, 2025，浏览：
218 次

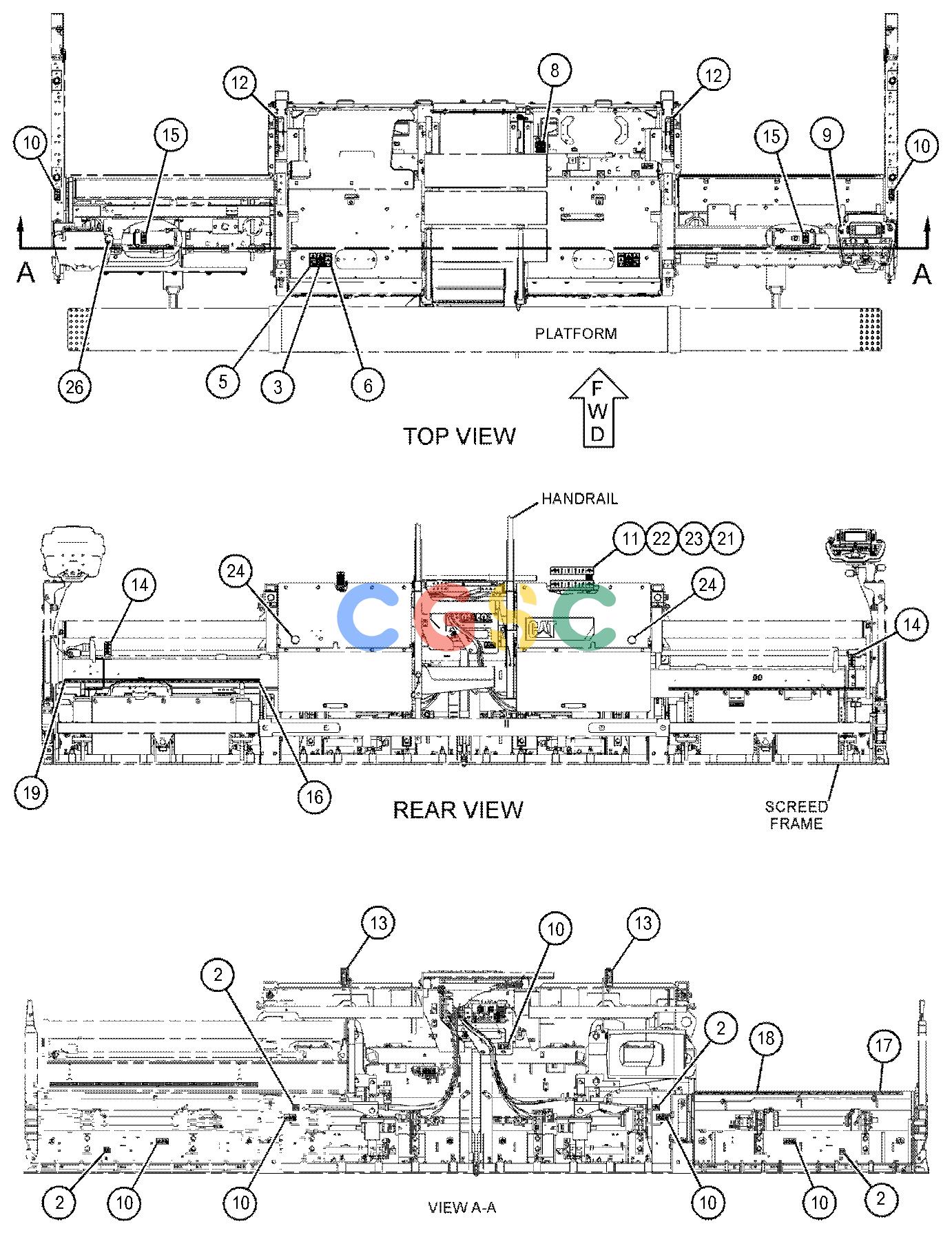

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 228-2616 | [2] | FILM-WARNING(UNIVERSAL, READ OMM) | |
| 2. | 228-4798 | [11] | FILM-IDENTIFICATION(GROUND) | |
| 3. | 242-5054 | [2] | FILM-WARNING(NO STEP) | |
| 4. | 271-6371 | [4] | FILM-WARNING(CRUSH HAZARD, STAY BACK, U.S.) | |
| 5. | 286-7221 | [2] | FILM-WARNING(FALLING HAZARD, READ OMM) | |
| 6. | 292-0471 | [2] | FILM-INSTRUCTION(SCREED, READ OMM) | |
| 7. | 361-4411 | [1] | PLATE-SERIAL NUMBER(MACHINE) | |
| 8. | 399-9028 | [1] | FILM-IDENTIFICATION(FUSE, RELAY PANEL) | |
| 9. | 417-2498 | [1] | FILM-WARNING(EMERGENCY STOP) | |
| 10. | 424-6098 | [8] | FILM-WARNING(ELECTROCUTION HAZARD, READ OMM) | |
| 11. | 424-7256 | [1] | PLATE-SCALE | |
| 12. | 486-7585 | [2] | FILM-IDENTIFICATION(HEIGHT SCALE) | |
| 13. | 432-6824 | [2] | FILM-IDENTIFICATION(SLOPE SCALE) | |
| 14. | 432-8363 | [2] | FILM-IDENTIFICATION(HEIGHT ADJUST) | |
| 15. | 443-3511 | [2] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 16. | 452-3311 | [1] | FILM-INFORMATION(METRIC SCALE) | |
| 17. | 452-3313 | [1] | FILM-INFORMATION(METRIC SCALE) | |
| 18. | 452-3314 | [1] | FILM-INFORMATION(METRIC SCALE) | |
| 19. | 452-3317 | [1] | FILM-INFORMATION(METRIC SCALE) | |
| 20. | 460-5360 | [2] | FILM-WARNING(CRUSH HAZARD, STAY BACK, U.S.) | |
| 21. | 5C-2874M | [2] | NUT(M5X0.8-THD) | |
| 22. | 7Y-7388M | [2] | SCREW-BUTTON HEAD(M5X0.8X12-MM) | |
| 23. | 8T-0328 | [2] | WASHER-HARD(5.5X10X1-MM THK) | |
| 24. | 200-1613 | [2] | REFLECTOR(RED) | |
| 25. | 7X-7644 | [2] | FILM-IDENTIFICATION(TIE-DOWN) | |
| 26. | 466-5085 | [1] | FILM-WARNING(EMERGENCY STOP) | |
| | M | | METRIC PART |
