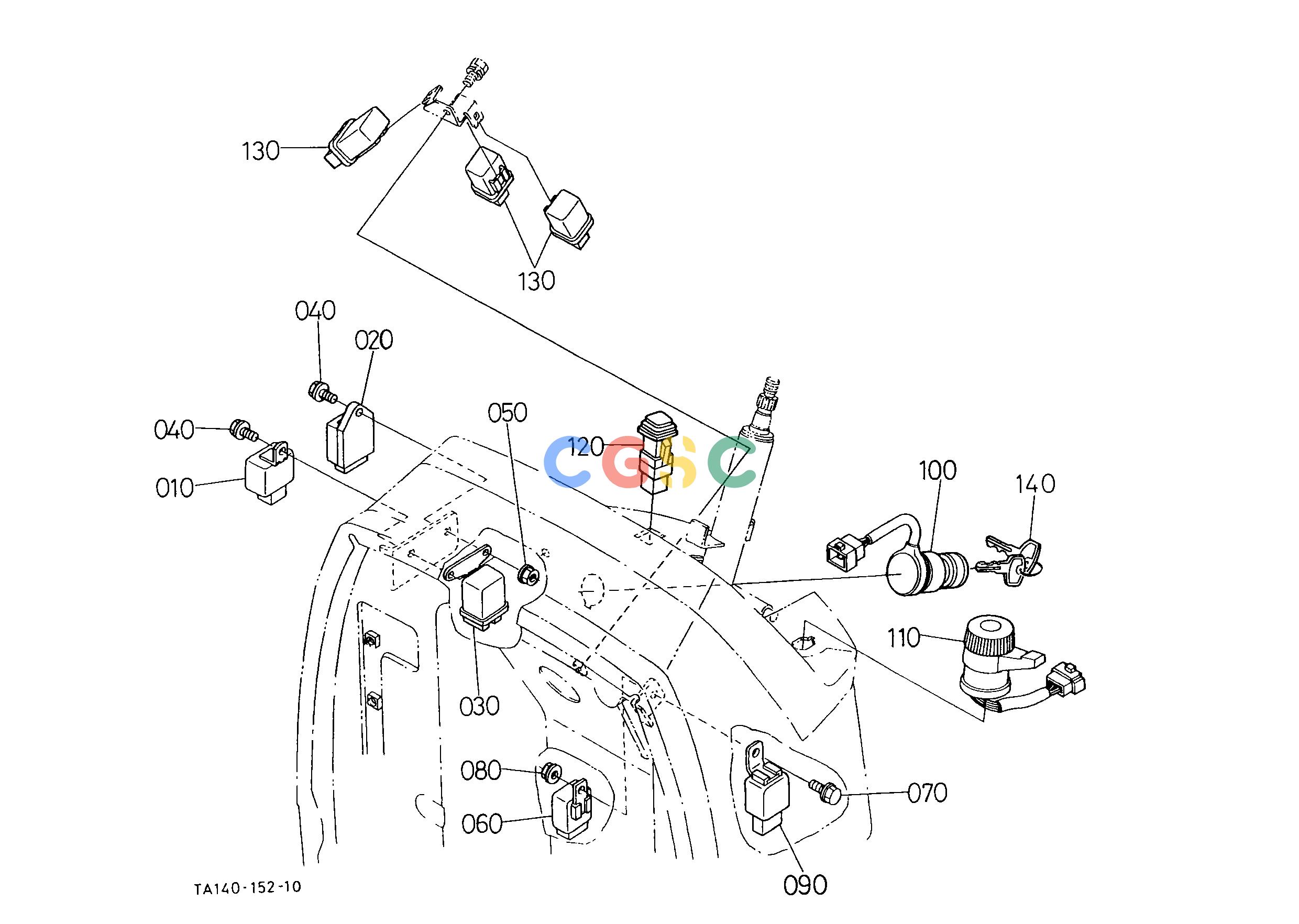

久保田零件查询B10203 SWITCH 1 [HST TYPE] [ROPS TYPE] [OLD TYPE] ## S.No.<=51803 [TYPE VIEUX] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
458 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T007031410
|
[1] |
TIMER KEY STOP
|
0.1430(lbs); 0.065
|
| 020. |
1641565660
|
[1] |
CONTROLLER
|
0.1540(lbs); 0.070
|
| 030. |
1641565600
|
[1] |
RELAY GLOW
|
0.2200(lbs); 0.100
|
| 040. |
0175450616
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 050. |
0275150060
|
[2] |
NUT FLANGE
|
0.0110(lbs); 0.005
|
| 060. |
3580075070
|
[1] |
RELAY STARTER
|
0.1760(lbs); 0.080
|
| 070. |
0175450616
|
[1] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 080. |
0275150060
|
[1] |
NUT FLANGE
|
0.0110(lbs); 0.005
|
| 090. |
3240033700
|
[1] |
UNIT HAZARD
|
0.1540(lbs); 0.070
|
| 100. |
3467031820
|
[1] |
SWITCH MAIN
|
0.0572(lbs); 0.026
|
| 110. |
TA04076630
|
[1] |
SWITCH COMBINATION
|
0.1980(lbs); 0.090
|
| 120. |
3750055212
|
[1] |
SWITCH HAZARD
|
0.0440(lbs); 0.020
|
| 130. |
3691975030
|
[3] |
RELAY
|
0.0880(lbs); 0.040
|
| 130. |
H369075000
|
[3] |
RELAY
|
0.0880(lbs); 0.040
|
| 140. |
3526031852
|
[1] |
ASSY KEY MAIN SWITCH
|
0.0440(lbs); 0.020
|
