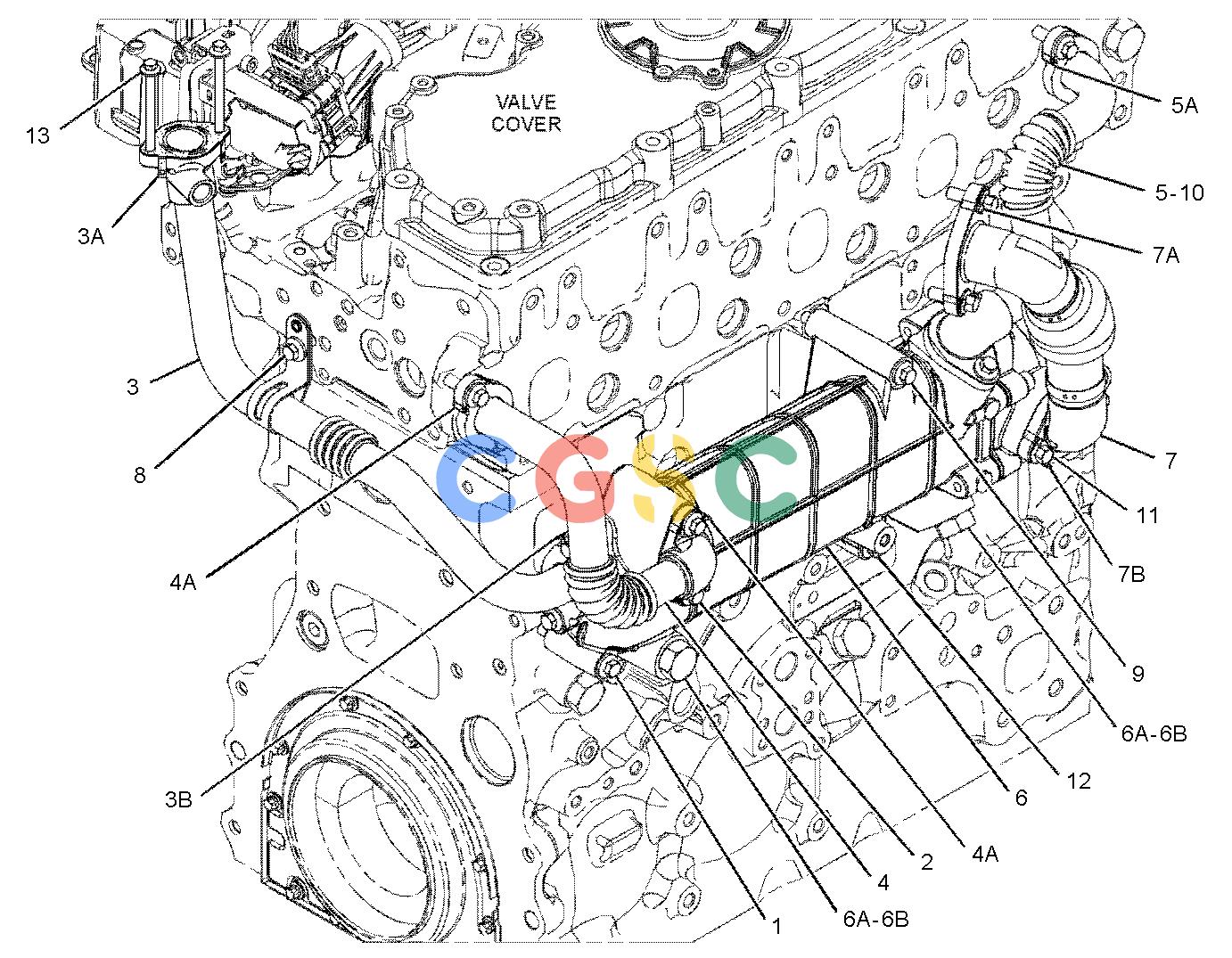

卡特零件查询（AP600F） 356-7413: COOLER & MTG GP-EXHAUST (NRS)
广数供应链运营团队, 17 02月, 2025，浏览：
711 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-4374M | [1] | BOLT(M8X1.25X60-MM) | |
| 2. | 6I-0260M | [9] | BOLT(M8X1.25X25-MM) | |
| 3. | | [1] | PIPE |
| 3A. | 360-4064 | [1] | GASKET | |
| 3B. | 360-4065 | [1] | GASKET | |
| 4. | 362-9125 | [1] | PIPE | |
| 4A. | 360-4066 | [2] | GASKET | |
| 5. | 362-9127 | [1] | PIPE | |
| 5A. | 360-4066 | [1] | GASKET | |
| 6. | | [1] | COOLER |
| 6A. | 199-9751 | [2] | SEAL-O-RING | |
| 6B. | 232-1322 | [2] | PLUG | |
| 7. | 372-2848 | [1] | PIPE AS | |
| 7A. | 374-1253 | [1] | GASKET | |
| 7B. | 374-1254 | [1] | GASKET | |
| 8. | 100-4458M | [1] | BOLT(M8X1.25X14-MM) | |
| 9. | 101-3805M | [1] | BOLT(M8X1.25X90-MM) | |
| 10. | 227-2519 | [1] | SEAL-O-RING | |
| 11. | 375-0351 | [4] | BOLT-SPECIAL | |
| 12. | 6I-0455M | [1] | BOLT(M8X1.25X55-MM) | |
| 13. | 6I-4068 | [2] | BOLT(M6X1X75-MM) | |
| | M | | METRIC PART |
