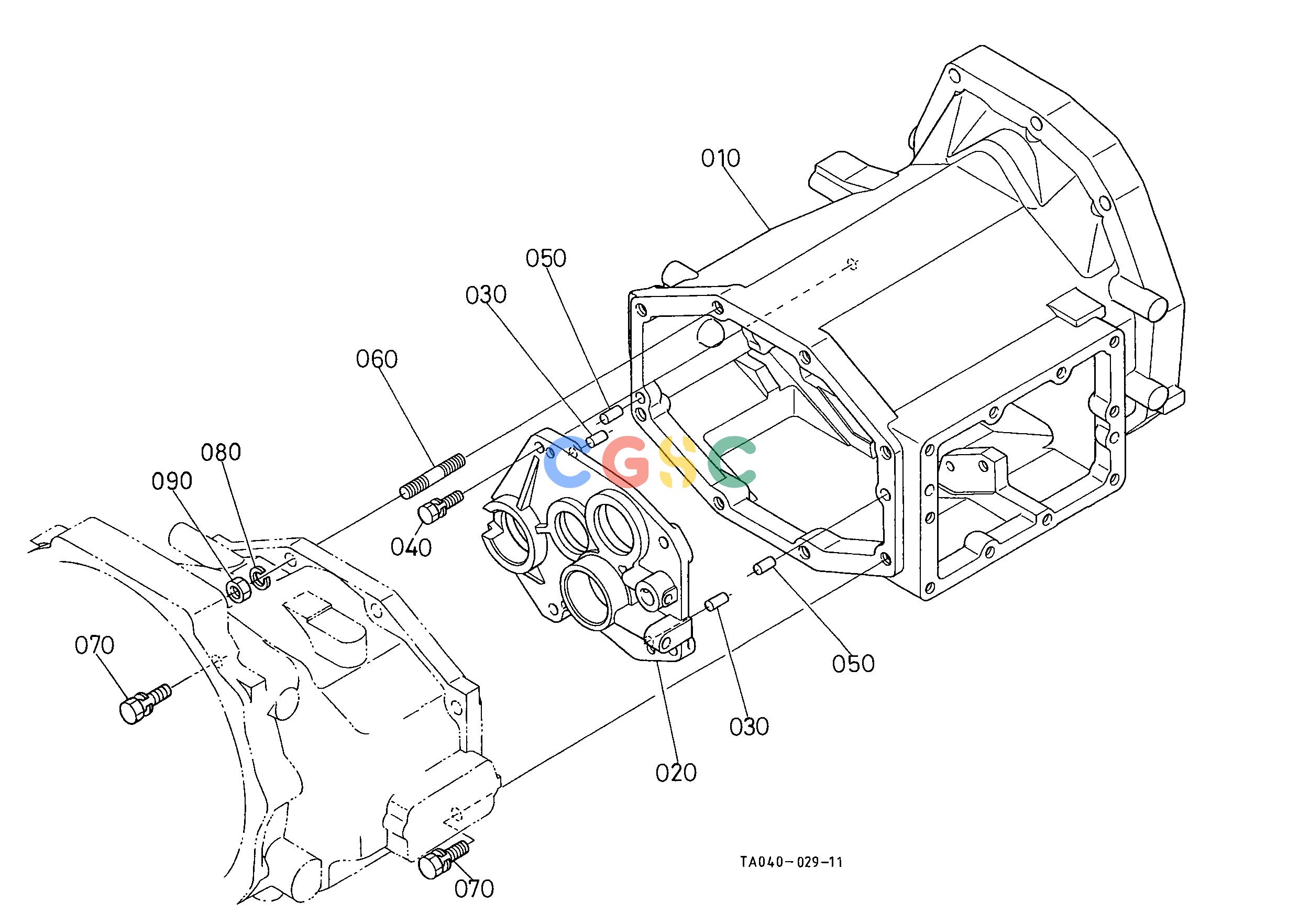

久保田零件查询C41002 MID CASE [GST TYPE] [W/O IND-PTO] ## [SANS TYPE DE PDF IND] CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
401 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04060325
|
[1] |
CASE MID
|
80.3000(lbs); 36.500
|
| 020. |
TA04020350
|
[1] |
HOLDER BEARING
|
6.9300(lbs); 3.150
|
| 030. |
0501200818
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 040. |
0113351035
|
[4] |
BOLT
|
0.0660(lbs); 0.030
|
| 050. |
0501201018
|
[2] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 060. |
3534014182
|
[6] |
STUD
|
0.1100(lbs); 0.050
|
| 070. |
0113351240
|
[2] |
BOLT
|
0.0990(lbs); 0.045
|
| 080. |
0451260120
|
[6] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 090. |
3534027360
|
[6] |
NUT
|
0.0330(lbs); 0.015
|
