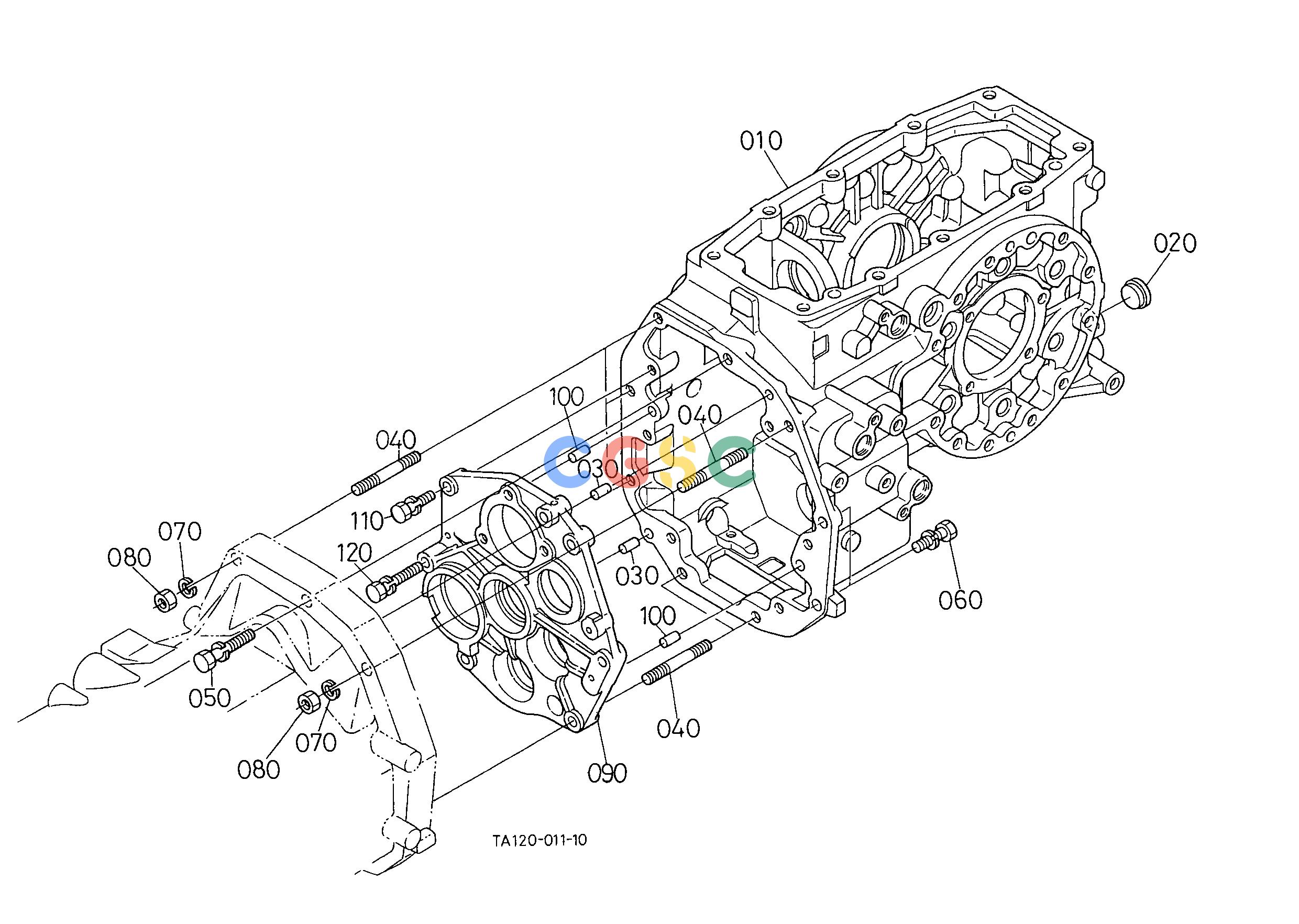

久保田零件查询C42004 TRANSMISSION CASE [HST TYPE] [WITH MID PTO] ## [AVEC TYPE DE PDF VENTRALE] CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
732 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA03020423
|
[1] |
CASE,TRANSMISSION
|
83.6000(lbs); 38.000
|
| 010. |
TA03020425
|
[1] |
CASE,TRANSMISSION
|
83.6000(lbs); 38.000
|
| 020. |
3130114230
|
[1] |
GAUGE,OIL
|
0.0110(lbs); 0.005
|
| 030. |
0501201018
|
[2] |
PIN,STRAIGHT
|
0.0264(lbs); 0.012
|
| 040. |
0157451260
|
[6] |
BOLT,STUD
|
0.1386(lbs); 0.063
|
| 050. |
0113351260
|
[1] |
BOLT,SEMS
|
0.1320(lbs); 0.060
|
| 060. |
0113351235
|
[2] |
BOLT,SEMS
|
0.0946(lbs); 0.043
|
| 070. |
0451250120
|
[6] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 080. |
0217650120
|
[6] |
HEX.NUT
|
0.0220(lbs); 0.010
|
| 090. |
TA24050450
|
[1] |
HOLDER,BEARING
|
10.3400(lbs); 4.700
|
| 100. |
0501201018
|
[2] |
PIN,STRAIGHT
|
0.0264(lbs); 0.012
|
| 110. |
0113351040
|
[5] |
BOLT,SEMS
|
0.0660(lbs); 0.030
|
| 120. |
0113351060
|
[1] |
BOLT,SEMS
|
0.0924(lbs); 0.042
|
