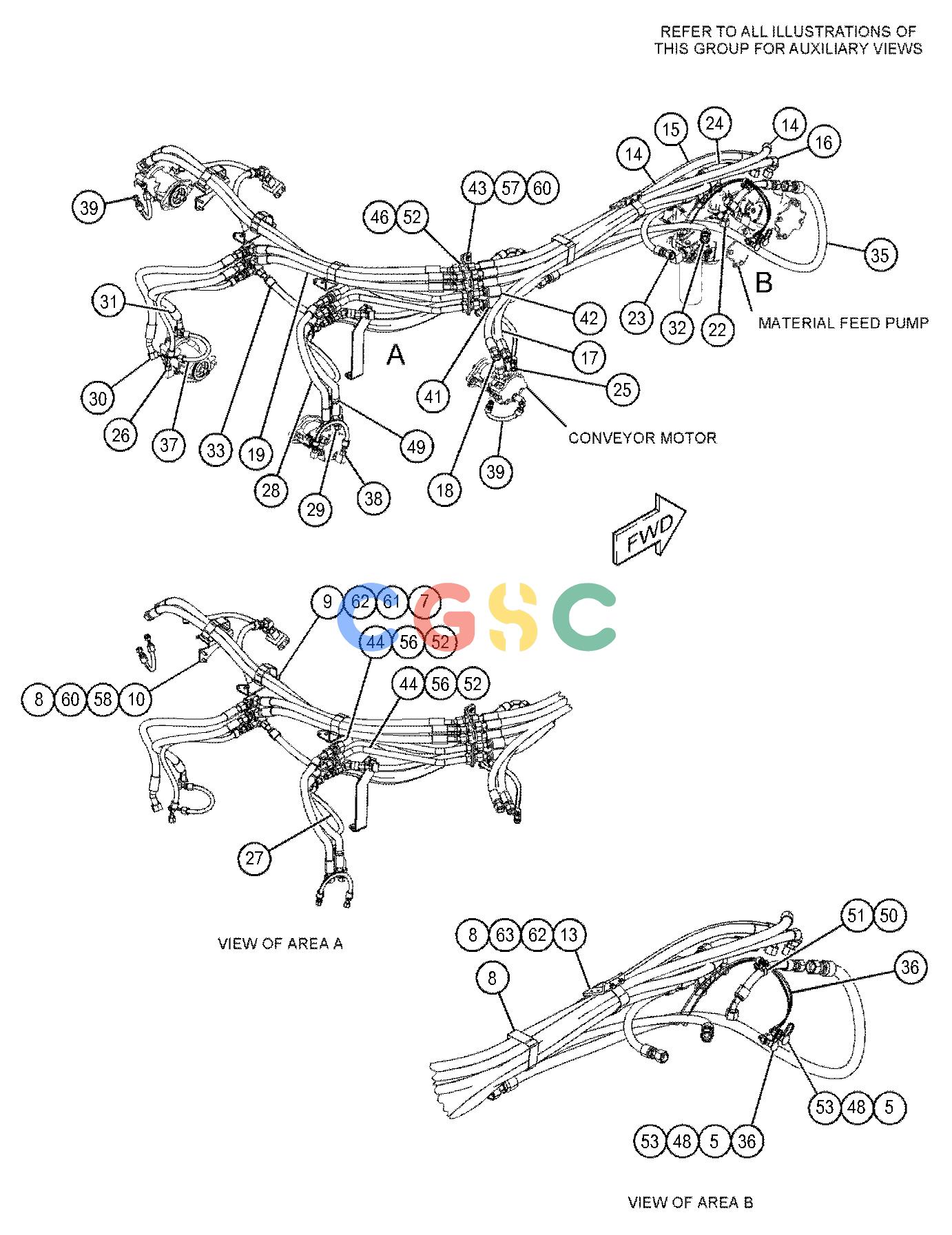

卡特零件查询（AP600F） 433-6611: LINES GP-APRON
广数供应链运营团队, 17 02月, 2025，浏览：
289 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8703 | [6] | PLATE-COVER | |
| 2. | 363-8371I | [1] | HOSE AS | |
| 3. | 363-8372I | [1] | HOSE AS | |
| 4. | 423-4871I | [1] | HOSE AS | |
| 5. | 423-4872I | [1] | HOSE AS | |
| 6. | 423-4873I | [2] | HOSE AS | |
| 7. | 423-4874I | [2] | HOSE AS | |
| 8. | 460-9688 | [1] | TUBE AS | |
| 9. | 460-9690 | [1] | TUBE AS | |
| 10. | 460-9691 | [1] | TUBE AS | |
| 11. | 460-9694 | [1] | TUBE AS | |
| 12. | 460-9695 | [1] | TUBE AS | |
| 13. | 460-9696 | [1] | TUBE AS | |
| 14. | 460-9698 | [1] | TUBE AS | |
| 15. | 460-9697 | [1] | TUBE AS | |
| 16. | 148-8377 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8980 | [1] | ELBOW | |
| 17. | 153-6246 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 7X-0820 | [1] | TEE | |
| 18. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 19. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 20. | 204-2281 | [2] | STRAP-CABLE | |
| 21. | 206-6409 | [12] | CLAMP-HALF | |
| 22. | 6V-8397 | [6] | SEAL-O-RING | |
| 23. | 6V-9168 | [4] | NUT(11/16-16-THD) | |
| 24. | 7X-2537M | [6] | BOLT(M8X1.25X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
