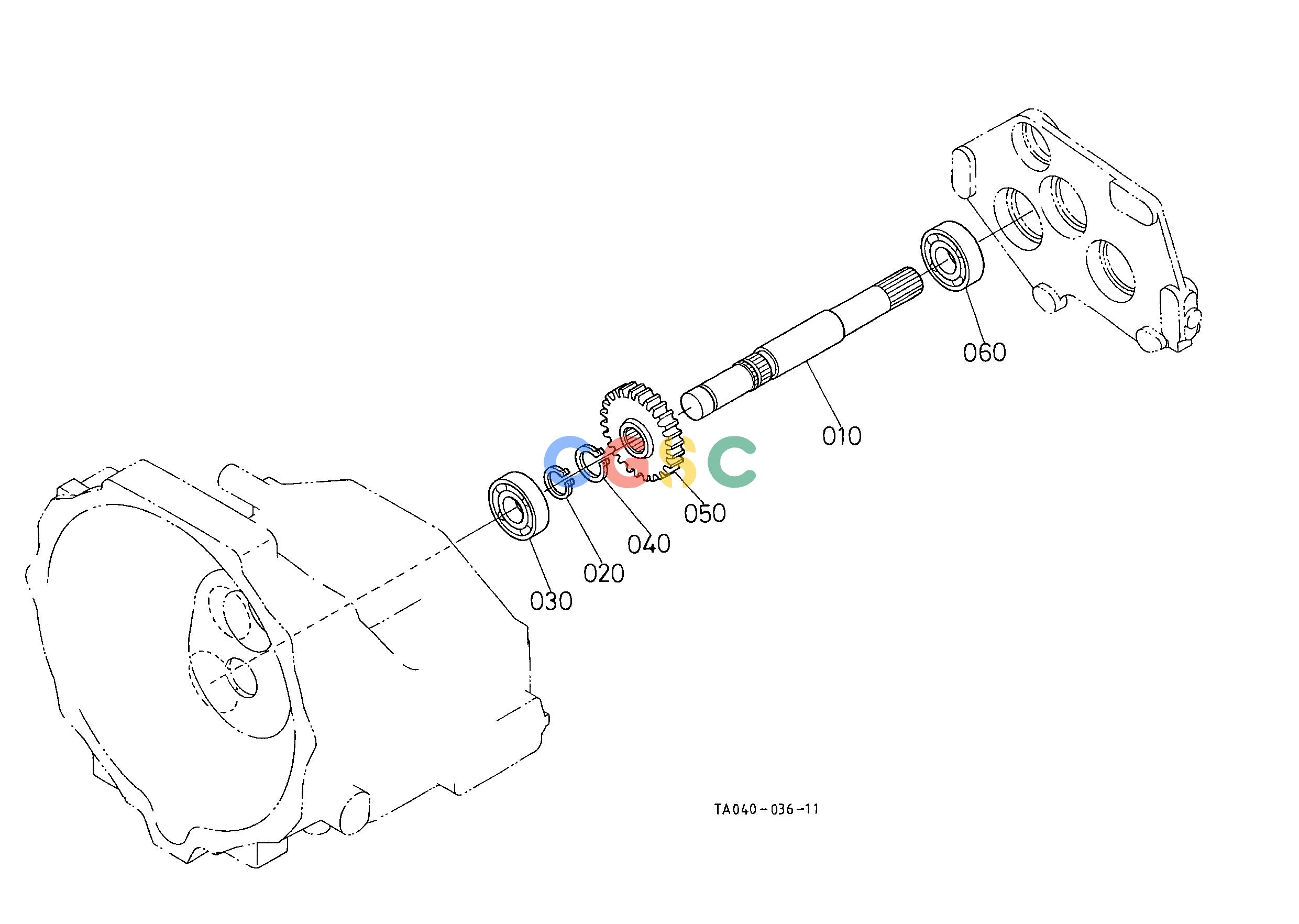

久保田零件查询D13002 PTO COUNTERSHAFT [EXCEPT HST TYPE] [W/O IND-PTO] ## [SANS TYPE DE PDF IND] CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
606 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04023254
|
[1] |
COUNTERSHAFT PTO
|
2.6400(lbs); 1.200
|
| 020. |
3715021551
|
[1] |
CIR CLIP EXTERNAL
|
0.0110(lbs); 0.005
|
| 030. |
0810106305
|
[1] |
BEARING BALL
|
0.5060(lbs); 0.230
|
| 040. |
1522124320
|
[1] |
CIR CLIP IDLE GEAR
|
0.0220(lbs); 0.010
|
| 050. |
TA04023260
|
[1] |
GEAR PTO
|
1.3530(lbs); 0.615
|
| 060. |
0810106305
|
[1] |
BEARING BALL
|
0.5060(lbs); 0.230
|
