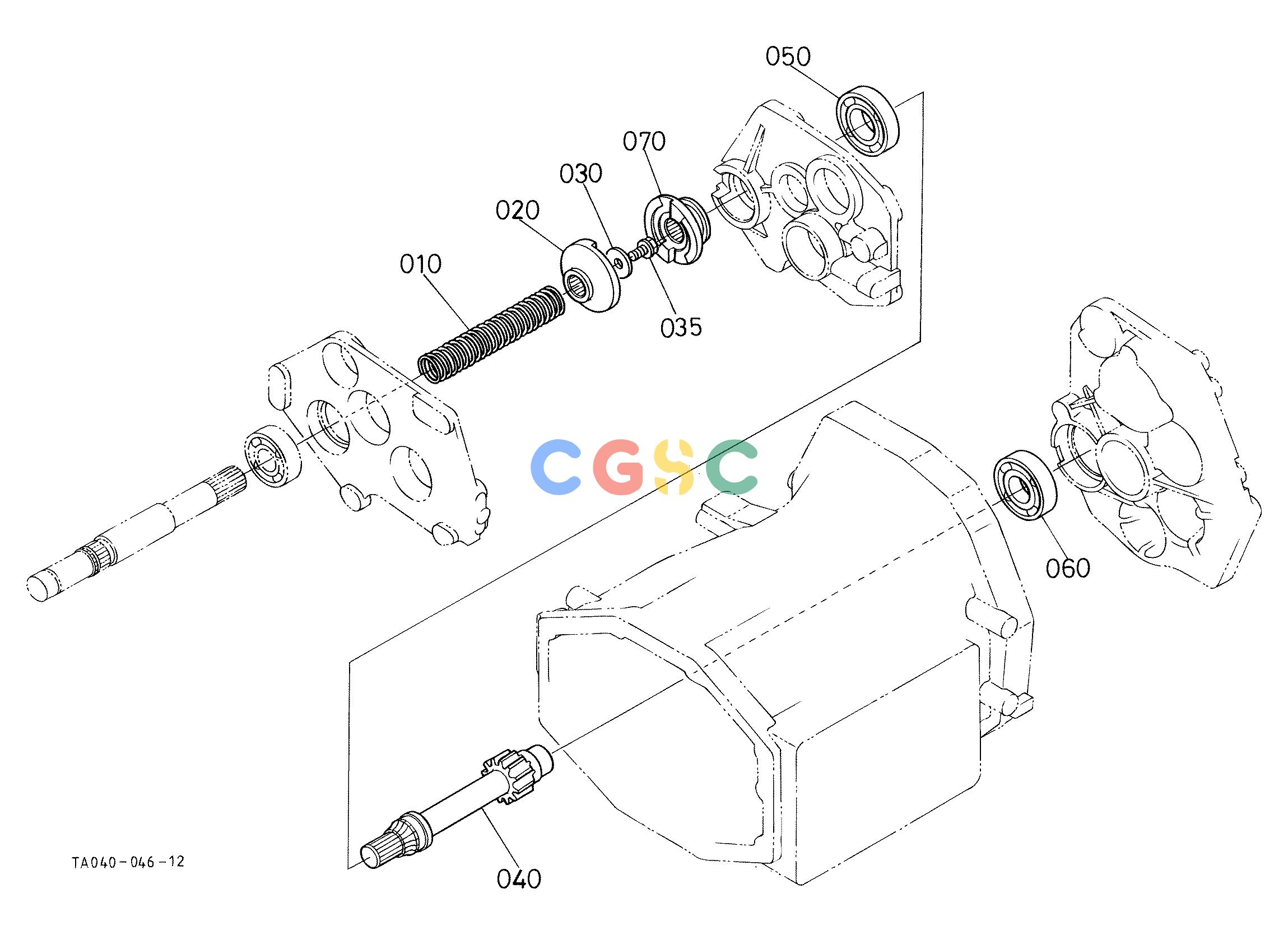

久保田零件查询D13202 PTO CLUTCH [EXCEPT HST TYPE] [W/O IND-PTO] ## [SANS TYPE DE PDF IND] CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
195 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3520025230
|
[1] |
SPRING ONE-WAY
|
0.1650(lbs); 0.075
|
| 020. |
TA04023450
|
[1] |
CAM CLUTCH
|
1.0230(lbs); 0.465
|
| 020. |
HTA0023450
|
[1] |
CAM CLUTCH
|
1.0230(lbs); 0.465
|
| 030. |
4133076120
|
[1] |
WASHER
|
0.0550(lbs); 0.025
|
| 035. |
0177951020
|
[1] |
BOLT UBS
|
0.0550(lbs); 0.025
|
| 035. |
TA14023950
|
[1] |
BOLT
|
0.0528(lbs); 0.024
|
| 040. |
TA04023562
|
[1] |
GEAR-SHAFT PTO
|
2.9920(lbs); 1.360
|
| 050. |
0810106207
|
[1] |
BEARING BALL
|
0.6160(lbs); 0.280
|
| 060. |
3654041130
|
[1] |
BEARING BALL
|
0.7480(lbs); 0.340
|
| 070. |
TA04023410
|
[1] |
CAM CLUTCH
|
1.1440(lbs); 0.520
|
