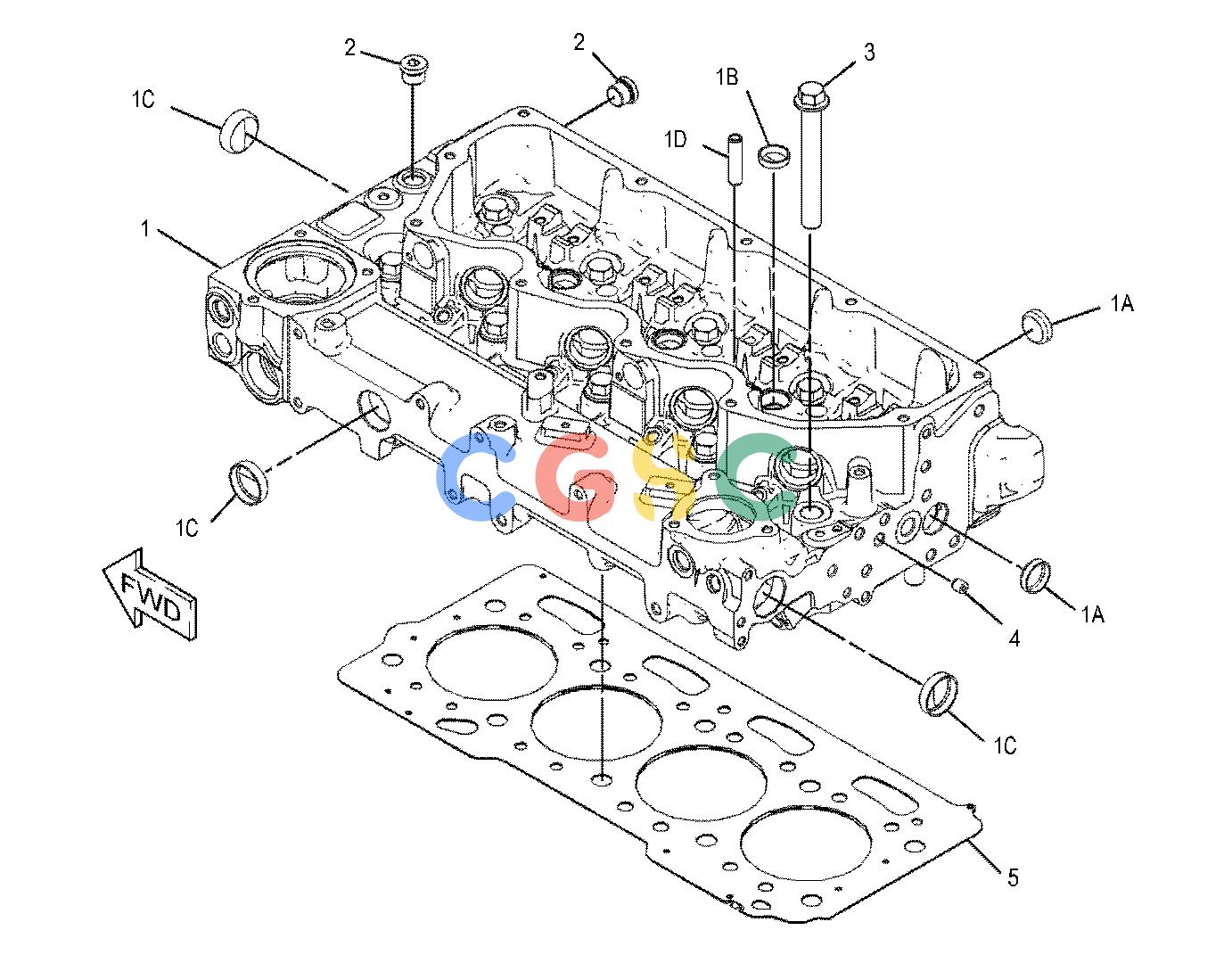

卡特零件查询（AP600F） 355-7043: CYLINDER HEAD GP
广数供应链运营团队, 17 02月, 2025，浏览：
339 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 353-9607 | [1] | CYLINDER HEAD AS | |
| 1A. | 188-5102 | [9] | PLUG | |
| 1B. | 276-8117 | [4] | PLUG-CORE | |
| 1C. | 298-4528 | [3] | PLUG-CORE | |
| 1D. | 356-9640 | [16] | GUIDE-VALVE | |
| | 343-5964 | [8] | INSERT-VALVE SEAT | |
| | 322-4120 | [8] | INSERT-VALVE SEAT | |
| 2. | 470-4925C | [2] | PLUG | |
| 3. | 276-8134 | [10] | BOLT-SPECIAL(CYLINDER HEAD) | |
| 4. | 295-6661 | [1] | PLUG | |
| 5. | 390-0341 | [1] | GASKET-CYLINDER HEAD | |
| | | | |
| | 370-6891BF | [1] | GASKET-CYLINDER HEAD | |
| | 370-6892BF | [1] | GASKET-CYLINDER HEAD | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | F | | NOT SHOWN |
