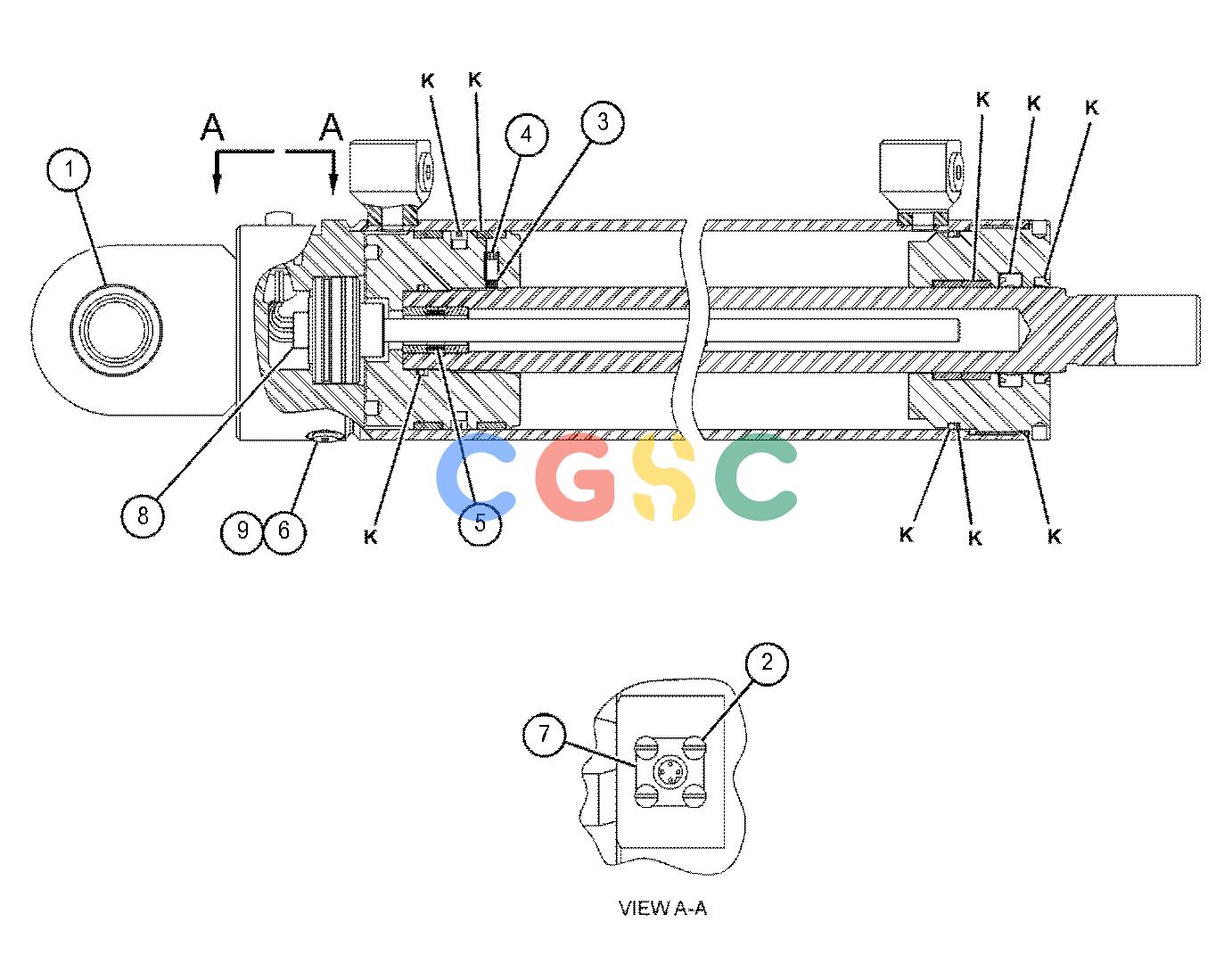

卡特零件查询（AP600F） 396-3922: CYLINDER GP-HYDRAULIC
广数供应链运营团队, 17 02月, 2025，浏览：
417 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 005-8639 | [1] | BEARING-ALIGNING | |
| 2. | 6L-7138 | [4] | SCREW(8-32X0.31-IN) | |
| 3. | 7R-8443 | [2] | PLUG-NYLON | |
| 4. | 4B-9808 | [2] | SETSCREW(1/4-20X0.5-IN) | |
| 5. | 217-3311 | [1] | MAGNET(RING) | |
| 6. | 493-4194 | [2] | PLUG-PORT | |
| 7. | 378-5551 | [1] | RECEPTACLE AS | |
| 8. | 565-3050 | [1] | SENSOR GP-POSITION(LINEAR) | |
| | 118-8586 | [1] | SEAL-O-RING | |
| | 420-5767 | [1] | RING-BACKUP | |
| 9. | 8C-8430 | [2] | SETSCREW-SOCKET(10-24X1-IN) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 443-3186 | [1] | KIT-SEAL | |
| | | | (INCLUDES PARTS MARKED "K" IN THE GRAPHIC) |
