卡特零件查询（AP600F） 455-7811: MOTOR GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
657 次

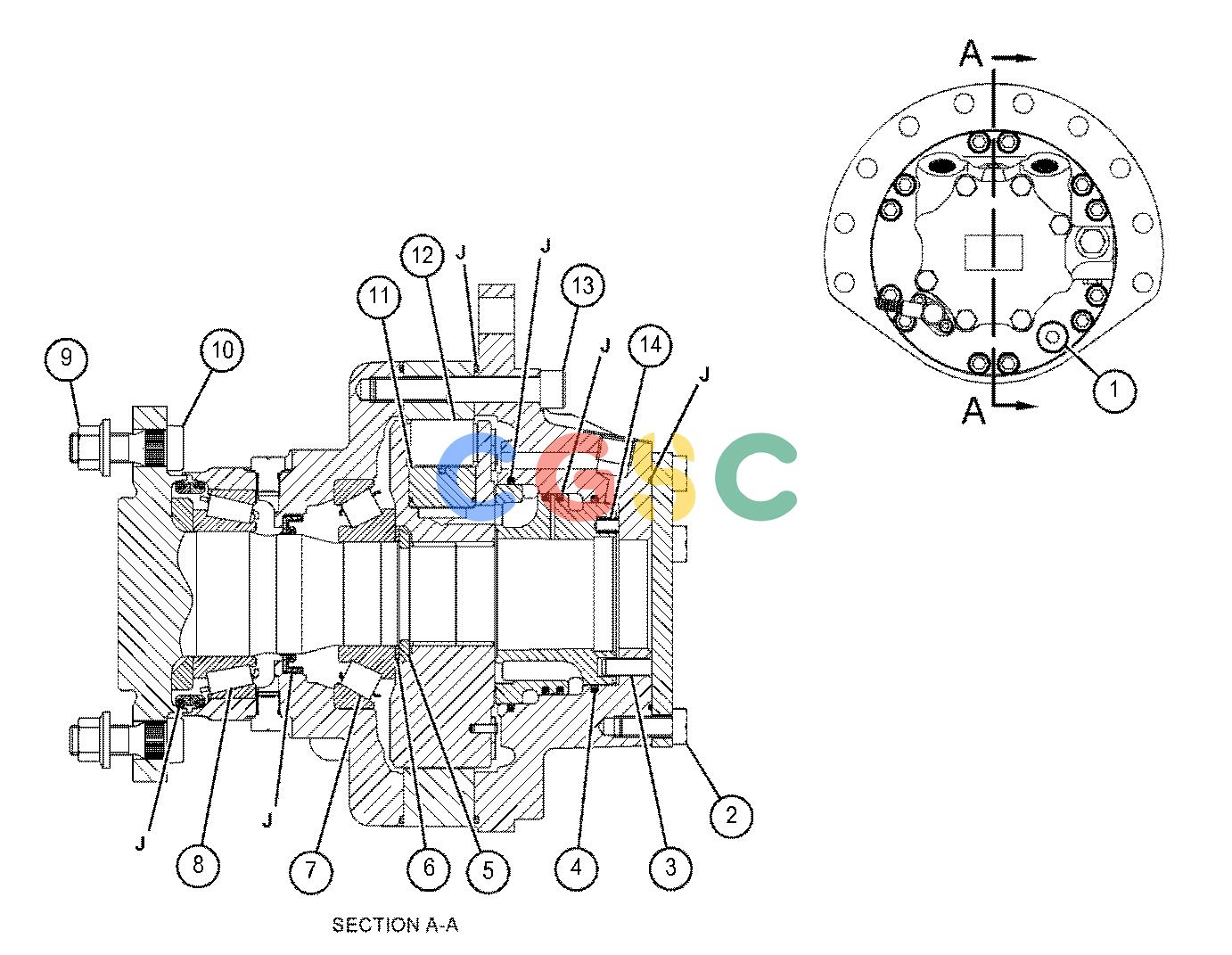

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 329-0947 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| 2. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 3. | 7X-2438 | [1] | DOWEL | |
| 4. | 488-2170 | [1] | KIT-SEAL | |
| | | | (INCLUDES PARTS MARKED 'J' IN GRAPHIC) |
| | | | (ALSO INCLUDES FACE SEAL, SQUARE SEAL, O-RING SEAL & BRAKE GASKET) |
| | 6V-0359 | [1] | SEAL-LIP TYPE | |
| | 190-6551 | [1] | SEAL-ROD | |
| | 199-7655 | [2] | SEAL | |
| | 190-6553 | [1] | SEAL-ROD | |
| | 328-8829 | [1] | SEAL-SQUARE | |
| | 328-8830 | [2] | SEAL-SQUARE | |
| | 095-1582 | [1] | SEAL-O-RING | |
| | 033-5853 | [1] | SEAL-O-RING | |
| 5. | 190-6534 | [1] | RING-SPLIT | |
| 6. | 174-3603 | [1] | SHIM(2.25-MM THK) | |
| 7. | 141-3049 | [1] | BEARING | |
| 8. | 268-1941 | [1] | BEARING-TAPERED ROLLER | |
| 9. | 140-2496 | [10] | NUT | |
| 10. | 141-3052 | [10] | STUD | |
| 11. | 328-9830 | [8] | CARRIER-ROLLER | |
| 12. | 141-3055 | [8] | ROLLER | |
| 13. | 8C-8729M | [12] | BOLT-SOCKET HEAD(M12X1.75X80-MM) | |
| 14. | 140-2502 | [9] | SPRING | |
| | M | | METRIC PART |
